Radient Brushless Motor 5065 335KV (4-7S) RDNM5065335
Brand: Radient
Part No: RDNM5065335
Expected Mon 30 Nov
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the Radient Brushless Motor 5065 335KV (4-7S)
Description

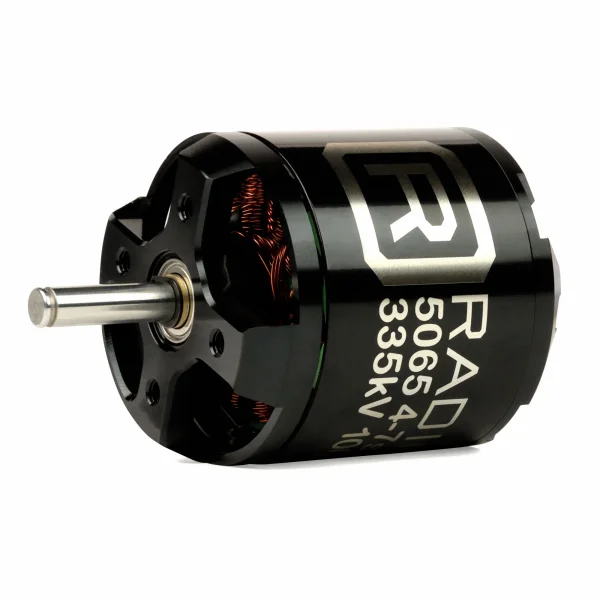

The Radient Brushless Motor 5065 335KV (4-7S), part number RDNM5065335, is a high-torque brushless outrunner motor designed for use in model aircraft. It is built around a 14 pole, 12 slot rotor that is precision balanced for smooth running, and it is wound with high purity copper. Super-thin 0.2 mm stator laminations are used to make efficient use of the power supplied.
The front and rear covers are 6061-T6 aluminium alloy, with a CNC-machined billet heatsink can, and the shaft is heavy-duty stainless steel. ABEC5 oversized bearings support the shaft at high RPM, and the motor can be mounted from either end, which gives some flexibility when planning an installation. The low 335KV rating and 4-7S range suit larger propellers.
The recommended propeller sizes are 18x8 or 19x7 on 6S, and 17x7 or 18x6 on 7S. A 100 A speed controller is recommended.
What's Included
- 1x brushless motor
- 1x shaft prop drive
- 1x can prop drive
- 1x X-type mounting bracket
- 4x short countersunk screws for the bracket
- 4x long cap head screws for the can prop drive
Specifications
- Power: 1660 W
- Recommended ESC: 100 A
- LiPo cells: 4-7S
- Shaft diameter: 6 mm
- Bullet connector: 4 mm
- Colour: Black
Secured by Stripe
Radient Brushless Motor 5065 335KV (4-7S) Manuals & Guides
Manuals & Guides
Specifications
Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It's a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.
table { font-family: Arial, sans-serif; border-collapse: collapse; width: 100%; font-size: 14px; } td, th { border: 1px solid #dddddd; text-align: left; padding: 8px; } tr:nth-child(even) { background-color: #f9f9f9; } th { background-color: #4CAF50; color: white; position: sticky; top: 0; } .series-row { background-color: #e2e2e2 !important; font-weight: bold; } Brushless Motor Specifications| 2822 1600KV | 180 | 20 | 2-3S | 3.0 | 3.5 | 30 | 2S: 8x4 / 9x6 | 3S: 7x4 / 8x4 |
| 2822 2300KV | 180 | 20 | 2-3S | 3.0 | 3.5 | 30 | 2S: 6x3 / 7x3.5 | 3S: 5x4 / 6x3 |
| 2826 1000KV | 220 | 20 | 2-3S | 3.0 | 3.5 | 45 | 2S: 10x6 / 11x6 | 3S: 9x6 / 10x5 |
| 2826 1300KV | 240 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 9x6 / 10x5 | 3S: 8x4 / 9x5 |
| 2826 1900KV | 250 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 8x4 / 9x5 | 3S: 7x4 / 8x4 |
| 2826 2200KV | 270 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 6x4 / 7x3 | 3S: 5x4 / 6x3 |
| 2830 1000KV | 260 | 30 | 2-3S | 3.0 | 3.5 | 57 | 2S: 10x6 / 11x5.5 | 3S: 9x6 / 10x5 |
| 2830 1300KV | 300 | 30 | 2-3S | 3.0 | 3.5 | 57 | 2S: 9x6 / 10x6 | 3S: 8x6 / 9x6 |
| 2836 880KV | 340 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 10x6 / 11x5.5 | 4S: 9x6 / 10x6 |
| 2836 1100KV | 380 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x6 |
| 2836 1200KV | 390 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x6 |
| 3530 1100KV | 310 | 50 | 2-4S | 4.0 | 3.5 | 109 | 3S: 10x6 / 11x5 | 4S: 9x6 / 10x6 |
| 3536 1050KV | 500 | 60 | 2-4S | 4.0 | 3.5 | 109 | 3S: 10x6 / 11x5 | 4S: 9x6 / 10x6 |
| 3536 1300KV | 680 | 60 | 2-4S | 4.0 | 3.5 | 109 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x5 |
| 3536 1500KV (E2K) | 750 | 80 | 2-4S | 4.0 | 3.5 | 109 | 3S: 8x6 / 9x5 | 4S: 8x4 / 8x5 |
| 3542 1000KV | 750 | 60 | 2-4S | 5.0 | 3.5 | 132 | 3S: 11x5 / 12x6 | 4S: 8x7 / 9x8 |
| 3542 1250KV | 850 | 80 | 2-4S | 5.0 | 3.5 | 132 | 3S: 9x6 / 10x5 | 4S: 8x4 / 9x5 |
| 3548 790KV | 840 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 11x7 / 13x6 | 4S: 9x7 / 10x8 |
| 3548 900KV | 1000 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 10x7 / 12x7 | 4S: 9x6 / 10x7 |
| 3548 1100KV | 1100 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 11x5.5 / 11x6 | 4S: 8x6 / 9x6 |
| 4250 800KV | 1250 | 80 | 2-5S | 5.0 | 4.0 | 205 | 3S: 13x6 / 14x7 | 5S: 12x8 / 13x7 |
| 4260 600KV | 1500 | 80 | 3-5S | 5.0 | 4.0 | 275 | 4S: 12x6 / 13x6 | 5S: 11x6 / 12x6 |
| 5045 720KV | 860 | 80 | 3-5S | 6.0 | 4.0 | 195 | 4S: 13x6 / 14x6 | 5S: 12x6 / 13x6 |
| 5055 570KV | 1550 | 80 | 4-6S | 6.0 | 4.0 | 275 | 4S: 14x7 / 15x6 | 6S: 13x6 / 14x5 |
| 5055 760KV | 1660 | 100 | 3-5S | 6.0 | 4.0 | 275 | 4S: 13x6 / 14x6 | 5S: 12x6 / 13x6 |
| 5065 335KV | 1660 | 100 | 4-7S | 6.0 | 4.0 | 375 | 6S: 18x8 / 19x7 | 7S: 17x7 / 18x6 |
| 5065 435KV | 1750 | 100 | 4-6S | 6.0 | 4.0 | 375 | 4S: 18x7 / 19x6 | 6S: 17x6 / 18x5 |
| 6354 200KV | 2210 | 100 | 4-10S | 8.0 | 4.0 | 480 | 8S: 19x12 / 22x12 | 10S: 18x12 / 20x10 |
Radient Brushless Motor 5065 335KV (4-7S) Key Features:
- 14 Pole 12 slot hi-torque rotor.
- CNC-machined 6061-T6 billet heatsink can.
- High purity, maximum efficiency copper windings.
- High RPM ABEC5 oversized bearings.
- Precision balanced rotor offers smooth, reliable performance.
- Super-thin (0.2mm) stator laminations.
- Precision engineered for maximum energy conversion.
What's in the Box:
- 1x Radient high-torque brushless motor.
- 1x Shaft prop drive.
- 1x Can prop drive.
- 1x X-type mounting bracket.
- 4x Short countersunk screws for attaching the bracket to the motor.
- 4x Long cap head screws for can prop drive installation.
Radient Brushless Motor 5065 335KV (4-7S) Tech Specs:
- Weight: 507g / 17.88oz
- Shipping Weight: 0.51kg / 1.12lbs
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Radient
- Part No: RDNM5065335
- Barcode: 5051121278200
