Radient Brushless Motor 6354 200KV (4-10S)
Radient Brushless Motor 6354 200KV (4-10S)
Radient Brushless Motor 6354 200KV (4-10S)
Radient Brushless Motor 6354 200KV (4-10S)
Radient Brushless Motor 6354 200KV (4-10S)

Radient Brushless Motor 6354 200KV (4-10S) RDNM6354200

Brand: Radient

Part No: RDNM6354200

£74.75 RRP £83.99
Pre-Order

Finance options available at checkout.

Popular with customers who buy products like the Radient Brushless Motor 6354 200KV (4-10S)

Description

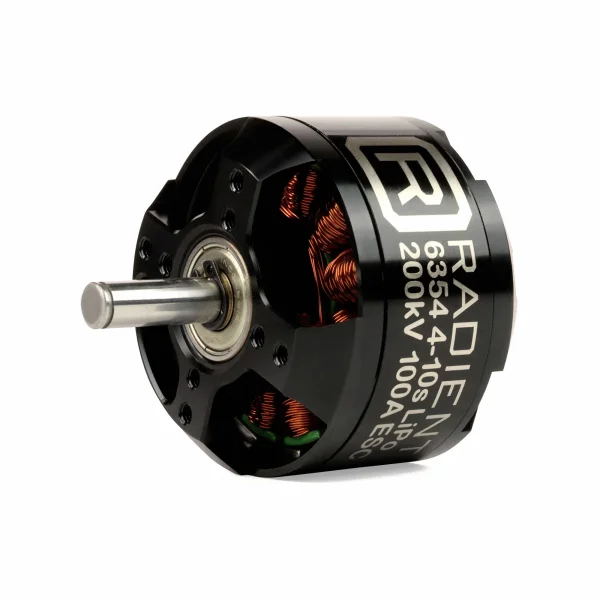

The Radient Brushless Motor 6354 200KV (4-10S), part number RDNM6354200, is a high-torque outrunner brushless motor designed for model aircraft and intended for use with 4 to 10 cell LiPo batteries.

The motor is built around a 14 pole, 12 slot rotor that is precision balanced for smooth running. The stator uses super-thin 0.2 mm laminations with high purity copper windings, and the rotor turns on oversized ABEC5 bearings. The heatsink can is CNC-machined from 6061-T6 aluminium billet, and the shaft is stainless steel. Radient designed the range to turn large propellers, and mounting is possible from either end of the motor.

At 200KV, this is a low-revving, high-voltage motor. Radient lists a power rating of 2210 W with a recommended 100 A ESC. For propellers, the manufacturer suggests 19x12 or 22x12 on 8S, and 18x12 or 20x10 on 10S. The finish is black, the connector is a 4 mm bullet type, and the age recommendation is 14+.

What's Included

  • Radient brushless motor
  • Shaft prop drive
  • Can prop drive

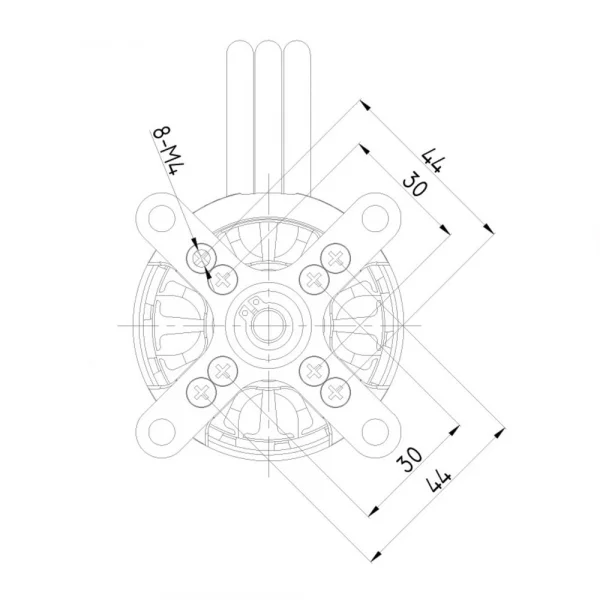

  • X-type mounting bracket
  • 4 short countersunk screws for fitting the bracket to the motor
  • 4 long cap head screws for installing the can prop drive

Specifications

  • Motor size: 6354
  • Speed constant: 200KV
  • LiPo cells: 4-10S
  • Power: 2210 W
  • Recommended ESC: 100 A
  • Shaft diameter: 8 mm
  • Bullet connector: 4 mm
Secure Payments

Secured by Stripe

Radient Brushless Motor 6354 200KV (4-10S) Manuals & Guides

Specifications

Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It's a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.

table { font-family: Arial, sans-serif; border-collapse: collapse; width: 100%; font-size: 14px; } td, th { border: 1px solid #dddddd; text-align: left; padding: 8px; } tr:nth-child(even) { background-color: #f9f9f9; } th { background-color: #4CAF50; color: white; position: sticky; top: 0; } .series-row { background-color: #e2e2e2 !important; font-weight: bold; } Brushless Motor Specifications Motor Model Watts (W) Rec'd ESC (A) LiPo (Cells) Shaft Dia (mm) Bullet (mm) Weight (g) Prop Sizes (Recommended)
2822 1600KV180202-3S3.03.5302S: 8x4 / 9x6 | 3S: 7x4 / 8x4
2822 2300KV180202-3S3.03.5302S: 6x3 / 7x3.5 | 3S: 5x4 / 6x3
2826 1000KV220202-3S3.03.5452S: 10x6 / 11x6 | 3S: 9x6 / 10x5
2826 1300KV240302-3S3.03.5452S: 9x6 / 10x5 | 3S: 8x4 / 9x5
2826 1900KV250302-3S3.03.5452S: 8x4 / 9x5 | 3S: 7x4 / 8x4
2826 2200KV270302-3S3.03.5452S: 6x4 / 7x3 | 3S: 5x4 / 6x3
2830 1000KV260302-3S3.03.5572S: 10x6 / 11x5.5 | 3S: 9x6 / 10x5
2830 1300KV300302-3S3.03.5572S: 9x6 / 10x6 | 3S: 8x6 / 9x6
2836 880KV340302-4S4.03.5673S: 10x6 / 11x5.5 | 4S: 9x6 / 10x6
2836 1100KV380302-4S4.03.5673S: 9x6 / 10x6 | 4S: 8x6 / 9x6
2836 1200KV390302-4S4.03.5673S: 9x6 / 10x6 | 4S: 8x6 / 9x6
3530 1100KV310502-4S4.03.51093S: 10x6 / 11x5 | 4S: 9x6 / 10x6
3536 1050KV500602-4S4.03.51093S: 10x6 / 11x5 | 4S: 9x6 / 10x6
3536 1300KV680602-4S4.03.51093S: 9x6 / 10x6 | 4S: 8x6 / 9x5
3536 1500KV (E2K)750802-4S4.03.51093S: 8x6 / 9x5 | 4S: 8x4 / 8x5
3542 1000KV750602-4S5.03.51323S: 11x5 / 12x6 | 4S: 8x7 / 9x8
3542 1250KV850802-4S5.03.51323S: 9x6 / 10x5 | 4S: 8x4 / 9x5
3548 790KV840802-4S5.03.51723S: 11x7 / 13x6 | 4S: 9x7 / 10x8
3548 900KV1000802-4S5.03.51723S: 10x7 / 12x7 | 4S: 9x6 / 10x7
3548 1100KV1100802-4S5.03.51723S: 11x5.5 / 11x6 | 4S: 8x6 / 9x6
4250 800KV1250802-5S5.04.02053S: 13x6 / 14x7 | 5S: 12x8 / 13x7
4260 600KV1500803-5S5.04.02754S: 12x6 / 13x6 | 5S: 11x6 / 12x6
5045 720KV860803-5S6.04.01954S: 13x6 / 14x6 | 5S: 12x6 / 13x6
5055 570KV1550804-6S6.04.02754S: 14x7 / 15x6 | 6S: 13x6 / 14x5
5055 760KV16601003-5S6.04.02754S: 13x6 / 14x6 | 5S: 12x6 / 13x6
5065 335KV16601004-7S6.04.03756S: 18x8 / 19x7 | 7S: 17x7 / 18x6
5065 435KV17501004-6S6.04.03754S: 18x7 / 19x6 | 6S: 17x6 / 18x5
6354 200KV22101004-10S8.04.04808S: 19x12 / 22x12 | 10S: 18x12 / 20x10
"

Radient Brushless Motor 6354 200KV (4-10S) Key Features:

  • 14 Pole 12 slot hi-torque rotor.
  • CNC-machined 6061-T6 billet heatsink can.
  • High purity, maximum efficiency copper windings.
  • High RPM ABEC5 oversized bearings.
  • Precision balanced rotor offers smooth, reliable performance.
  • Super-thin (0.2mm) stator laminations.
  • Precision engineered for maximum energy conversion.

What's in the Box:

  • 1x Radient high-torque brushless motor.
  • 1x Shaft prop drive.
  • 1x Can prop drive.
  • 1x X-type mounting bracket.
  • 4x Short countersunk screws for attaching the bracket to the motor.
  • 4x Long cap head screws for can prop drive installation.

Radient Brushless Motor 6354 200KV (4-10S) Tech Specs:

  • Weight: 581g / 20.49oz
  • Shipping Weight: 0.58kg / 1.28lbs
  • Connector: Bullet
  • Age Recommendation: 14+
  • Colour: Black


    Key Info:
    • Brand: Radient
    • Part No: RDNM6354200
    • Barcode: 5051121278170
