RC4WD 1:10 Warn 8274 Winch

RC4WD 1/10 Warn 8274 Winch

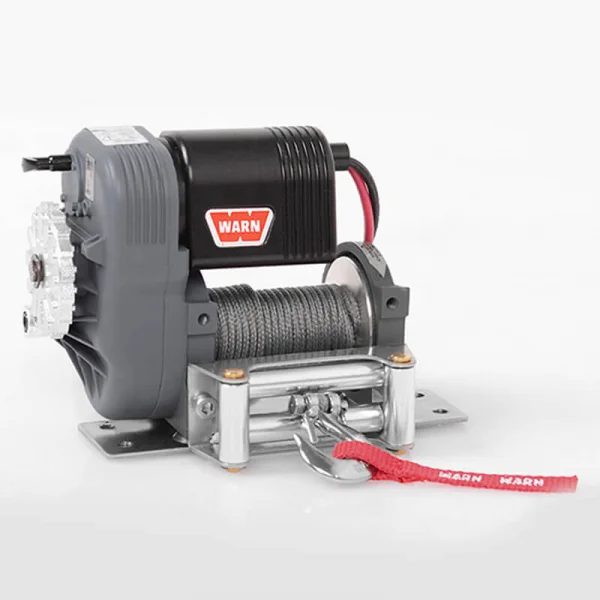

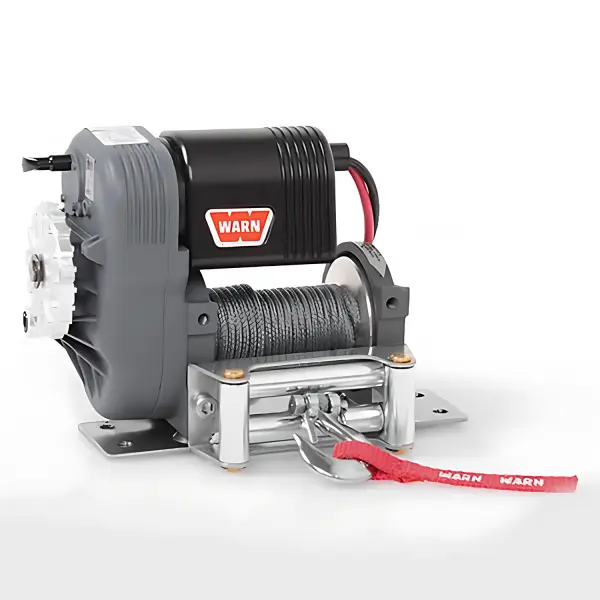

Introducing our all new RC4WD 1/10 Warn 8274 Winch. This winch offers ultra scale looks and superior quality and craftsmanship. This winch is Officially Licensed by Warn, one of the most iconic names in off-road! This winch is packed full of great features including heavy duty pulling strength, free spool, and unmatched detail.
Specifications:

• CNC Machined
• Billet and Cast Aluminum
• Working Spring Loaded Warn Hook
• Synthetic Winch Rope
• Highly Detailed
• Free Spool
• Full Warn Decals Installed
• Voltage: 6v to 11.1v
• Can operate on 3 Cell Lipo
• 3.28ft / 1.0m Rope Pre-Installed
• Load Limits: Dead Lift 50lbs / 22.6kgs
• Load Limits: Rolling Drag 70lbs / 31.7kgs
• Winch Rope Load Limits: Dead Lift 25lbs / 11.3kgs
• Winch Rope Load Limits: Rolling Drag 37lbs / 16.8kgs
• 30 Day Warranty

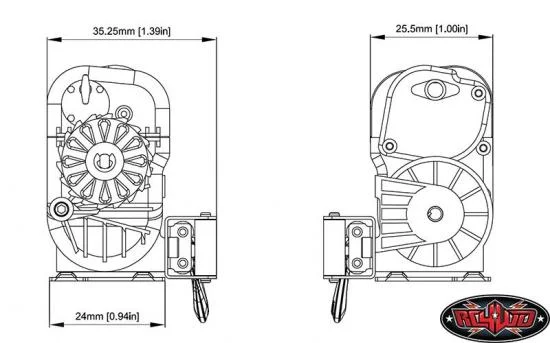

• Length: 1.40in / 35.6mm
• Width: 2.56in / 65.0mm
• Height: 1.77in / 45.0mm
• Weight: 3.28oz / 93g

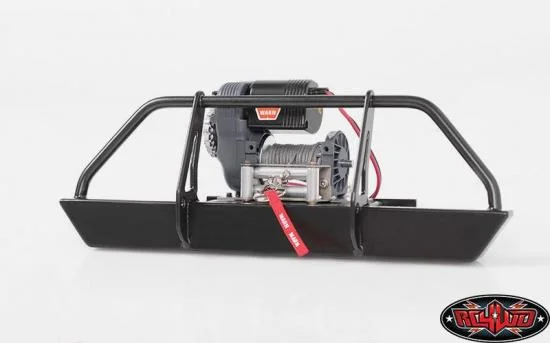

Shown installed with Tough Armor Front Bumper for G2 Cruiser (Z-S1606) for example (Not Included)
Shown installed with Tough Armor Front Bumper for G2 Cruiser (Z-S1606) and RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051) for example (Not Included)

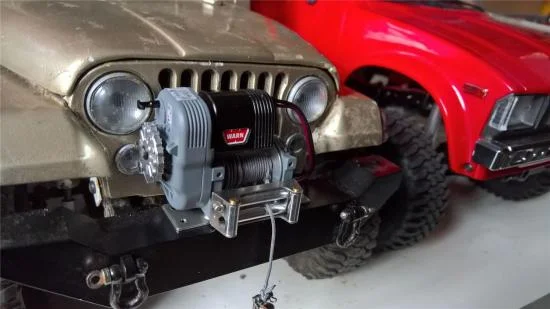

Click here to learn more about the Z-E0075 with Team Driver Daniel's TF2 SWB Jeep CJ shown below:
Scale garage photo provided by customer
Image provided by customer.
What's Included:

• 1x RC4WD 1/10 Warn 8274 Winch
• 4x M2.5 x 4mm SHCS (Black) (Z-S0760)
• 4x M2.5 x 6mm SHCS (Black) (Z-S0855)
• 1x RC4WD Warn Winch Pull Tags (Z-S1660)
• 1x Warn Decal Sheet Set

Required Parts:

• RC4WD Warn 1/10 Wireless Remote/Receiver Winch Controller Set (Z-S1092)
• RC4WD Wired Winch Control Unit (Z-S1089)

Optional Parts:

• RC4WD ARB Winch Snatch Block (Z-S0341)
• RC4WD Warn 1/10 Premium Winch Hook (Z-S1551)
• RC4WD Foldable Winch Anchor (Black) (Z-S1623)
• RC4WD Poison Spyder Fairlead for Warn 8274 Winch (Z-S1761)

Replacement Parts:

• 1/10 Warn Hook (Z-S1011)
• Synthetic Winch Rope (Z-S0038)
• RC4WD Warn Winch Pull Tags (Z-S1660)
• Replacement Motor/Gearbox for 1/10 Warn 8274 Winch (Z-E0097)

Replacement Hardware:

• M2 x 6mm BHCS (Black) (Z-S0933)
• M2 x 8mm BHCS (Black)
• M2 x 10mm BHCS (Black) (Z-S0911)
• M2 x 5mm BHCS (Black)
• M2 x 5mm FHCS (Silver)
• M1.6 x 5mm BHCS (Black)

Notes:

• Fits RC4WD Universal Winch Mounting Plates (Z-S1609). This allows for you to get the winch mounted in just the right spot to prevent it from hitting other items on your build.
• The side gear lock is only for looks and is not to be used for the operation of the winch. Be sure that its not in contact with the gear or it can cause damage to your winch.
• This winch is very powerful. The winch line will break before you are able to max out the winches capacity.
• Fits RC4WD Rock Hard 4x4 Full Width Front Bumper for Axial SCX10 Jeep (Z-S1338) (Remove the fairlead)
• Fits RC4WD Warn Rock Crawler Front Winch Bumper for Trail Finder 2 (Z-S1590) (Remove the fairlead)
• Fits Tough Armor Front Bumper for G2 Cruiser (Z-S1606)
• Fits RC4WD Rampage Front Double Tube Bumper with Hoop for Trail Finder 2 SWB (Z-S1558)
• Fits Tough Armor Tube Front Winch Bumper for Vaterra Ascender (Z-S1575)
• Fits RC4WD Marlin Crawler Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
• Fits RC4WD Jeep JK Rampage Recovery Bumper to fit Axial SCX10 Chassis (Z-S0434)
• Fits Tough Armor Competition Stinger Bumper for Axial SCX10 (Z-S0640)
• Fits Tough Armor Wide Winch Bumper with Winch Bar (Z-S1162)
• Fits Tough Armor Winch Bumper with Grill Guard for Axial Jeep Rubicon (Z-S1193)
• Fits Tough Armor Stubby Front Bumper to fit Axial SCX10 (Z-S0641)
• Fits RC4WD Rampage Front Recovery Bumper (Z-S0997)
• Fits RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496) (Remove the fairlead)
• Fits Hitch Mount Portable Winch Mounting System (Z-S1284)
• Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries.

Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries and used under license to RC4WD.

This product has been tested and approved by the Recon G6. It is Recon G6 Certified.

• Brand: RC4WD
• Part No: Z-E0075
• Barcode: 639302606445
