RC4WD 1:10 Warn 9.5CTI-S Winch

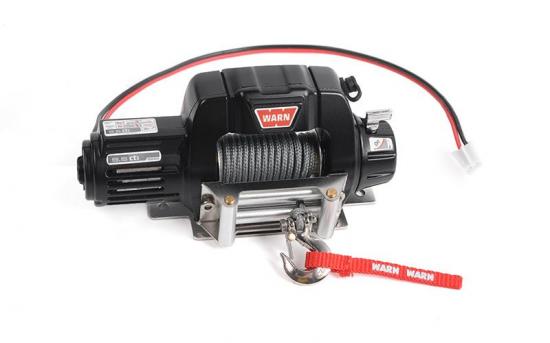

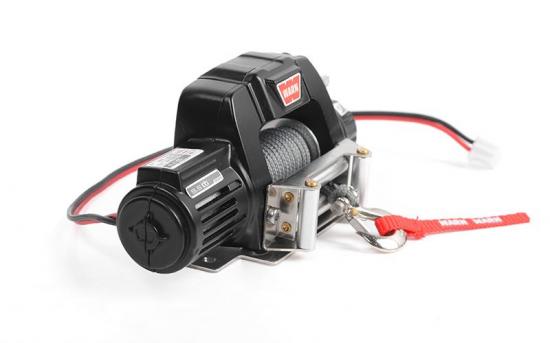

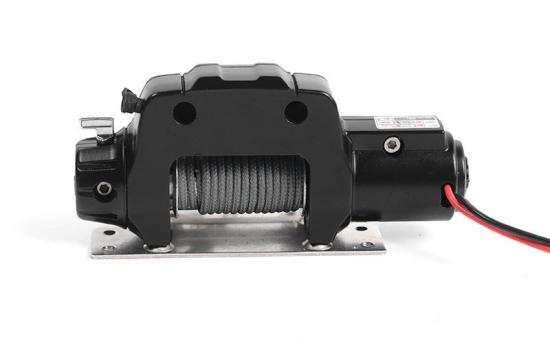

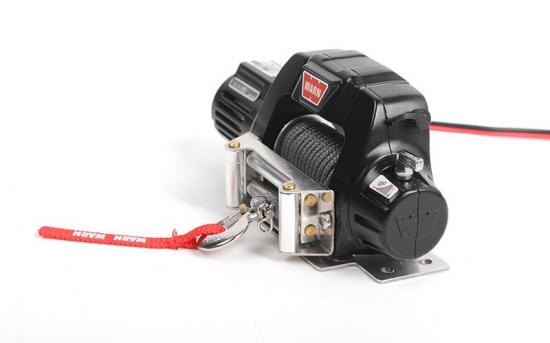

The RC4WD 1:10 Warn 9.5cti-s Winch delivers ultra-scale looks and proven performance in a compact package. Officially licensed by Warn, this highly detailed unit combines a cast zinc case, stamped steel components and pre-applied Warn decals for authentic appearance on scale crawlers and trail trucks. Part number Z-E0119.

Engineered for dependable pulling power, the winch operates from 6V to 11.1V (3S LiPo capable) and features a synthetic rope with a working spring-loaded Warn hook. It is easily rebuildable and designed with the same mounting locations as the Bulldog winch for straightforward installation on many custom builds.

Features

• Cast zinc case and stamped steel components
• Officially licensed by Warn with full decals installed

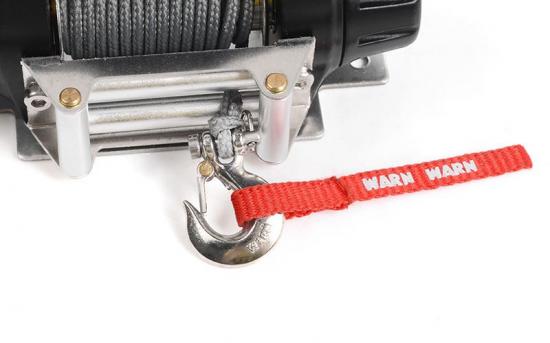

• Working spring-loaded Warn hook
• Synthetic winch rope, 3ft/0.9m pre-installed
• Highly detailed, ultra-scale appearance
• Voltage range: 6V to 11.1V (3S LiPo capable)
• Easily rebuildable design
• Same mounting locations as Bulldog winch (suggested compatibility)
• Load limits: dead lift 6.6lb/3kg; rolling drag 9lb/4.1kg
• 30 day warranty

Specifications

• Length: 2.98in / 75.85mm
• Total width: 1.16in / 29.62mm
• Height: 1.39in / 35.35mm
• Weight: 3.39oz / 96.2g
• Rope length: 3ft / 0.9m (synthetic)
• Voltage: 6V to 11.1V (can operate on 3 cell LiPo)
• Load limits: dead lift 6.6lb / 3kg; rolling drag 9lb / 4.1kg

What’s Included

• 1x RC4WD 1/10 Warn 9.5cti-s Winch
• 1x RC4WD Warn Winch Pull Tag
• 4x M2.5x4mm SHCS (Black) (Z-S0760)
• 4x M2.5x6mm SHCS (Black) (Z-S0855)
• 1x Warn Decal Sheet

Required Parts

• RC4WD Warn 1/10 Wireless Remote/Receiver Winch Controller Set (Z-E0130)
• RC4WD Wired Winch Control Unit (Z-S1089)

Optional Parts (Suggested Compatibility)

• RC4WD ARB Winch Snatch Block (Z-S0341)
• RC4WD 1/10 Warn Hawse Polished Aluminum Fairlead (Z-S1310)
• Winch Mount for Axial Wraith (Z-S1307)
• RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
• RC4WD 1/10 Viking Roller Fairlead for Warn 9.5cti Winch (Z-S1498)
• RC4WD Warn 1/10 Premium Winch Hook (Z-S1551)
• RC4WD Warn Rock Crawler Front Winch Bumper for Trail Finder 2 (Z-S1590) (With Mount Plate Reversed)
• Metal Front Winch Bumper for Traxxas TRX-4 Land Rover Defender D110 (VVV-C0469)
• RC4WD Warn Epic Sidewinder (Chrome) (Z-S1997)
• RC4WD Warn Epic Sidewinder (Black) (Z-S1998)
• RC4WD WARN Epic Hyperlink (Chrome) (Z-S1999)
• RC4WD WARN Epic Hyperlink (Black) (Z-S2000)

Replacement Parts

• Replacement Motor/Gearbox 1/10 Warn 9.5cti 1/10 Winch (Z-E0051)
• 1/10 Warn Hook (Z-S1011)
• Synthetic Winch Rope (Z-S0038)
• RC4WD Warn Winch Pull Tags (Z-S1660)

Replacement Hardware

• 4x M2x5mm FHCS (Silver)
• 2x M2x4mm SHCS (Silver) (Z-S0927)
• 2x M2x6mm SHCS (Silver) (Z-S0994)

Notes

• This winch requires a control unit; a wired option (using a radio third channel) and a wireless option (direct to battery) are available.
• This product is not waterproof; user waterproofing may void the manufacturer’s warranty.
• Shown installed on RC4WD Gelande II RTR with 2015 Land Rover Defender D90 Body Set, Front Winch Bumper with Stinger for Defender 90 and King Kong Tow Shackle for example (not included; suggested compatibility).
• Same mounting points as RC4WD Bulldog winches (suggested compatibility).
• Dead lift is lifting from a higher position with no rolling assistance; rolling drag uses the vehicle’s rolling force to assist the pull.
• For warnings, precautions, safety and damage limits, refer to the manufacturer.

Warranty

• Product is free from defects in materials and workmanship and fully functional when new.
• Overloading can damage the gearbox or motor and is not covered under warranty; replacement motor/gearbox units and instructions are available.
