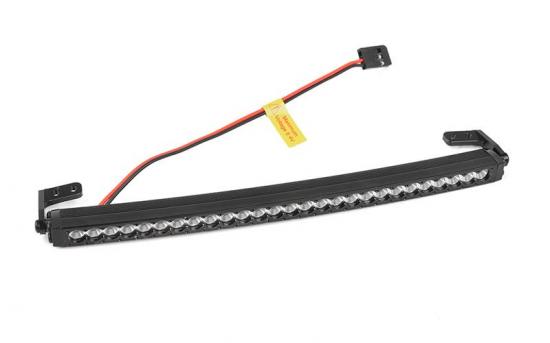

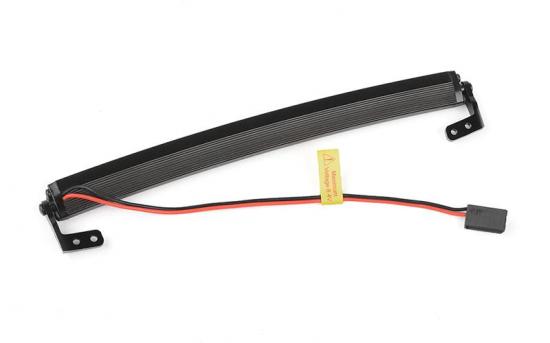

RC4WD Baja Designs Arc Light Bar TRX-4 Bronco/K5 – Z-E0129

RC4WD has teamed up with Baja Designs to bring a highly detailed Arc Light Bar to your scale rig. Featuring a cast-moulded housing and 27 super-bright LEDs, the Z-E0129 delivers robust performance and authentic looks for trail and crawler builds.

With reversible, adjustable L-brackets, a standard receiver plug, and the ability to connect to an extra receiver channel, installation is straightforward across a wide range of bodies and roof racks.

Specifications

• Cast molded housing

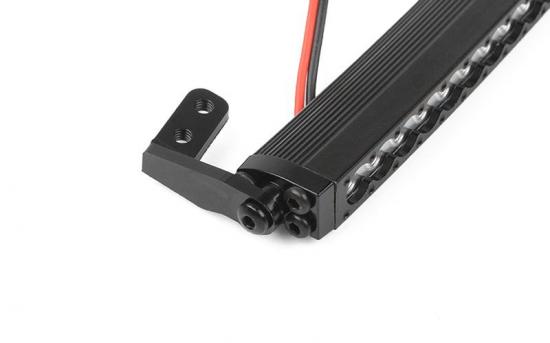

• Reversible "L" brackets to fit many applications
• Adjustable "L" brackets for rotating light
• 27 individual LED bulbs
• Super bright lighting
• Vented on side to dissipate heat
• Capable of 11.1 volts and 7.4 volts
• Standard receiver plug
• Connects to extra channel on receiver
• 2mm mounting holes
• Overall length: 6.53in / 166mm
• Light bar length: 6.10in / 155mm
• Overall height: 1.18in / 30mm
• Light bar height: 0.51in / 13mm
• Weight: 1.11oz / 31.6g

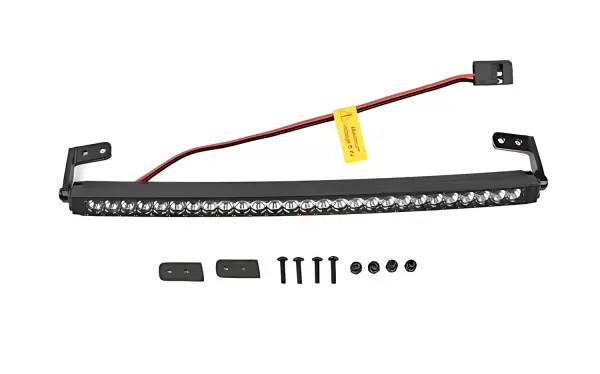

What’s Included

• 1x RC4WD Baja Designs Arc Light Bar for Traxxas TRX-4 Bronco Ranger XLT / Chevy K5 Blazer
• 4x M2 x 8mm Steel Button Head Cap Screws (Black)
• 4x Nylock Nuts M2 (Black)
• 2x Foam Cushions
• 1x Baja Designs Decal Sheet

Replacement Hardware

• Steel Button Head Cap Screws M2 x 6mm (Z-S0933)
• Steel Button Head Cap Screws M2.5 x 6mm (Z-S0764)
• Steel Button Head Cap Screws M2 x 8mm (Z-S1800)
• Nylock Nuts M2 (Black) (Z-S0906)

Important Notes

• WARNING: This light comes with a voltage regulator. If you do not use this you will damage the light and void the warranty.
• WARNING: Do not exceed 8.4 volts to power this light bar. Overpowering the light bar will damage it and will void the warranty.
• Voltage over 11.1V will damage the light bar.

Suggested Compatibility

• Traxxas TRX-4 '79 Bronco Ranger XLT
• Traxxas TRX-4 '79 Chevrolet K5 Blazer
