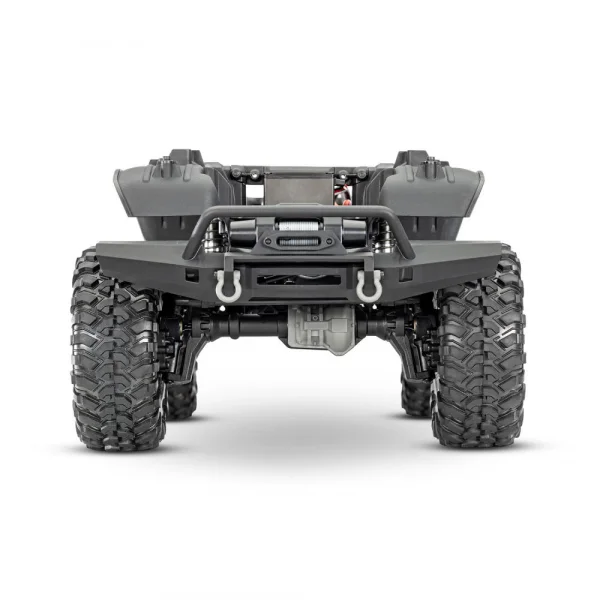

Traxxas TRX-4 Clipless Unassembled Kit

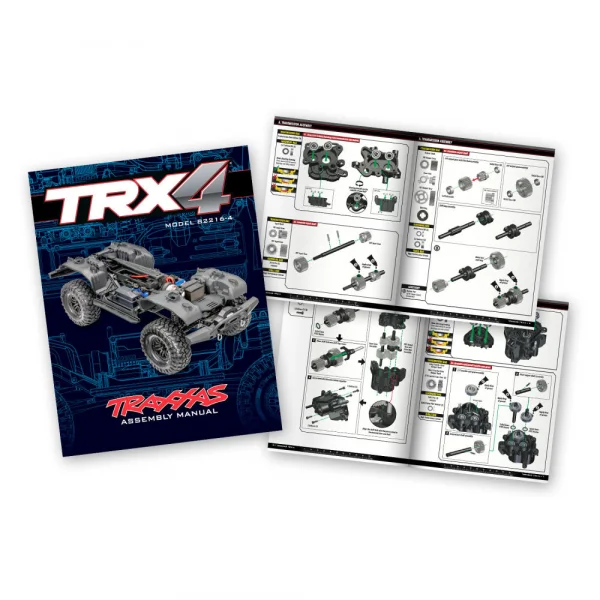

Build your own TRX-4 with the TRX-4 Unassembled Kit (#82016-4) version. The kit includes the powerful TQi radio system and the XL-5HV power system. The kit is easy and fun to build with the detailed illustrated instructions. To speed up the build, key parts like shocks and linkages are professionally pre-assembled at the factory.

Ultimate Ground Clearance

The TRX-4 Scale and Trail Crawler is equipped right out of the box with Traxxas game-changing portal axle set.

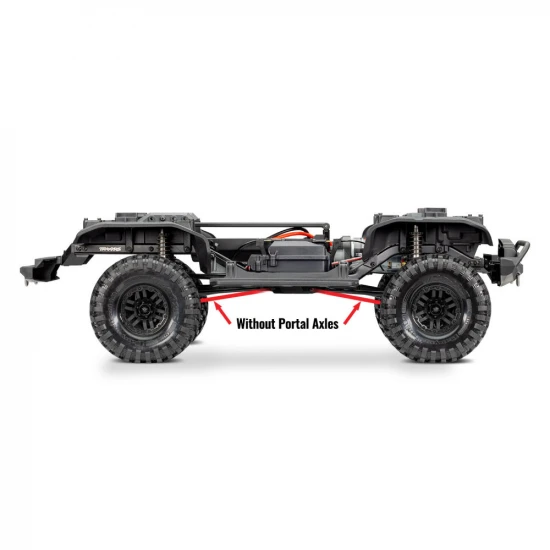

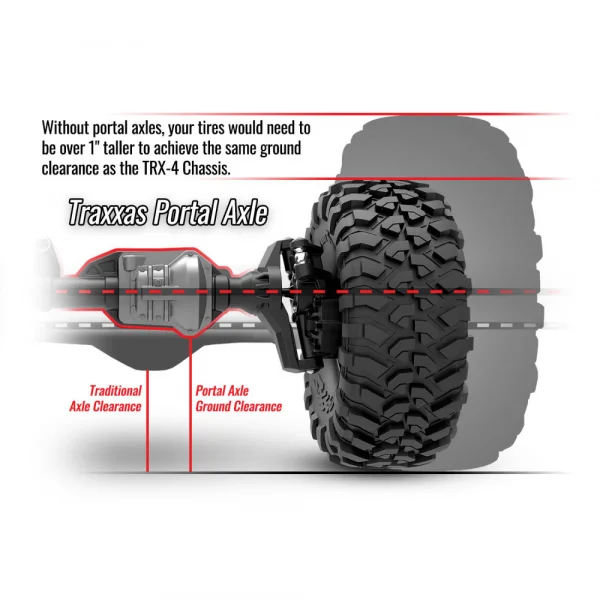

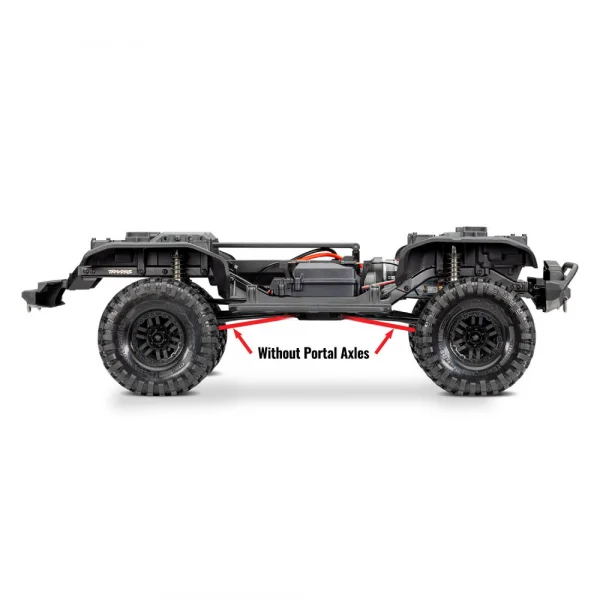

Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. In order to achieve the same clearance with straight axles (and not get stuck), your tires would have to be over an inch taller than the TRX-4's tires. Straddling boulders with ease, the TRX-4 chassis definitely takes the path less travelled and simply leaves all the others behind.

Torque Twist Eliminated

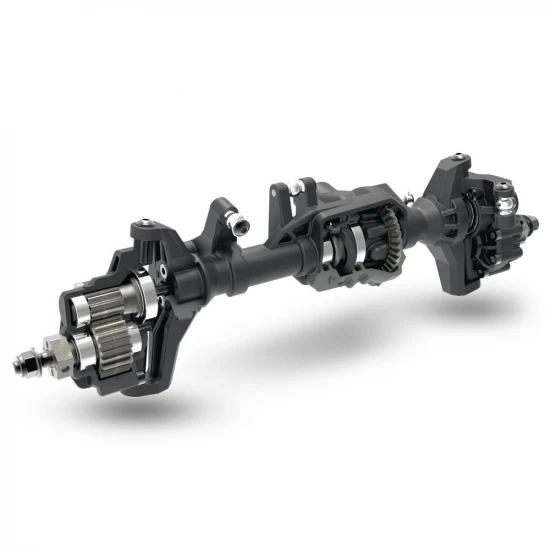

The portal axles use gear reduction right at the wheels that dramatically reduces undesirable torque twist. Total axle gear reduction is over twice non-portal designs. The Titan 550 motor torque is translated into straight, powerful, forward motion, rather than wasted energy twisting your rig right off the rocks

Improved Geometry

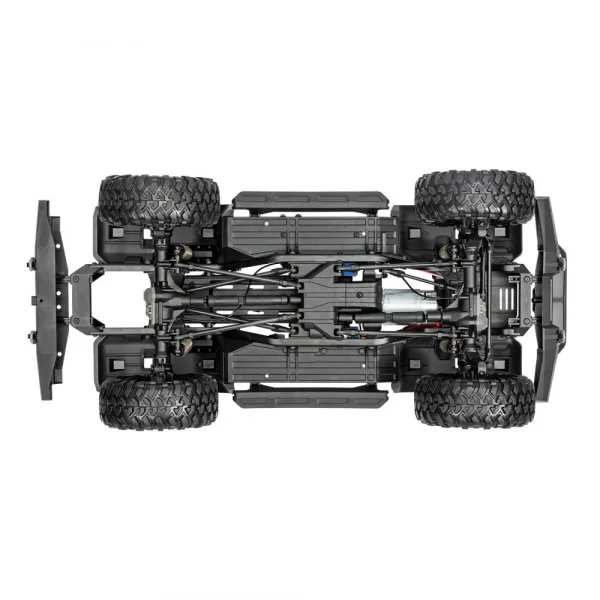

Portal axle geometry raises the axle link mounts and center driveshaft, greatly reducing critical driveshaft and suspension link angles. This means less strain on the driveshafts, and the higher suspension links provide greater clearance with less scraping and dragging across the rocks. The steering drag link and tie rod are also raised up and out of harm's way.

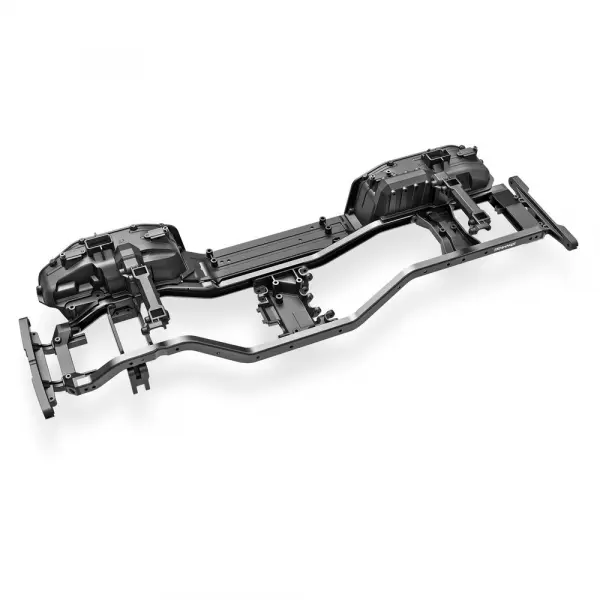

Rigid Steel Frame
A heavy-duty formed-steel ladder frame with molded cross members creates an extremely rigid backbone that lets the suspension do the work it was designed to do. You’ll feel the difference on trails where the elimination of chassis flex allows for precise wheel placement when navigating technical terrain.

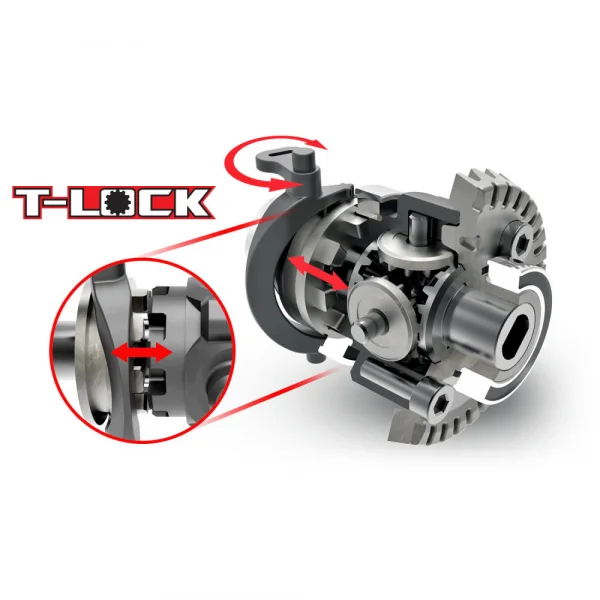

Remote Locking Differentials
Traxxas gives you the versatility to lock and unlock the front and rear differentials to suit your driving needs directly from your transmitter. Leave the differentials unlocked for relaxed driving on the trail with smooth, tight turning and better handling at high speeds. When the trail gets technical, lock the front and rear differentials, or just the front, for superior grip over extreme terrain. Our patented design has been proven rugged and capable in the Traxxas Summit. New sleeved micro cables control the differential action for scale appearance, without limiting the huge suspension articulation.

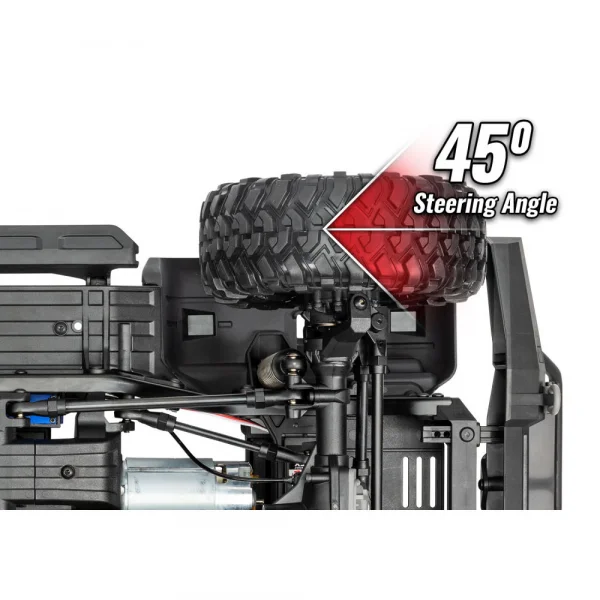

45° Steering Angle
Traditional crawlers sacrifice turning radius for traction. The TRX-4’s remote locking differentials disengage to take full advantage of its superior 45 degree steering angle. Once you clear the obstacle, re-engage the differentials for ultimate traction.

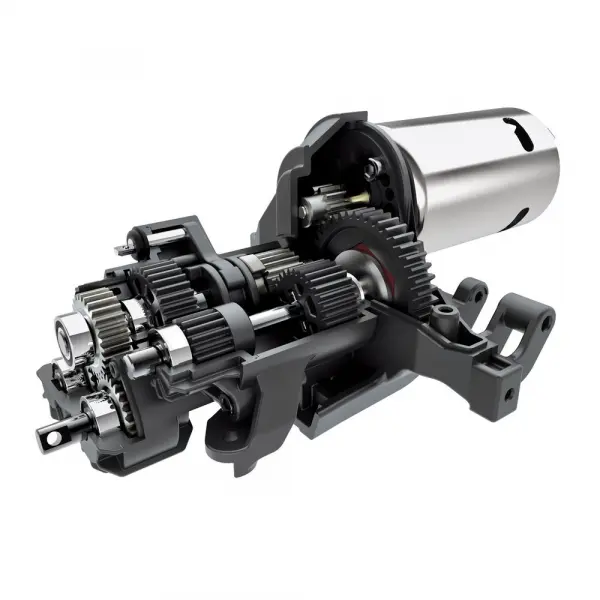

Hi/Low Range Transmission
When the going gets tough, use your transmitter to shift into low range for incredible 4-wheel drive pulling torque. Shift into high range for blasting down the trail. The plush suspension design absorbs rough terrain with ease and delivers outstanding scale appearance. Unmatched versatility makes the TRX-4 Scale and Trail Crawler adaptable to just about any situation or driving style.

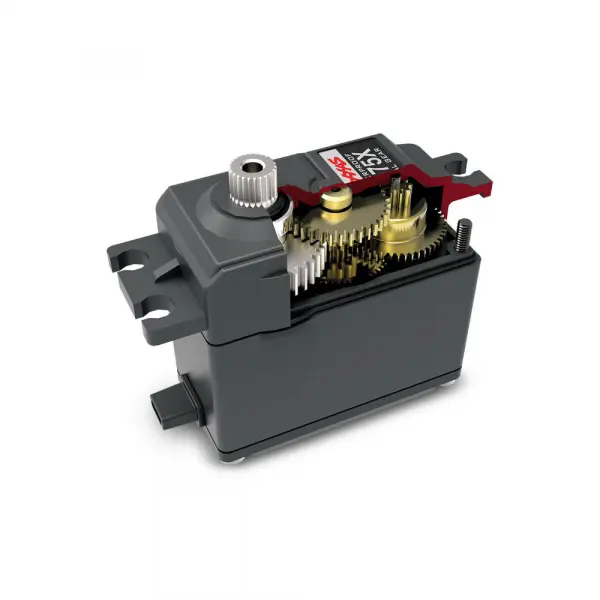

Metal Gear Digital Servo
A new full-metal gear digital servo gives you the durability and steering authority you need to confidently and reliably power through tough situations.

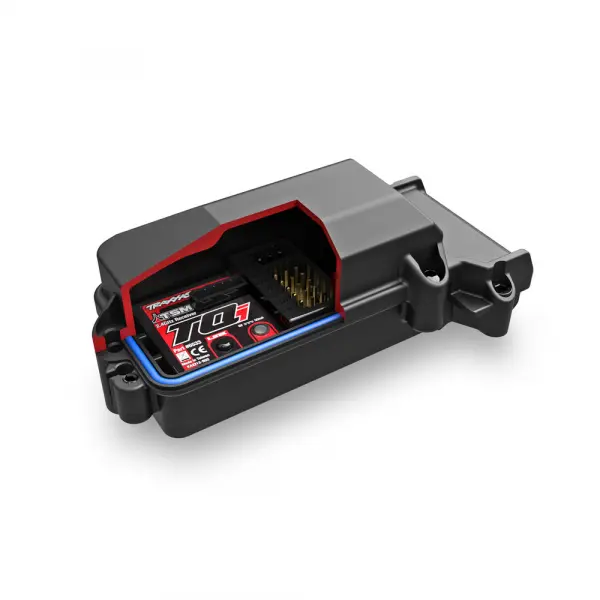

Waterproof
Traxxas was the first to bring you fully waterproof RC vehicles years ago with our innovative designs. The TRX-4 Scale and Trail Crawler is fully waterproof for how you like to really play, not “splash resistant.” There is a big difference. Traxxas’ patented innovation gives you the freedom to tackle creeks, snow, and mud without worrying about water in your electronics.

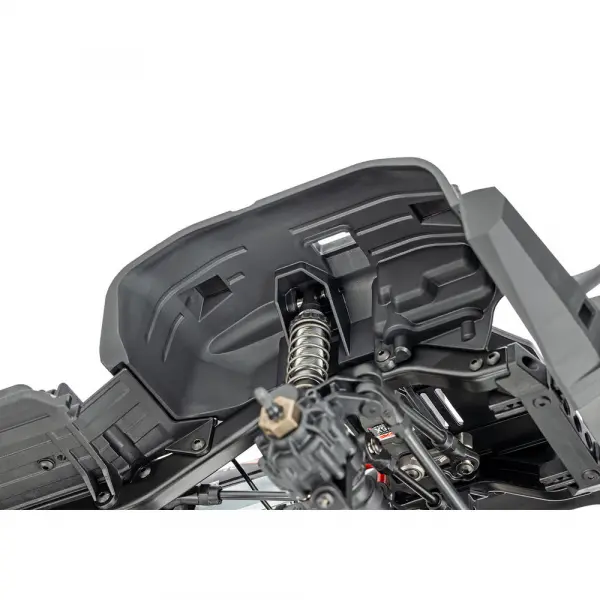

Inner Fenders
The scale details did not stop with the body. We went underneath to install detailed inner fenders that integrate with the scale look of the floor pans and shock towers, keeping rocks, mud, and twigs out of the chassis. The inner fenders are also equipped with pockets to install our optional LED rock light kit (sold separately) to light up the night trail, casting light right where it’s needed. The rock lights make changing a “flat tire” on the trail a breeze! ;-) Integrated rock sliders help protect the body from damage.

Cruise Control

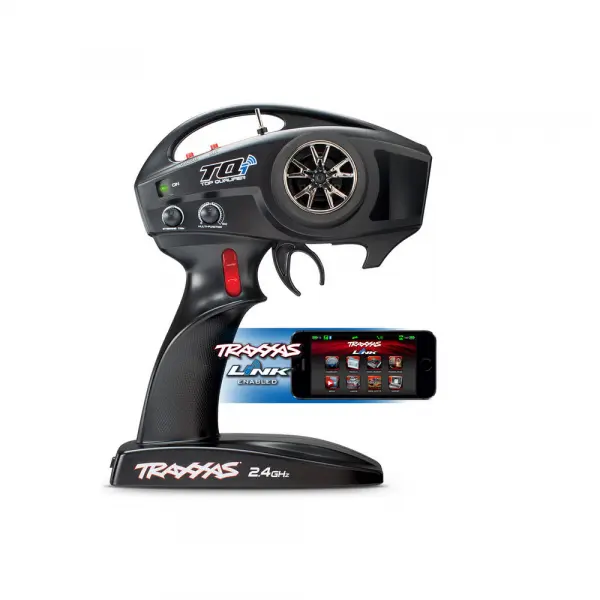

The Traxxas TQi radio system is equipped with cruise control for long-distance treks. Set your speed using the transmitter and then use the multi-function knob to fine-tune it faster or slower to precisely match the pace of your caravan of trail explorers. Cruise control makes it easy and comfortable for the TRX-4 Scale and Trail Crawler to be your companion for hours of driving fun and exploration

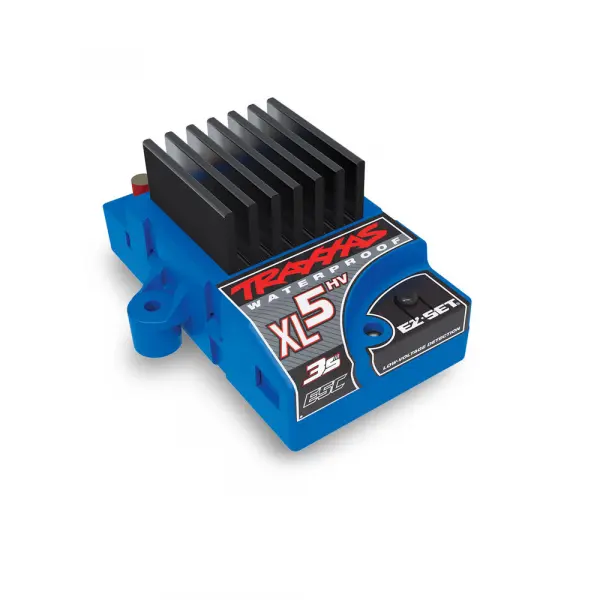

3S Power System
The new XL-5 HV electronic speed control brings 3S LiPo capability for stronger, more efficient running. New speed control profiles have been added for smooth and precise control. A new Trail profile facilitates smooth driving for most of your adventures, while a new Crawl profile introduces hill hold and instant reverse for extremely technical courses. Either will help you navigate obstacles with ease, right from the start. Long run times, up to 2 hours, are possible with a Traxxas 3S 5000mAh iD LiPo battery pack!

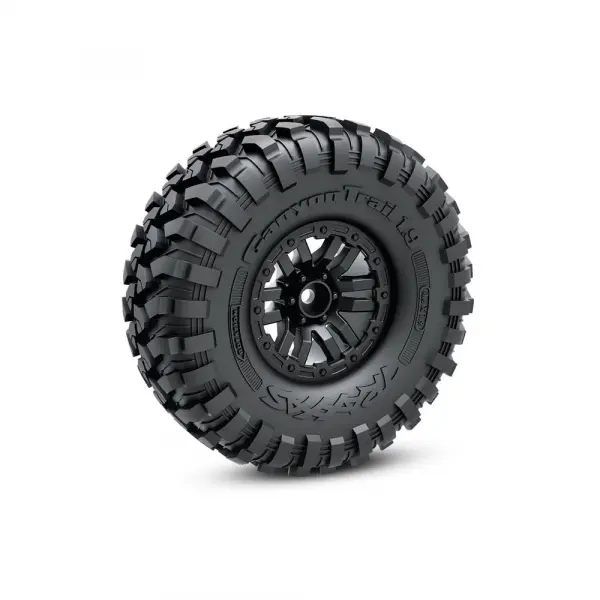

Canyon Trail 1.9 Tires
The 1.9 Canyon Trail tires and tuned foam inserts are super-soft and grippy to deliver superior bite on rocky surfaces with convincing scale realism. The 12mm steel hex drive makes the TRX-4 chassis compatible with popular 1.9 wheel and tire combinations.

Traxxas Tough

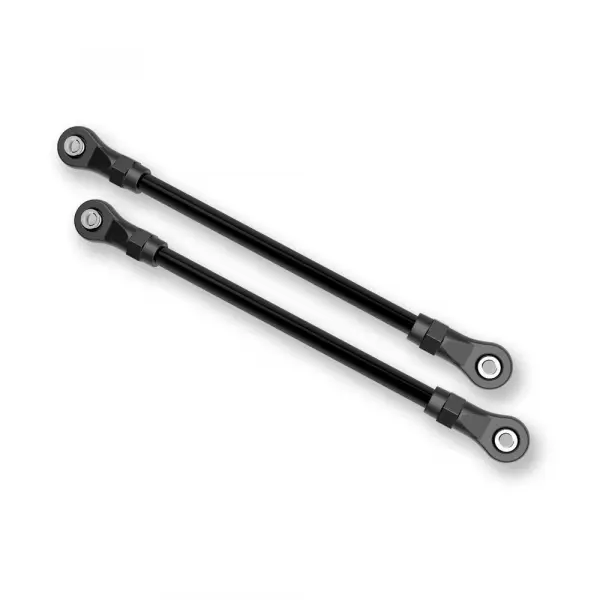

Leave the tools in the bag! The Traxxas TRX-4 chassis is built to handle the rigors of remote locations and all-day driving fun. The foundation begins with a pair of 1.5mm thick steel frame rails. Large diameter steel links and heavy-duty, extra-wide rod ends keep the suspension firmly mounted. Hardened steel CV-style half-shaft joints are ultra reliable, while the brushless-ready steel portal axle and transfer case gears are smooth and quiet. Traxxas’ composite materials have been refined over three decades for the ultimate in strength and durability.

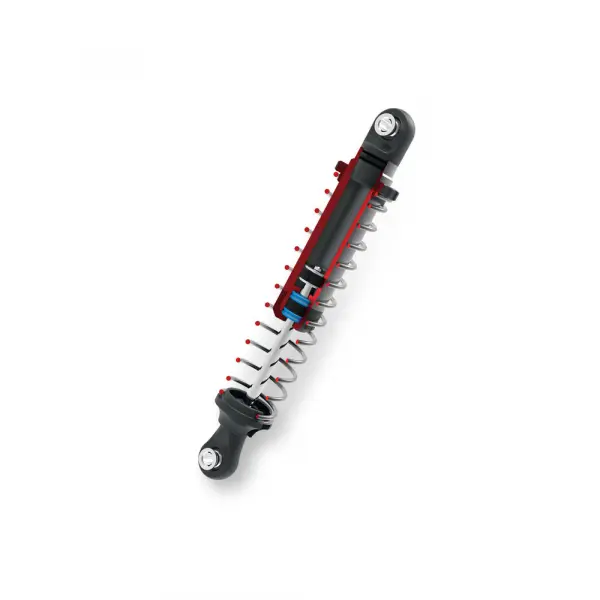

Aluminum GTS Shocks
All new oil-filled coil-over GTS shocks were created exclusively for the TRX-4 chassis. These silver-anodized aluminum units deliver silky-smooth damping performance and feature threaded shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better with an O-ring cap seal and dual X-ring shaft seals.

Extreme Capability

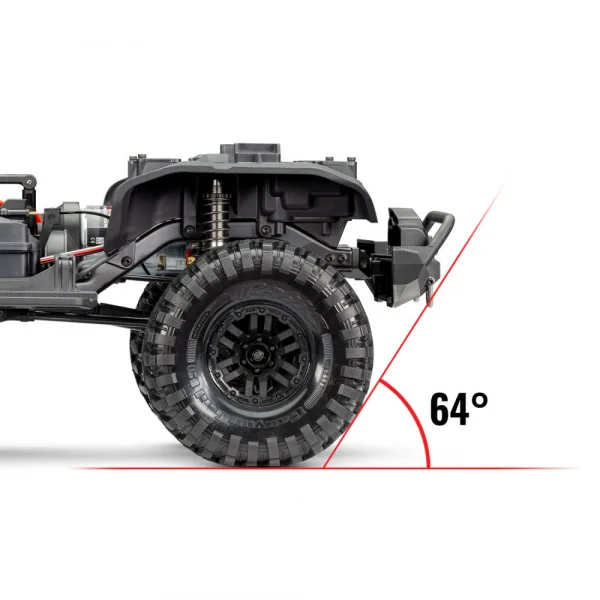

Steep approach angles front and rear allow the TRX-4 Scale and Trail Crawler to tackle big obstacles head on. The front motor design biases weight forward for superior climbing ability compared to other designs.

Traxxas TRX-4 Clipless Unassembled Kit Key Features:

• Trail-tuned XL-5 HV Waterproof Electronic Speed Control - Fully waterproof with five customisable drive profiles, including Sport, Race, Training, Trail, and Crawl modes.

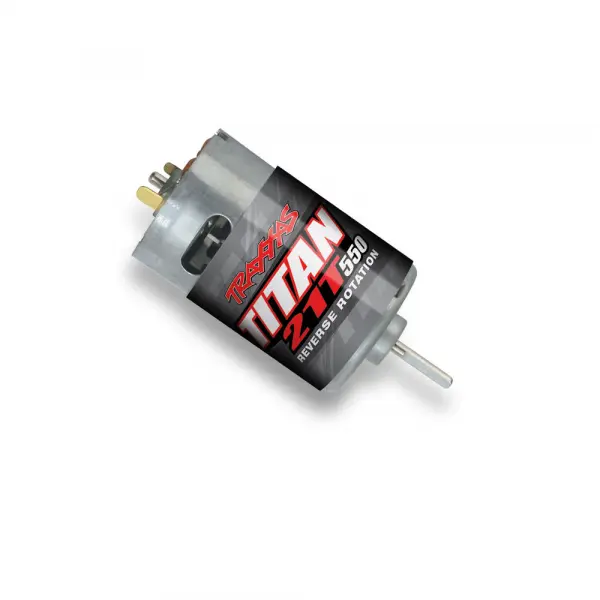

• Titan 550 Motor - Powerful 21-turn motor with an internal cooling fan and precision adjustments for performance.
• Portal Axles - Increased ground clearance (3.14") with optimised axle geometry and torque reduction.
• TQi 2.4 GHz Radio System - Advanced transmitter with adjustable steering and throttle sensitivity, plus compatibility with Traxxas Link Wireless App.
• Rigid Steel Frame - Heavy-duty frame rails for added torsional rigidity and adjustable wheelbase for versatility.

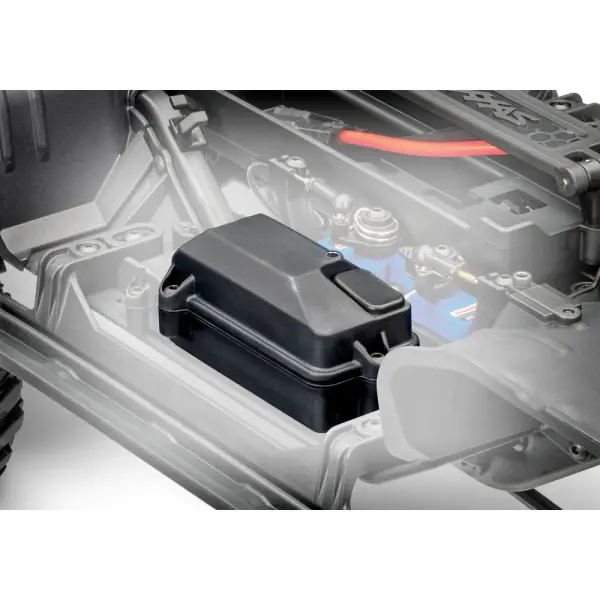

• Innovative Battery Compartment - Quick-access hinged strap design supporting various battery types and sizes.
• Aluminium GTS Shocks - Oil-filled, silky-smooth shocks with adjustable threaded bodies for superior off-road performance.
• Drivetrain - Full-time 4-wheel drive system with steel gears, hardened axles, and a cable-actuated differential lock.
• Wheels and Tyres - 1.9" Canyon Trail tyres with trail-tuned foam, pre-glued on durable black wheels, and equipped with S1 rubber compound for enhanced grip.

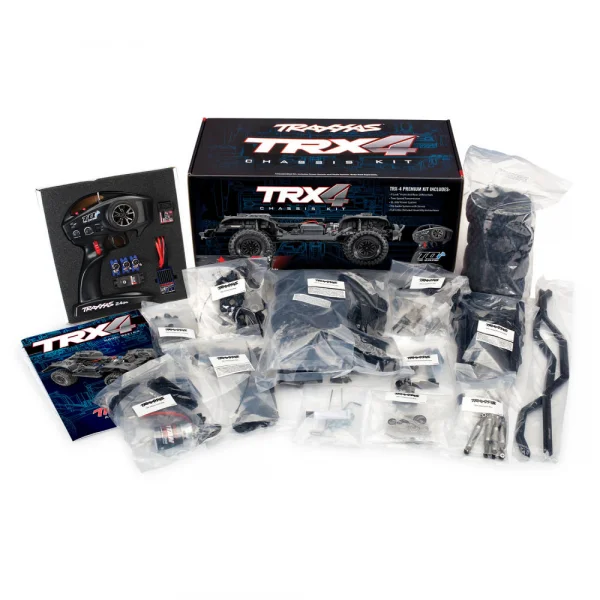

What's in the Box:

• 1x TRX-4, Unassembled kit
• 1x XL-5 HV waterproof electronic speed control
• 1x Titan 21T reverse rotation motor
• 1x TQi 2.4GHz radio system with cruise control
• 1x High quality maintenance tools

Needed to Complete:

• 4x AA batteries (for the transmitter)
• Batteries - TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries
• Charger - Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #TRX2971)

Traxxas TRX-4 Clipless Unassembled Kit Tech Specs:

• Shipping Weight: 4.50kg / 9.92lbs

• Scale: 1:10
• Completion Level: Kit
• Age Recommendation: 14+
• Colour: Black
• Drivetrain: 4WD
• Power Source: Electric

• Battery: No Battery
• Motor/Engine: Titan 550
• Charger: No Charger
• Radio: TQi 4-Channel
• ESC: XL-5 HV

• Brand: Traxxas
• Part No: TRX82216-4-R6
• Barcode: 020334032676
• Scale: 1:10
• Power Source: Electric - Brushed
• Surface Type: Off Road
• Vehicle Type: Rock Crawler
• Build Level: Unassembled (Kit)
