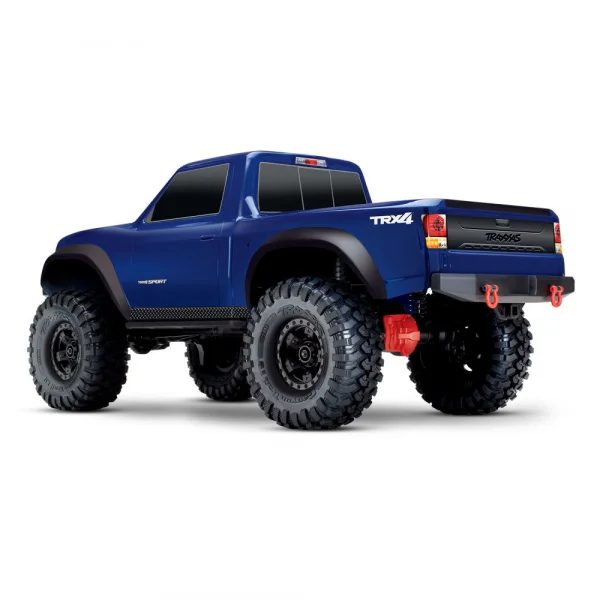

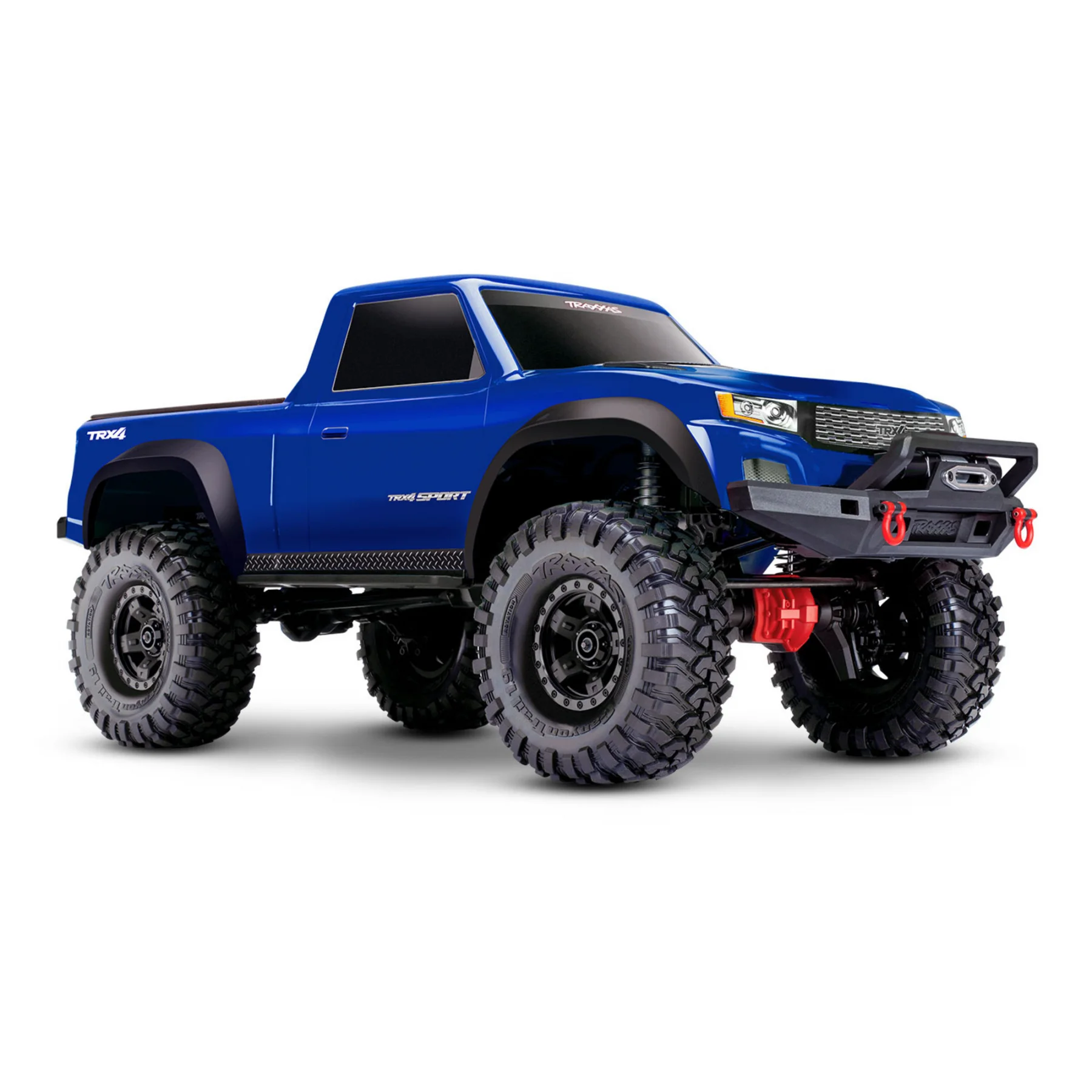

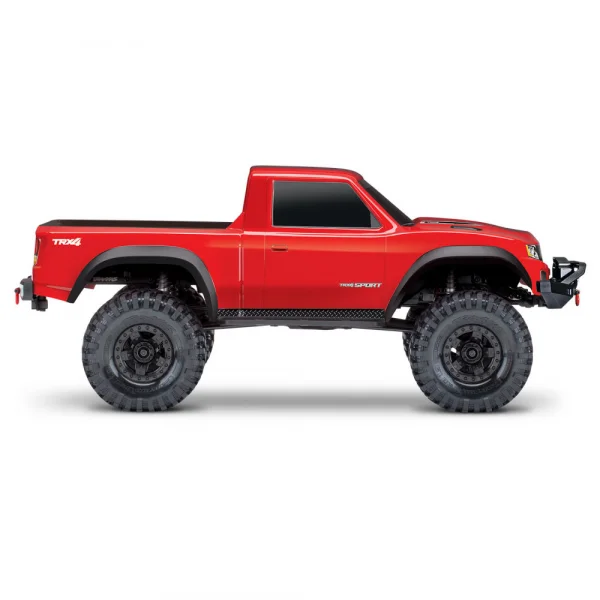

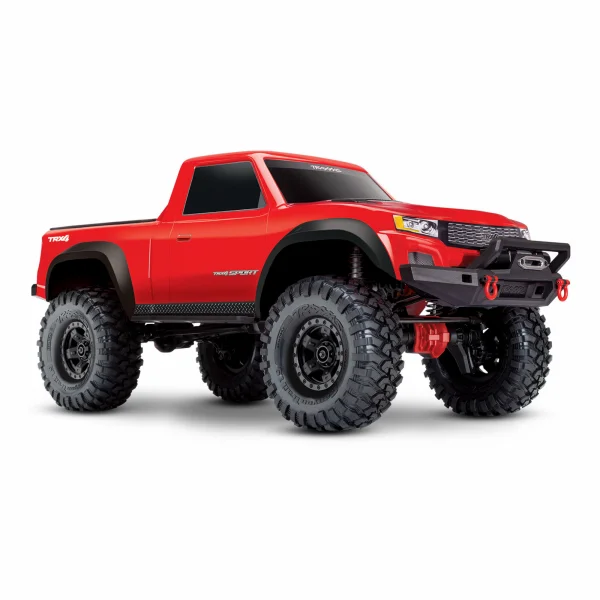

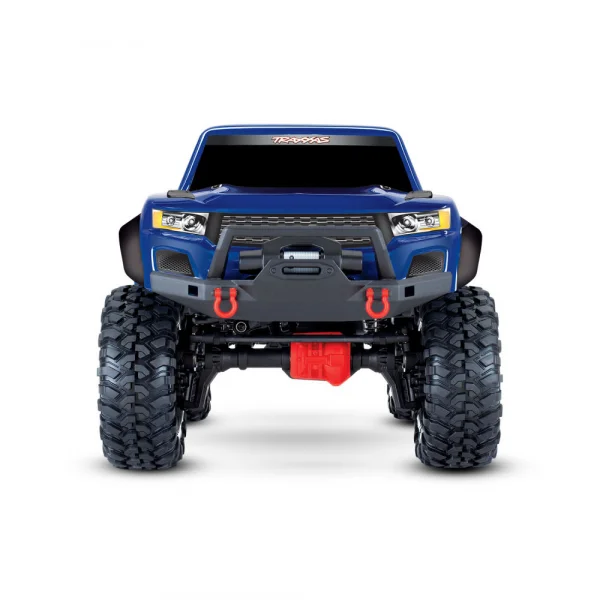

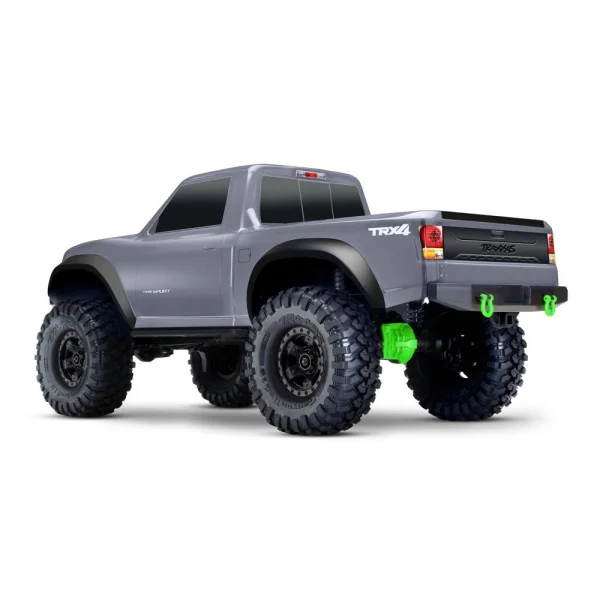

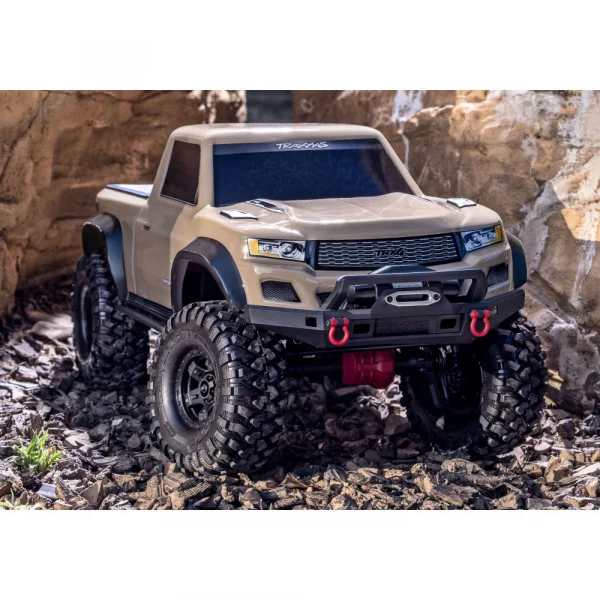

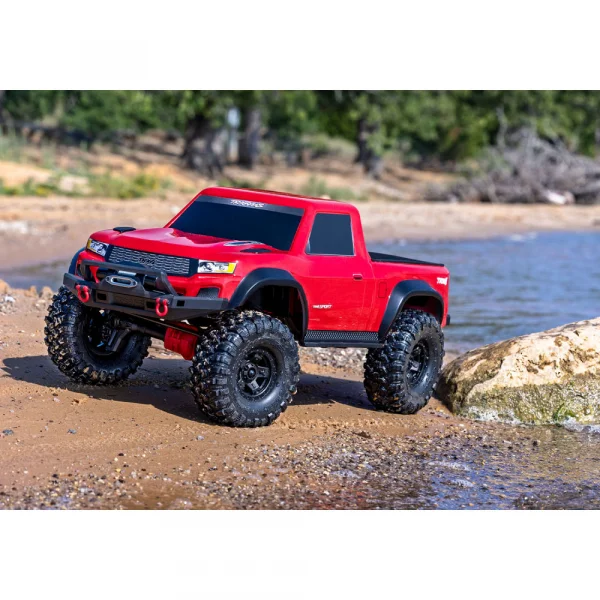

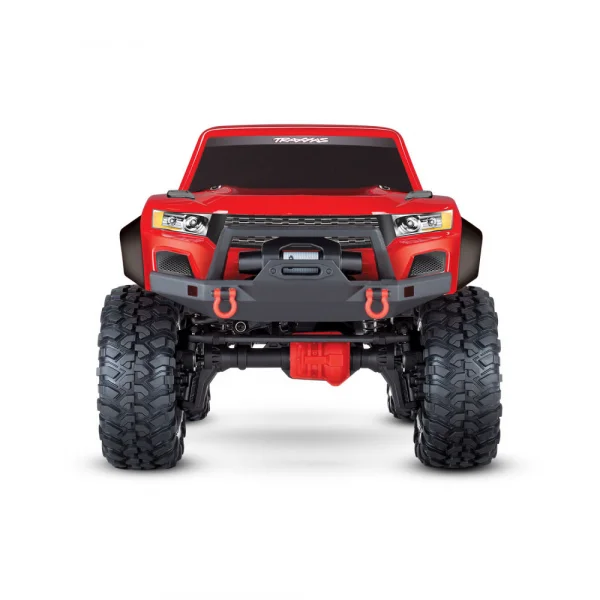

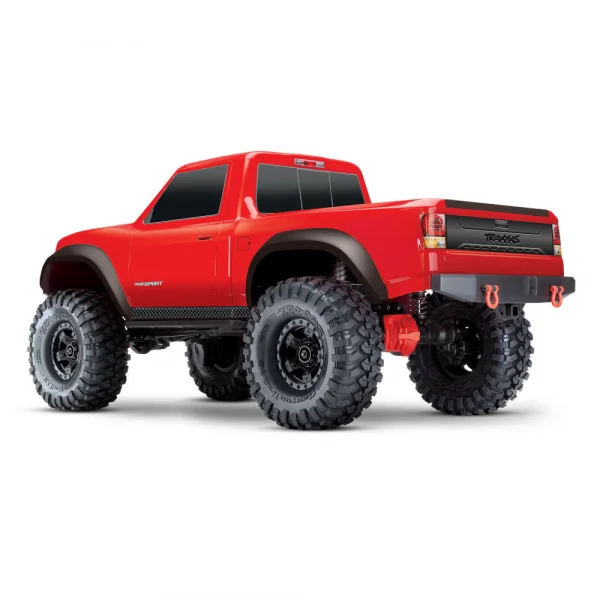

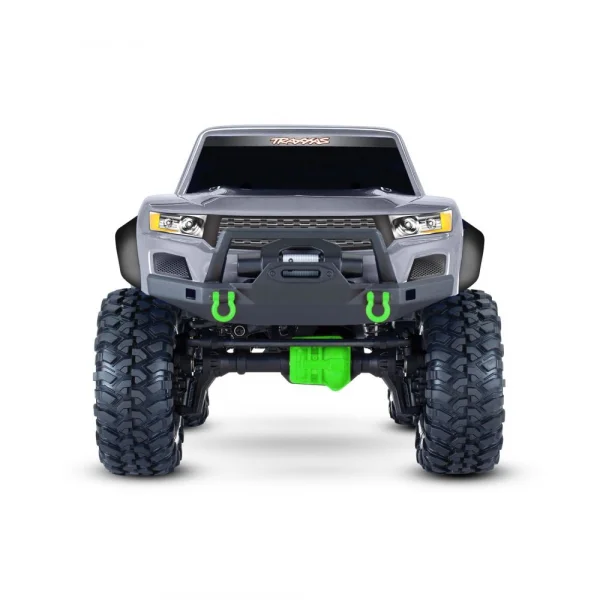

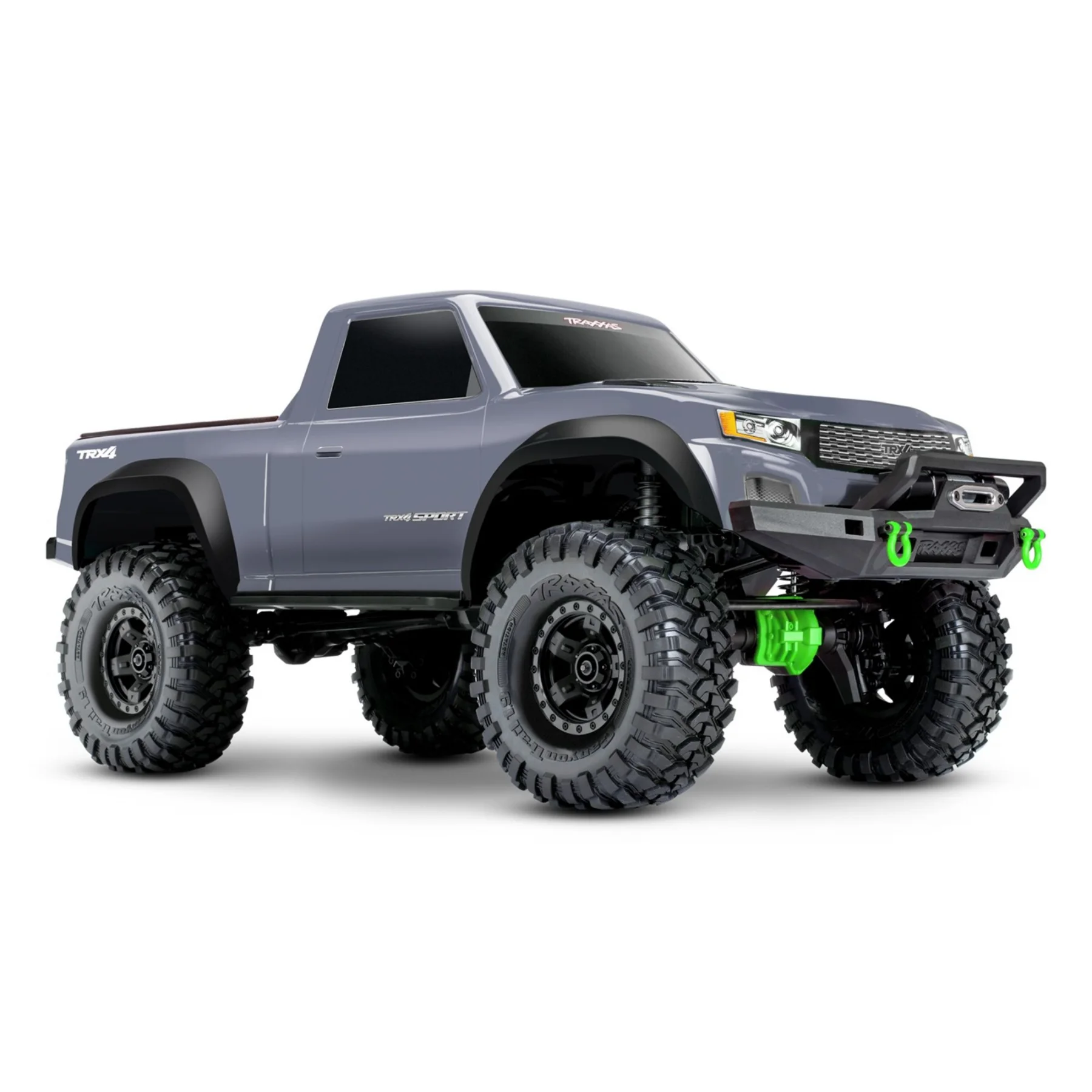

Traxxas TRX-4 Sport Clipless Crawler

Purpose Built

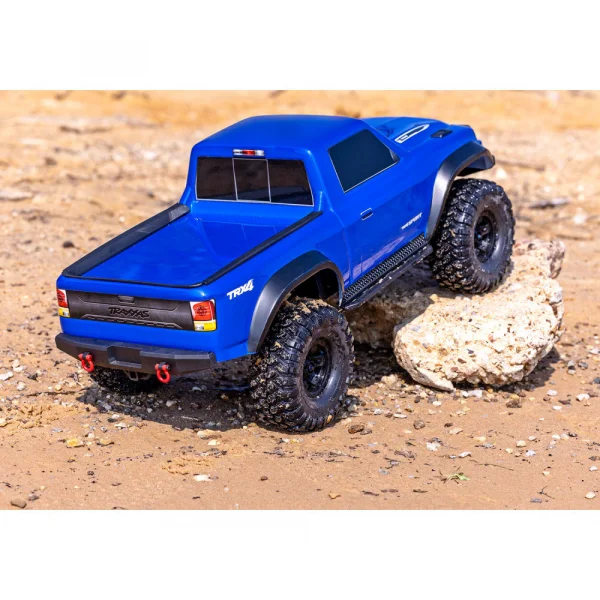

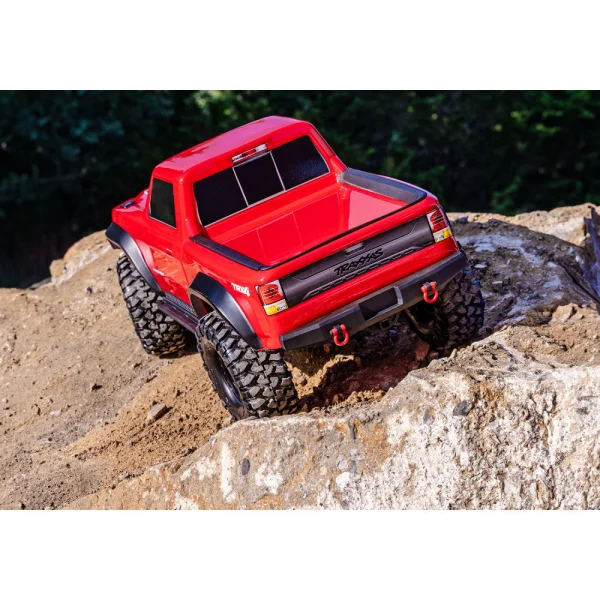

TRX-4® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a clipless lightweight pickup truck body for a leaner, performance-focused truck. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.

New Clipless Body Mounting

New to TRX-4 Sport, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-4 Sport’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.

Traxxas TRX-4 Sport Clipless Key Features:

• New Clipless Body Mounting - Secure latching system with hidden latches for easy access to the chassis.

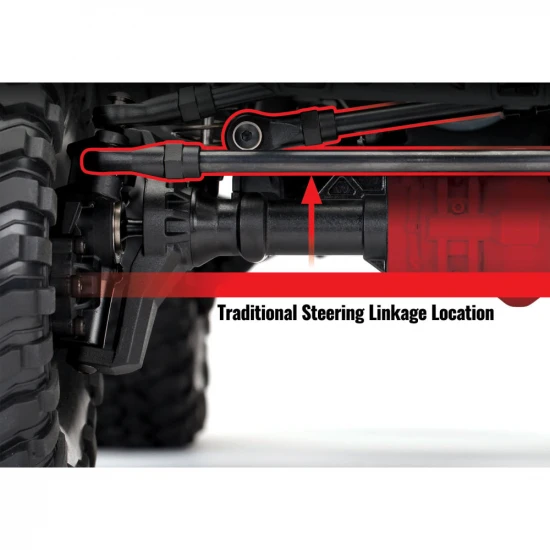

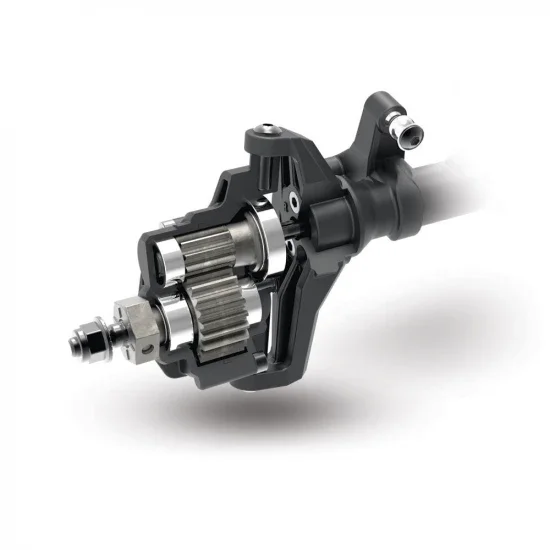

• Portal Axles - Provides increased ground clearance and improves axle geometry for better off-road capability.
• Torque Twist Eliminated - Gear reduction at the wheels eliminates torque twist for straight and powerful forward motion.
• Locked Differentials - Differential spools in the front and rear provide maximum grip on slick terrain.

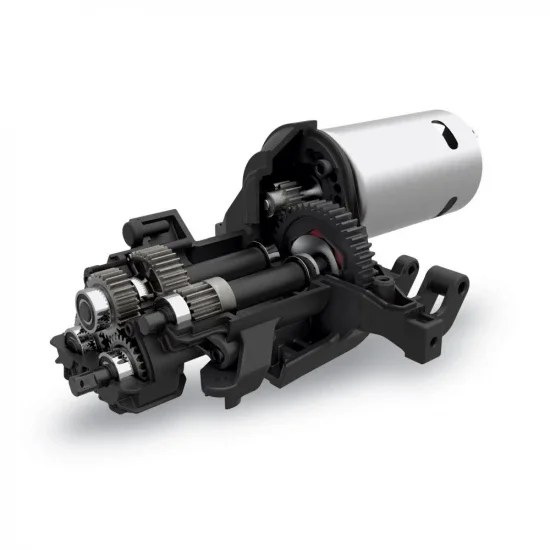

• Single Speed Transmission - Geared for torque, with steel gears for durability.

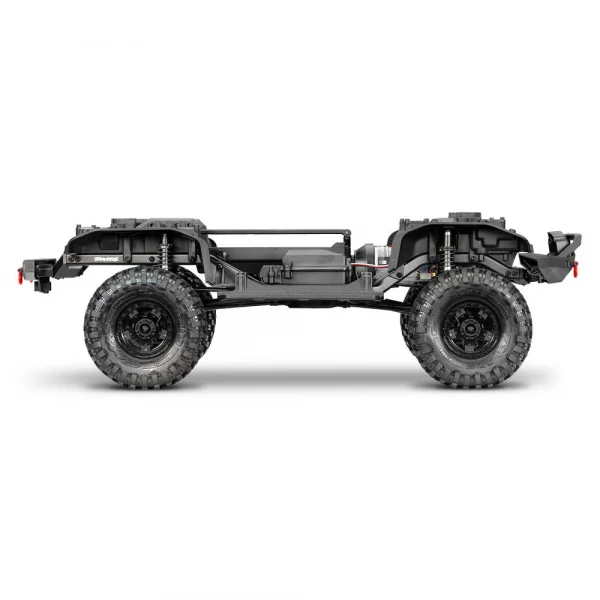

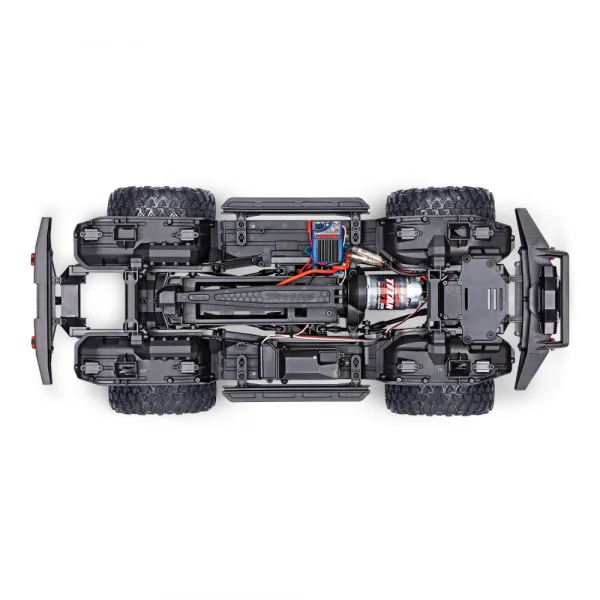

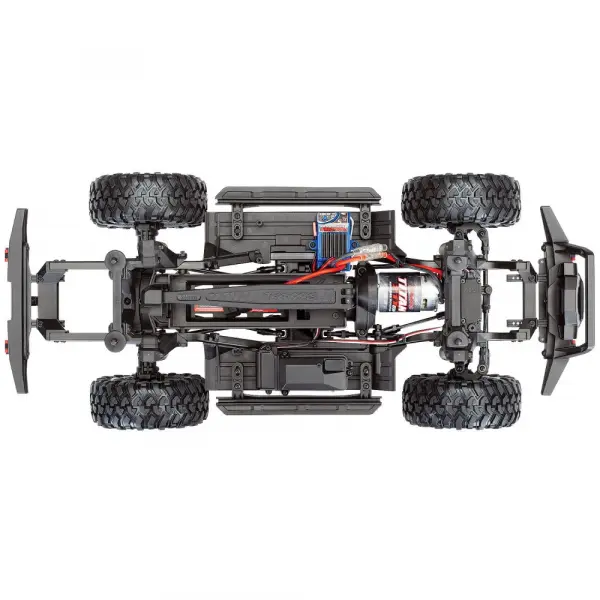

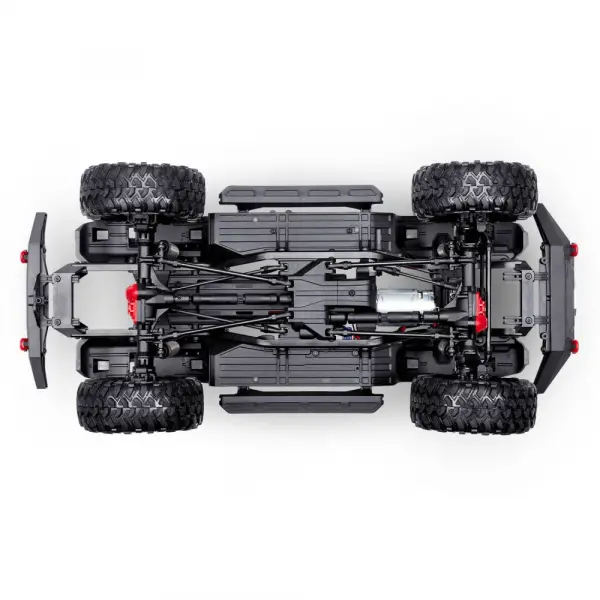

• Rigid Steel Frame - Heavy-duty steel ladder frame with molded cross members for exceptional rigidity.

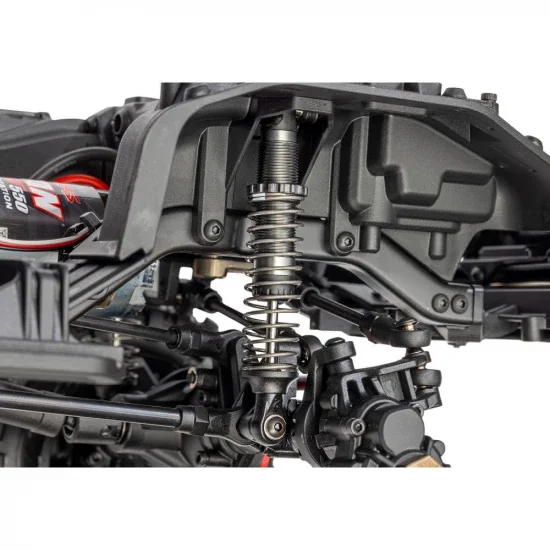

• GTS Aluminum Shocks - Oil-filled coil-over shocks with threaded bodies for easy adjustments.

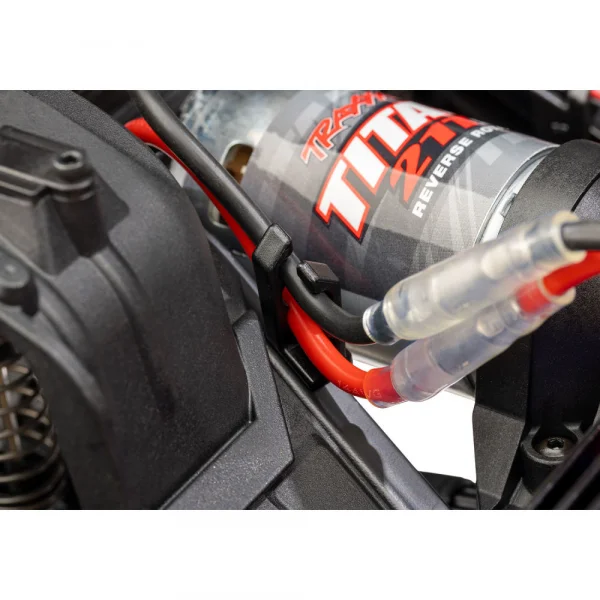

• 3s Power System - XL-5 HV ESC and Titan 21T motor for efficient power and long run times.
• TQ Radio System - Provides long-range, glitch-free control with comfortable design.
• Waterproof Electronics - Fully waterproof design allows for tackling wet conditions without worry.

Traxxas TRX-4 Sport Clipless Key Specification:

• Length: 21.93 inches (557 mm)
• Front Track: 9.78 inches (249 mm)
• Rear Track: 9.78 inches (249 mm)

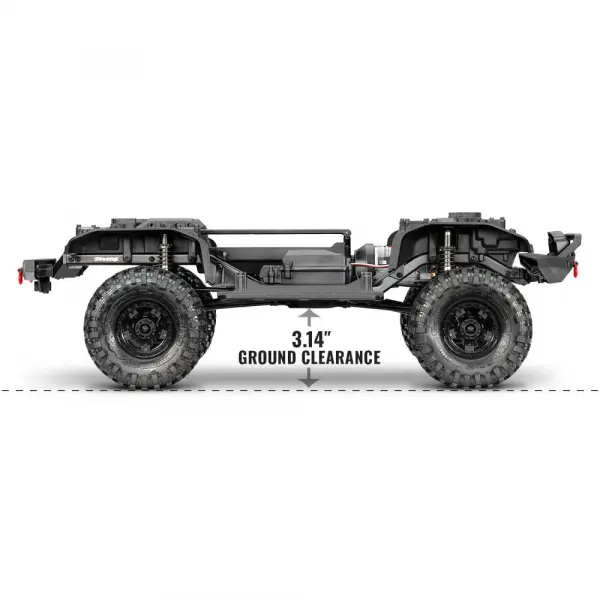

• Ground Clearance: 3.14 inches (80 mm)
• Weight: 5.79 pounds (2.63 kg)
• Height: 9.47 inches (241 mm)

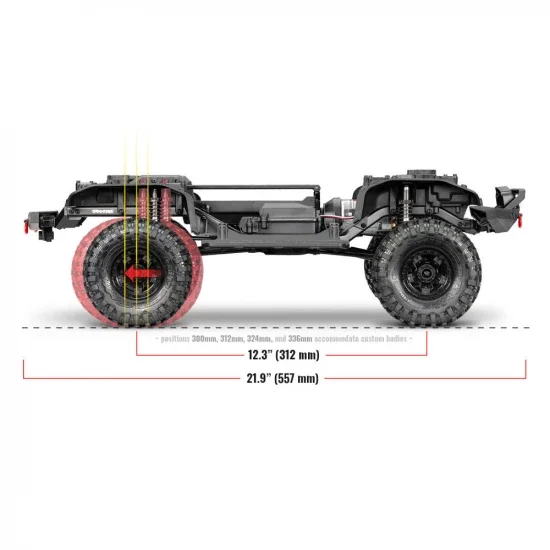

• Wheelbase: 12.28 inches (312 mm)

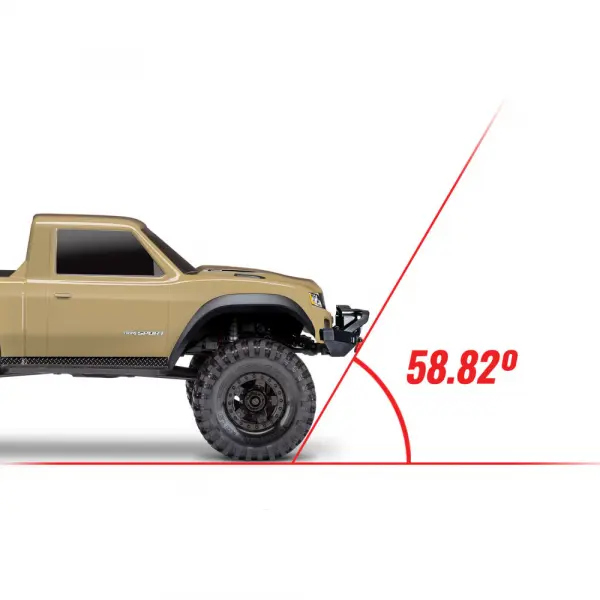

• Approach Angle: 58.82°
• Departure Angle: 45.83°
• Breakover Angle: 59°
• Front Shock Length: 3.54 inches (90 mm)
• Rear Shock Length: 3.54 inches (90 mm)
• Front Wheels: 1.9″ x 1.02″ (49 x 26 mm)
• Rear Wheels: 1.9″ x 1.02″ (49 x 26 mm)
• Front Tires: 4.64″ x 1.89″ (118 x 48 mm)
• Rear Tires: 4.64 x 1.89″ (118 x 48 mm)
• Hex Size: 12 mm
• Speed Control: XL-5™ HV
• Motor (electric): 21T reverse rotation
• Transmission: Single speed
• Gear Pitch: 32 pitch
• Differential Type: Spool (no differential)
• Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
• Brake Type: Electronic “Hill Hold”

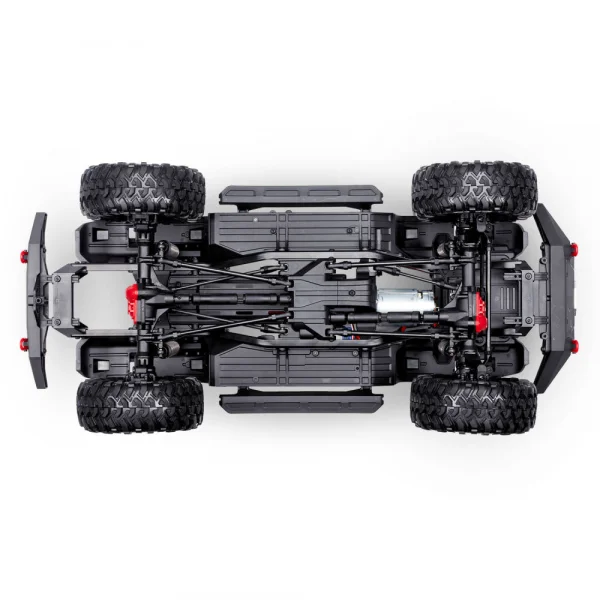

• Drive System: Shaft driven 4WD

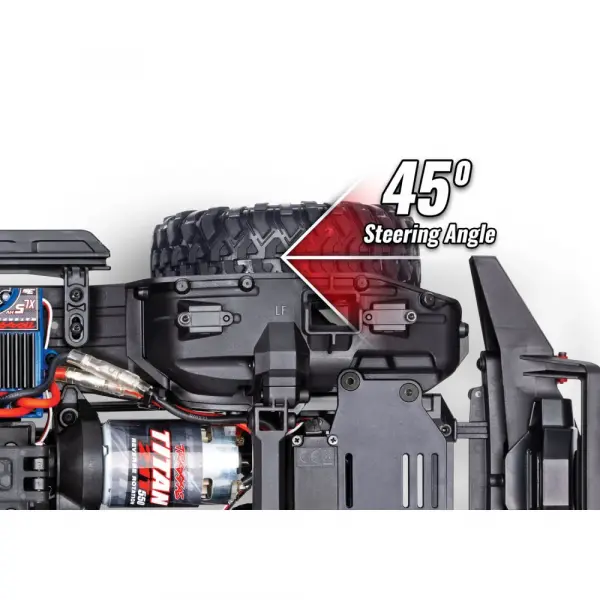

• Steering: Chassis mounted servo

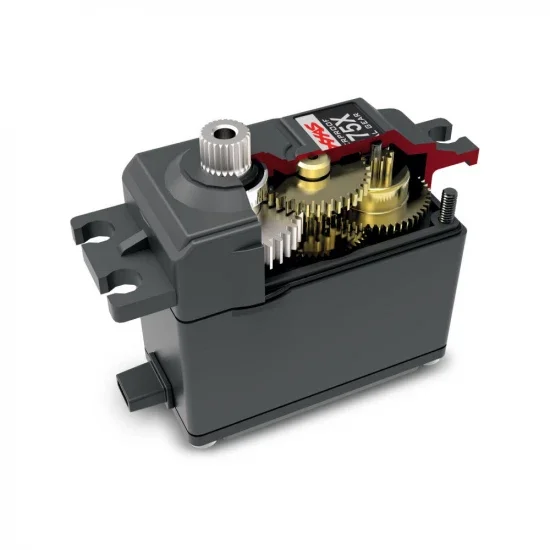

• Servo: 2075X metal gear
• Transmitter: TQ™ 2.4 GHz 2-channel transmitter
• Receiver: 6519
• Skill Level: 1

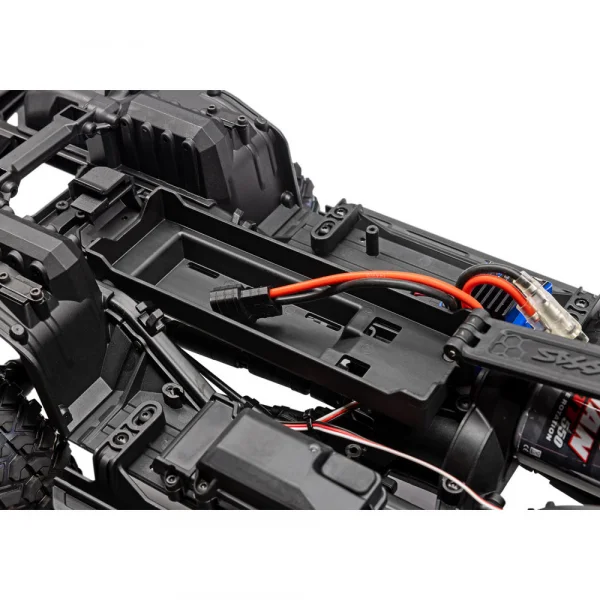

• Battery Tray: 158.75 L x 47 W x 23/26 mm H

What's in the Box:

• Fully assembled TRX-4 Sport
• TQ 2.4 GHz radio system
• XL-5 HV ESC
• Titan 21T 550 motor
• Quick Start Guide
• High-quality maintenance tools

Needed to Complete:

• Batteries: Requires a Traxxas 3s 5000 mAh LiPo battery or similar.
• Charger: Compatible charger for LiPo battery.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

• Brand: Traxxas
• Part No: TRX82224-4
• Scale: 1:10
• Build Level: Assembled (RTR)
• Power Source: Electric - Brushed
• Surface Type: Off Road
• Vehicle Type: Rock Crawler
