RC4WD Raceline Monster Deep Dish 1.7 Beadlock Wheels RC4WD

RC4WD Raceline Monster Deep Dish 1.7" Beadlock Wheels
These are the all new Licensed Raceline Monster Deep Dish 1.7" Beadlock Wheels. These have been Officially Licensed by the Raceline Wheels and are only available from RC4WD and our Dealers.
Specifications:

• CNC Machined
• Billet Aluminum
• Silver Anodized Finish
• Wheel Size: 1.7"
• OD: 1.88in / 48.0mm
• Width: 1.18in / 30.0mm
• Center Hole OD: 0.19in / 5.0mm
• Negative Offset: 0.28in / 7.3mm
• Each Weigh: 2.00oz / 56.7g

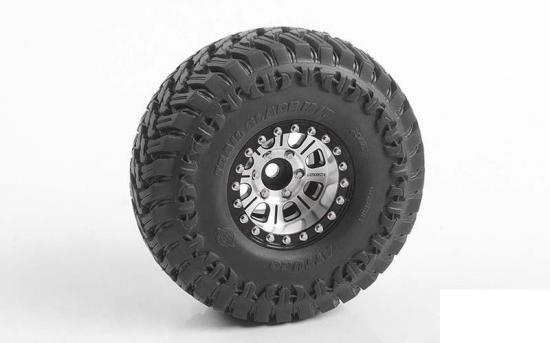

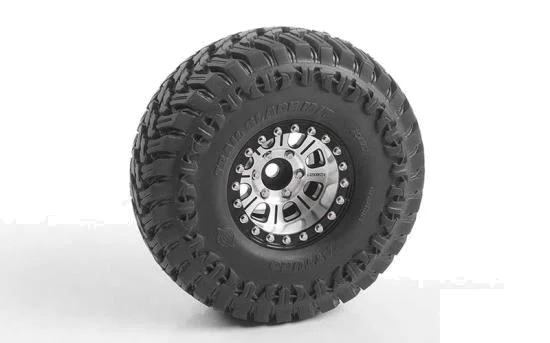

Shown installed with RC4WD Atturo Trail Blade M/T 1.7" Scale Tires (Z-T0151) for example (Not Included)
Shown installed on RC4WD Gelande II RTR Truck Kit w/D90 Body Set (Z-RTR0031) with RC4WD Atturo Trail Blade M/T 1.7" Scale Tires (Z-T0151) for example (Not Included)
Click image below to enlarge photo.
What's Included:

• 4x RC4WD Raceline Monster Deep Dish 1.7" Beadlock Wheels
• 1x Miniature Scale Hex Bolt Tool (M2 Hex)
• 1x Raceline Decal Sheet

Replacement Hardware:

• RC4WD Miniature Scale Hex Bolts (M2 x 6mm) (Silver) (Z-S1196)
• RC4WD Miniature Scale Hex Bolts (M2 X 5mm) (Silver) (Z-S0624)
• Steel Flat Head Socket Cap Screws M2.5 x 6mm (Z-S1205)
• Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)

Notes:

• Fits RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029)
• Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
• Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
• Fits RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
• Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
• Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
• Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
• Fits RC4WD Gelande II RTR Truck Kit w/D90 Body Set (Z-RTR0031)
• Fits Axial SCX10
• Fits Axial SCX10 II
• Fits Vaterra Ascender
• Fits Axial Wraith
• Fits HPI Venture FJ Cruiser
• Installing on Traxxas TRX-4  trucks requires the RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4 (Z-S1844)
• Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.

Raceline and Combat are registered trademarks of the Raceline Wheels company. The Raceline Wheels logo is property of Raceline Wheels and used under license to RC4WD.

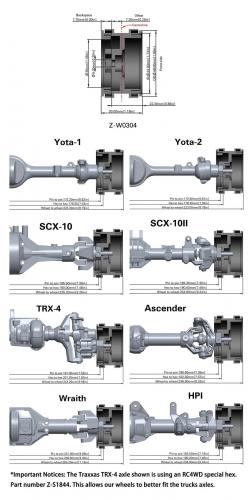

Click here to download the RC4WD full wheel comparison list.

Key Info:

• Brand: RC4WD
• Part No: Z-W0304
• Barcode: 639302599433
