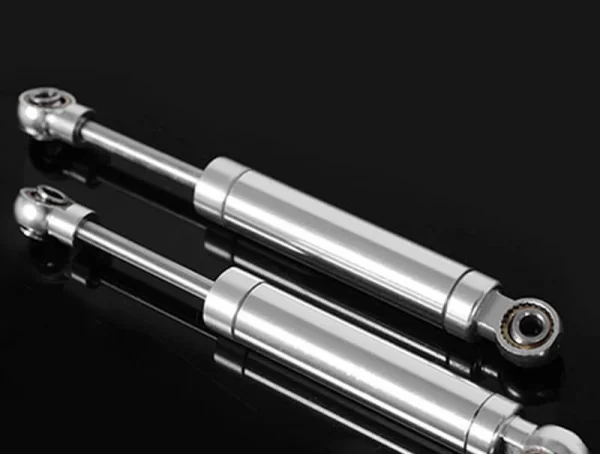

RC4WD The Ultimate Scale Shocks 90mm (Silver)
Brand: RC4WD
Part No: Z-D0001
Shadow Stock: Usually ships next day
Enhance your scale crawler’s suspension with RC4WD The Ultimate Scale Shocks 90mm (Silver), part Z-D0001. Precision CNC-machined and heat-treated from billet aluminium, these shocks feature next‑gen super‑soft internal springs for smooth, realistic action. Supplied as a pair.
Key Specifications
- CNC machined, heat treated billet aluminium
- Hole-to-hole: 90mm (uncompressed); 68mm (compressed)
- Overall length: 100mm; travel: 24mm
- Shock body OD: 8.8mm; shaft OD: 3mm
- Ball width: 6.45mm; ball lip OD: 4.8mm; inner OD: 3.1mm
- Each weight: 11g
What’s Included
- 2x RC4WD Ultimate Scale Shock Absorbers (90mm, Silver)
Replacement Parts
- 90mm Ultimate Scale Shocks Internal Spring Assortment (Z-S1349)
Suggested Compatibility
- Gmade Sawback
- RC4WD Timberwolf Scale Crawler Kit (Z-K0016) – front/rear
- Trail Finder 2 Truck Kit w/Mojave Body (Z-K0042) – rear
- Trail Finder 2 Truck Kit w/Mojave II Body (Z-K0049)
- Traxxas TRX-4 – requires 2mm (Z-S0600) and 3mm (Z-S0806) spacers
Notes
- These shocks do not use oil; apply a small amount only to lubricate the shaft.
- Use medium (blue) thread lock on the bottom shock shaft rod end.
- Install shock caps carefully; fine threads can strip if misaligned.
- Two sets are needed to complete a full vehicle.
Secured by Stripe
2x The Ultimate Scale Shocks 90mm (Silver)
At 9mm OD, this is the most Scale and precision made Suspension Shocks Available on the market. Along with our next gen fine tuned super soft internal Springs.
Specifications:
- CNC Machined
- Billet Aluminum
- Heat Treated
- Ball Width: 0.25in / 6.45mm
- Ball Lip OD: 0.19in / 4.8mm
- Ball Inner OD: 0.12in / 3.1mm
- Hole to Hole (Compressed): 2.68in / 68mm
- Hole to Hole (Uncompressed): 3.66in / 90mm
- Overall Length: 3.94in / 100mm
- Travel Length: 0.94in / 24mm
- Shock Body OD: 0.35in / 8.8mm
- Shaft OD: 0.12in / 3mm
- Each Weight: 0.40oz / 11g
Shown installed on Fracture Scale RTR Truck with V8 Engine for example (Not Included)
Shown installed on Traxxas TRX4 with 2mm Black Spacer with M3 Hole (10) (Z-S0600) and 3mm Black Spacer with M3 Hole (10) (Z-S0806) for example (Not Included)
- 2x RC4WD Ultimate Scale Shocks Absorbers (90mm)
Replacement Parts:
- 90mm Ultimate Scale Shocks Internal Spring Assortment (Z-S1349)
- Fits Gmade Sawback
- For complete you need 2 set of this product
- These shocks do not use oil. Use a small amount to keep the shaft lubricated only.
- These shocks have very small threads on the shock cap. You can easily install the cap wrong and cause the threads to strip. Please pay careful attention when removing and installing the shock cap.
- Fits RC4WD Timberwolf Scale Crawler Kit (Bolted Chrome) (Z-K0016 "Disc") (Front / Rear)
- Fits Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc") (Rear)
- Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
- Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
Key Info:
- Brand: RC4WD
- Part No: Z-D0001
- Barcode: 091037074782
