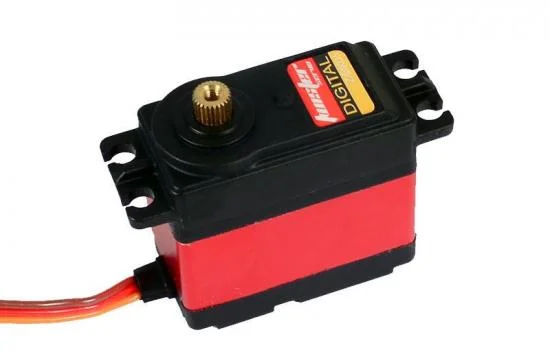

RC4WD Twister High Torque Metal Gear Digital Servo

The RC4WD Twister High Torque Metal Gear Digital Servo (part no. Z-E0035) delivers dependable, high-torque control for demanding RC applications. A robust metal geartrain, 25T spline output and an aluminium centre case help ensure smooth running and improved heat dissipation. With digital control, waterproof construction and lock-rotor protection, it suits steering, throttle or winch use across a range of builds.

Key Features

• High-torque digital servo with metal gears
• Aluminium centre case for cooler, smoother operating temps
• Waterproof construction
• 25T spline output
• Servo-motor lock-rotor protection
• High efficiency, low power consumption

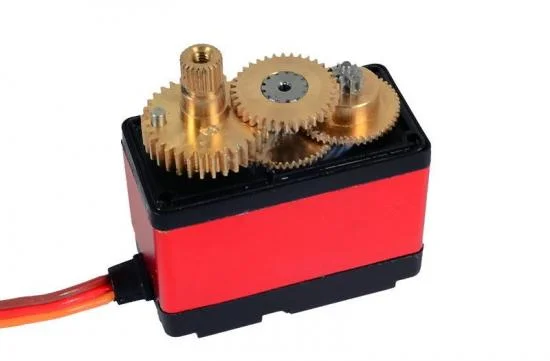

• Brass gearset with steel spur gear
• PWM control; 500–2500 µs pulse width
• 320 mm (12.6 in) servo lead

Specifications

• Dimensions: 40 × 20 × 40.1 mm (1.57 × 0.78 × 1.59 in)
• Weight: 62 g (2.18 oz)
• Speed: 0.16 s/60° (@6.0V); 0.14 s/60° (@7.2V)
• Torque: 20 kg·cm / 277.6 oz·in (@6.0V); 22 kg·cm / 305.3 oz·in (@7.2V)
• Operating voltage: 4.8–7.4 V
• Control method: PWM
• Pulse width: 500–2500 µs
• Servo wire length: 320 mm (12.6 in)
• Centre case: Aluminium
• Gear material: Brass with steel spur gear

Applications

• Steering
• Throttle
• Winch

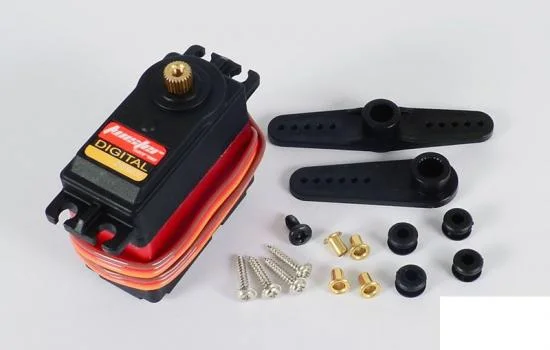

What’s Included

• 1x Twister High Torque Metal Gear Digital Servo
• 6x Servo Arms
• 4x Brass Mount Bushings
• 4x Rubber Mounting Tabs
• 4x M2.3 x 10mm Cross Head Cap Self Tapping Screws (Silver)
• 1x M3 x 6mm Cross Head Cap Screw (Black)

Suggested Compatibility

• 1/14 8x8 Armageddon Hydraulic Dump Truck (Full Metal) (VV-JD00012)
