RC4WD Yota II Ultimate Scale Front Axle

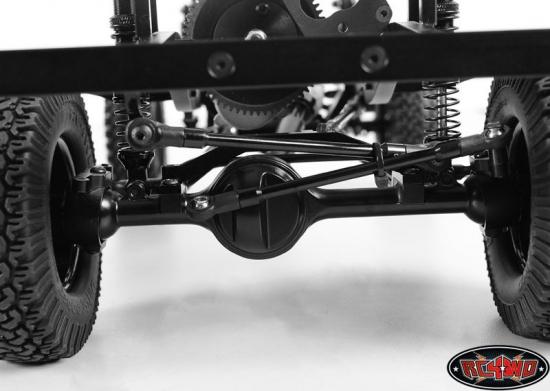

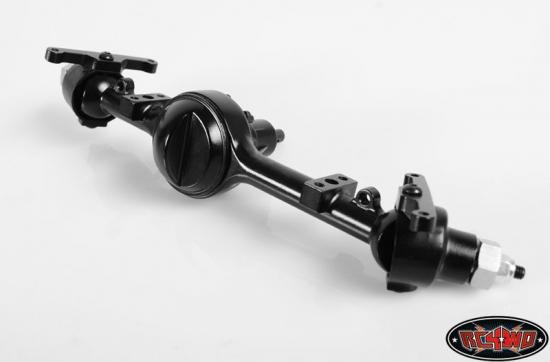

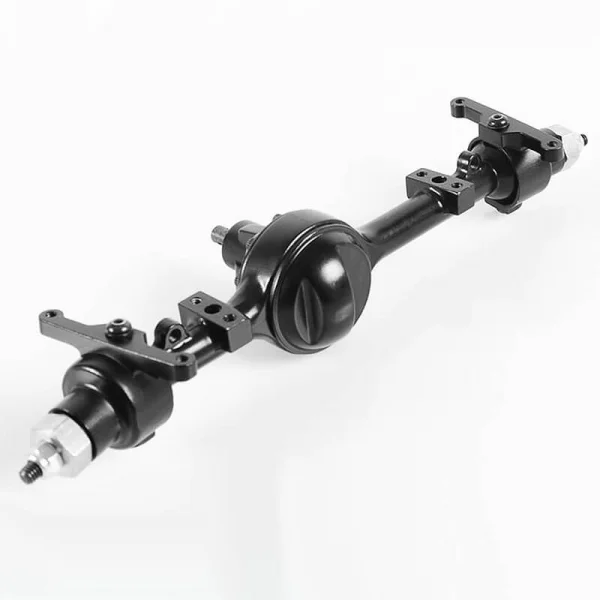

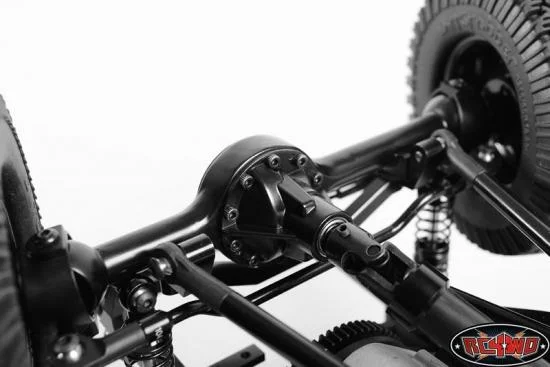

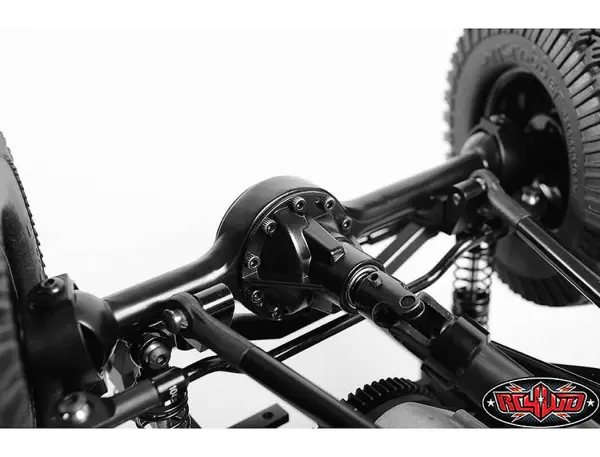

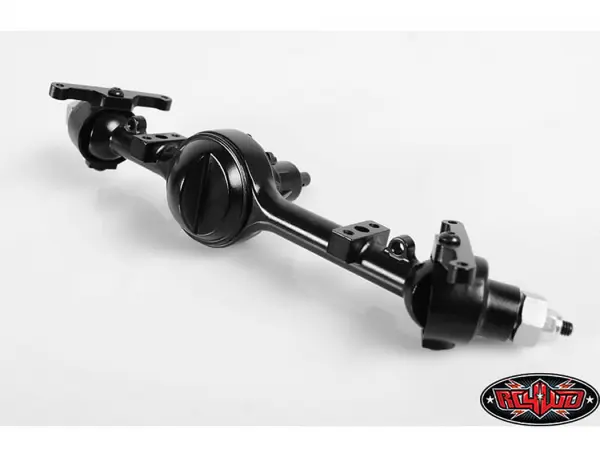

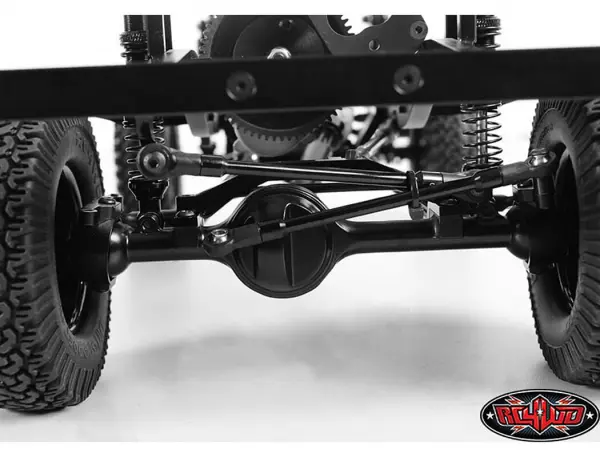

Yota II Ultimate Scale Cast Axle (Front)
The most Scale and complex Axle on the market just became even better! Extremely Scale to the smallest details, such as innovative round knuckles (just like the real thing), Removable offset third member and replaceable pumpkin.
Specifications:

• Engineered and Manufactured by RC4WD
• Designed for 1:10 Scale Truck
• Die Cast light Weight Metal Housing
• Hardened Steel Spool Gears
• 5mm Axle Output Shaft
• Full Ball Bearings
• Powdercated in black

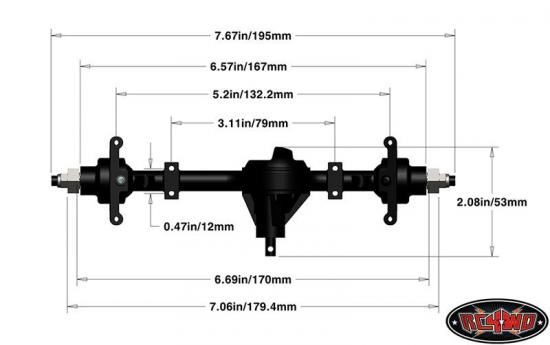

• Width: 180mm / 7.09inch
• Gear Ratio: 2.67 : 1
• 12mm Steel Wheel Hex

• Weight (Front): 166gram / 5.85oz


• 1x Yota II Ultimate Scale Cast Axle (Front)

Other Yota II Axles:

• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Yota II Ultimate Scale Cast Axle (Center Rear) (Z-A0010)
• Yota II Ultimate Scale Cast Axle (Center Front) (Z-A0086)


• Axle Ring & Pinion Gears (Z-S0027)
• Front Replacement Case Housing (Z-A0082)
• Replacement Third Member (Z-S0813)
• Replacement Diff Cover (Z-S0812)
• Replacement Cast Knuckles for Yota II Axle (Z-S0811)
• Replacement Hardware (Z-S0868)
• Yota Front Steel Axle Shaft (Z-S0060)
• Socket Head Cap Screws M2 X 6mm (10) (Z-S0611)
• Bearing Kit for Yota Ultimate Scale Front Axle (Z-S0080)


• Optional Diff Cover (Z-S0907)
• Helical Gear Set (Z-G0059)
• XVD Axle for Ultimate Scale Yota II (Z-S0823)
• Steering Link Set (Z-S0938)
• Predator Track Front Axle Fitting Kit (Z-S0918)
• Ultimate Axle 4 Link Mount (Z-S0133)
• Axle U Bolt Kit (Z-S0304)
• RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
• 5mm x 9mm x 0.3mm Axle Shims (Z-S1559)
• RC4WD Ballistic Fabrications Diff Cover for Yota II Axle (Z-S1605)
• RC4WD Teraflex Diff Cover for Yota II Axle (Z-S1681)
• Knuckle Bushings for Yota II Axle (8) (Z-S1784)


Notes:

• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
• Yota II Axles will fit Trail Finder 2. With the front Axle you will need the steering link set. (Z-S0938)

Axle Shimming Video: Click Here

• Brand: RC4WD
• Part No: Z-A0080
• Barcode: 610373642631
• Fitment: Standard Part
