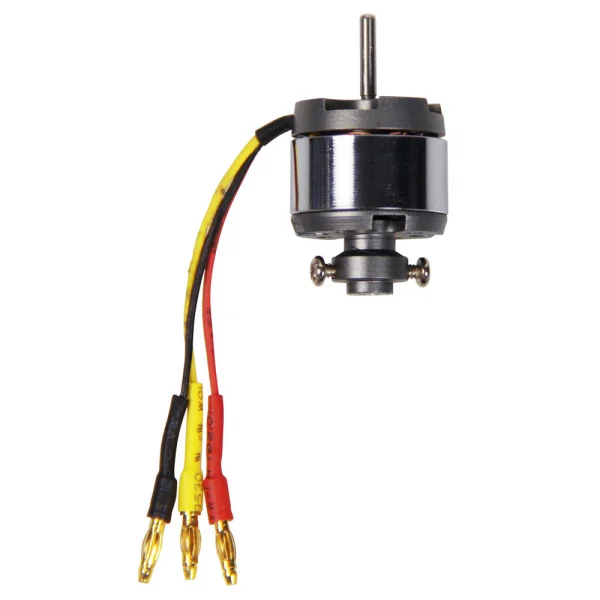

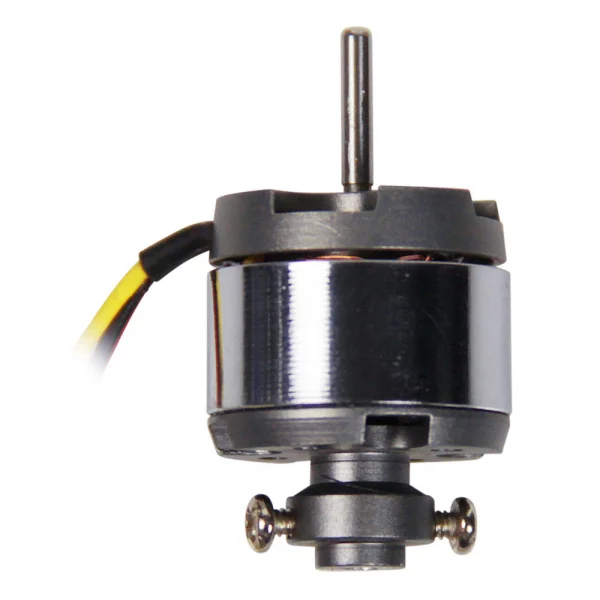

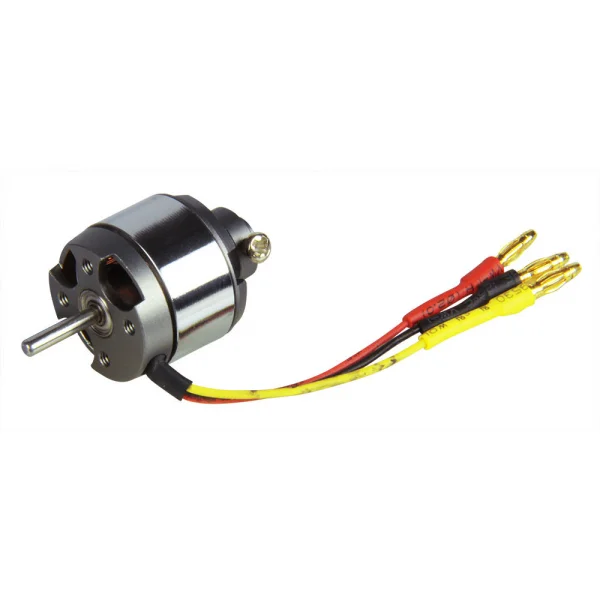

ROXXY BL Outrunner (C18-15-17)

Multiplex, a name thats synonymous with quality, has stamped its seal of approval on the Roxxy brushless range, and when you look closely at the product, you can see why. Sporting neodymium magnets these high-torque, state-of-the-art, no-compromise motors offer supreme efficiency, a service-friendly replaceable motor shaft, turbine-smooth running (via large, precision ball races), optional front or rear mounting and the ability to turn large direct-drive propellers. They are, quite simply, the cream of the crop.

Note: Since figures relating to Burst Current and Continuous Current draw are dependant on the propeller used, please refer to the Roxxy Propeller Performance Chat available at the foot of the page as a .pdf download.

Specification:

ROXXY BL Outrunner (C18-15-17) Tech Specs:

ROXXY BL Outrunner (C18-15-17) Key Features:

• Multiplex, a name thats synonymous with quality, has stamped its seal of approval on the Roxxy brushless range, and when you look closely at the product, you can see why. Sporting neodymium magnets these high-torque, state-of-the-art, no-compromise motors offer supreme efficiency, a service-friendly replaceable motor shaft, turbine-smooth running (via large, precision ball races), optional front or rear mounting and the ability to turn large direct-drive propellers. They are, quite simply, the cream of the crop.

  Note: Since figures relating to Burst Current and Continuous Current draw are dependant on the propeller used, please refer to the Roxxy Propeller Performance Chat available at the foot of the page as a .pdf download.



  Specification:

  kV (RPM/V):	2900
  Width (mm):	18
  Length (mm):	21
  Weight (g):	13
  Shaft diameter (mm):	2
  Voltage range (V):	7 - 9
  Wattage (W):	40
  Recommended battery (LiPo):	2S

• Suits E-gliders up to 200g.
• Suits sport and scale designs up to 150g.
• Suits aerobatic and 3D aircraft up to 95g.
• Super-efficient high quality neodymium magnets.
• Large, precision ball races.
• Front / rear mounting.
• High torque.

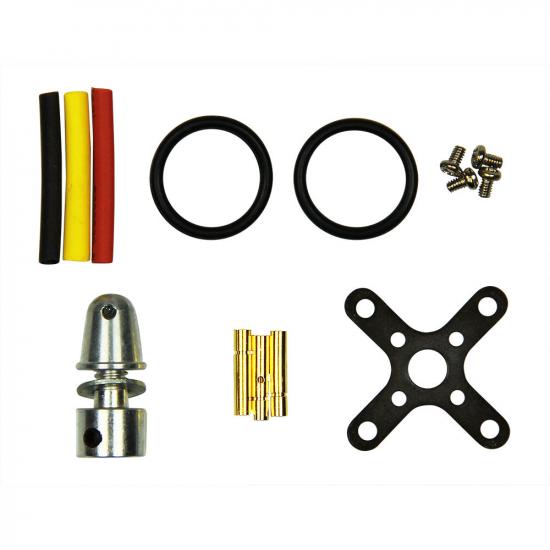

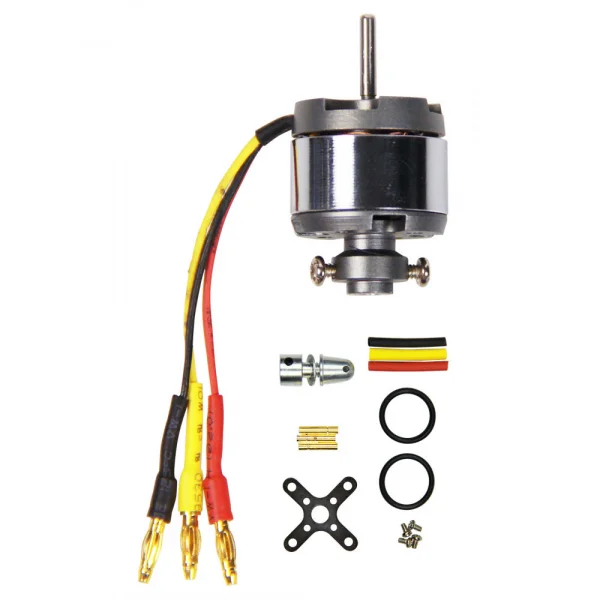

What's in the Box:

• 1x C18-15-17 motor.
• 1x Propeller adaptor.
• 1x Cross mount.
• 4x Cross mount screws.
• 2x Prop saver rings.
• 3x Bullet connectors.
• 1x Heat-shrink tube set.

Manuals & Parts Explosions:

ROXXY BL Outrunner (C18-15-17) Tech Specs:

• Weight: 13g / 0.46oz
• Shipping Weight: 0.07kg / 0.16lbs
• Product Length: 21mm / 0.83in
• Product Diameter: 18mm / 0.71in

• Age Recommendation: 14+

• Brand: Multiplex
• Part No: MPX314938
• Barcode: 4041033099384
