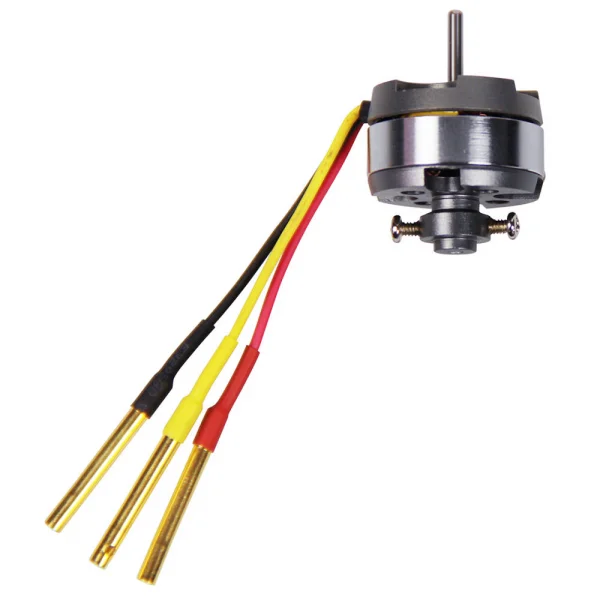

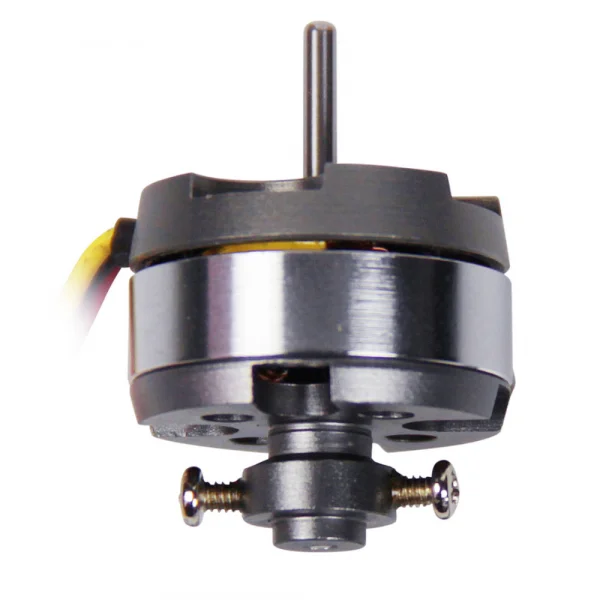

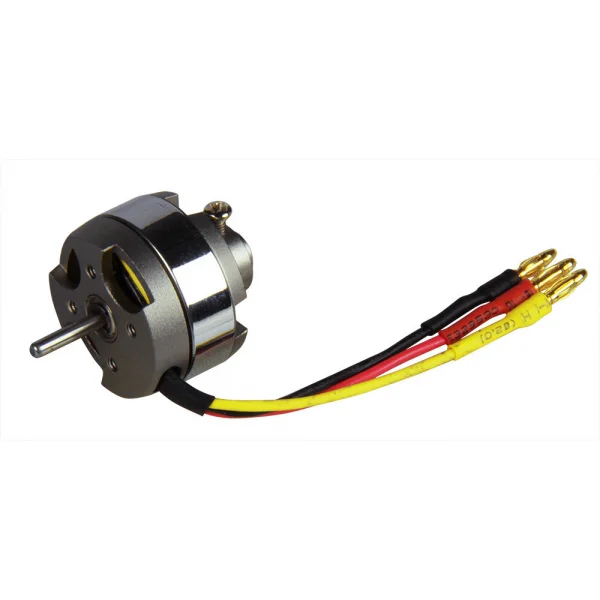

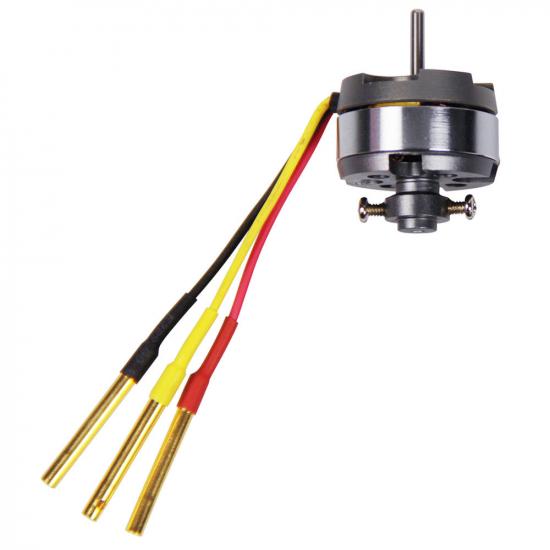

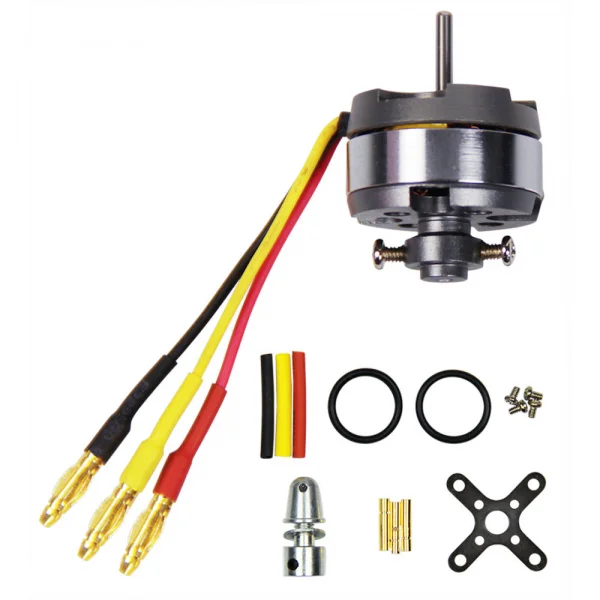

ROXXY BL Outrunner (C22-14-31)
Brand: Multiplex
Part No: MPX314944
Shadow Stock: Usually ships next day
The Multiplex ROXXY BL Outrunner (C22-14-31), part number MPX314944, is a compact 14‑pole brushless motor designed for efficient, high‑torque electric power. Using high‑grade neodymium magnets and a 22 mm diameter stator, this outrunner delivers smooth, reliable performance without the need for a gearbox, making it ideal for direct‑drive applications.
Large precision ballraces ensure low‑friction running, while the motor’s construction allows mounting from either end to suit your installation. With a 2 mm shaft and 2280 kV wind delivering 50 W, it provides a practical, lightweight power solution.
Key Features
- 2280kV
- 50W
- 22mm motor diameter
- 2mm shaft diameter
- Maximum copper fill ratio and neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted by either end
Tech Specs
- Pole Count: 14
- Weight: 16g (0.56oz)
- Length: 21mm (0.83in)
- Diameter: 22mm (0.87in)
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
- Shipping Weight: 0.08kg (0.17lbs)
Secured by Stripe
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted by either end
ROXXY BL Outrunner (C22-14-31) Key Features:
- 2280kV
- 50W
- 22mm motor diameter.
- 2mm shaft diameter.
Manuals & Parts Explosions:
ROXXY BL Outrunner (C22-14-31) Tech Specs:
- Weight: 16g / 0.56oz
- Shipping Weight: 0.08kg / 0.17lbs
- Product Length: 21mm / 0.83in
- Product Diameter: 22mm / 0.87in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314944
- Barcode: 4041033109441
