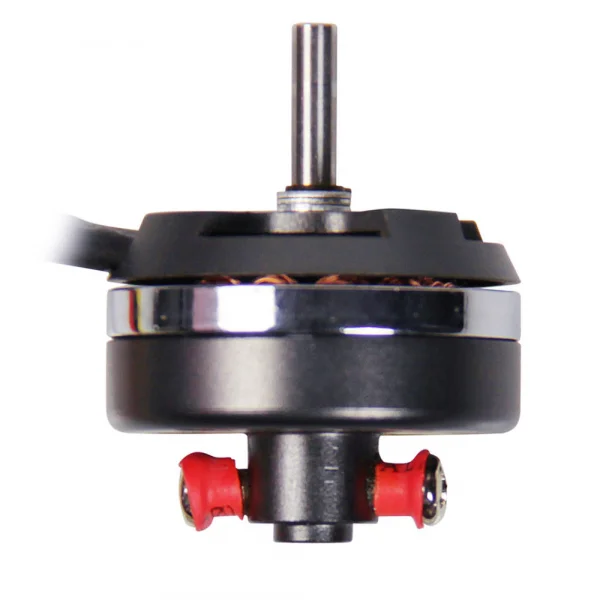

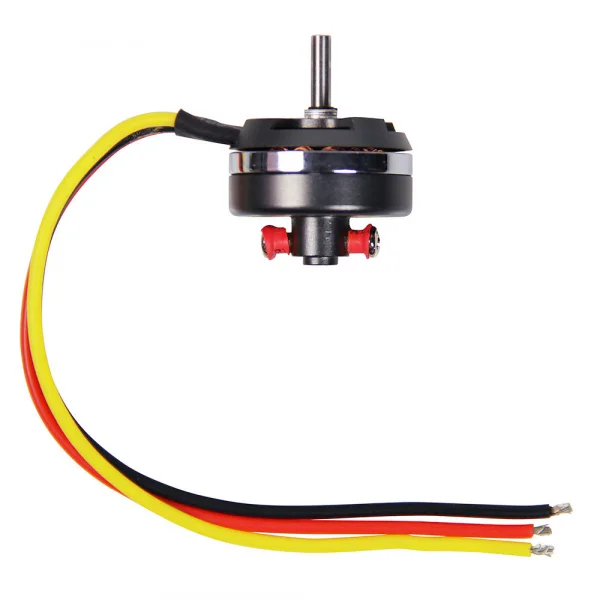

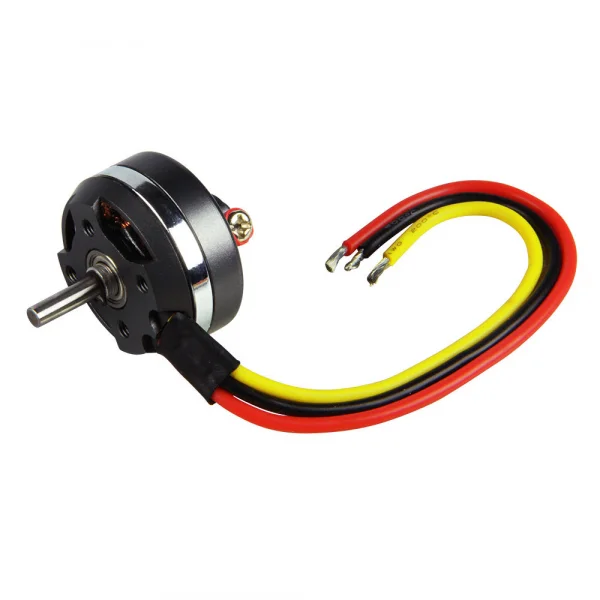

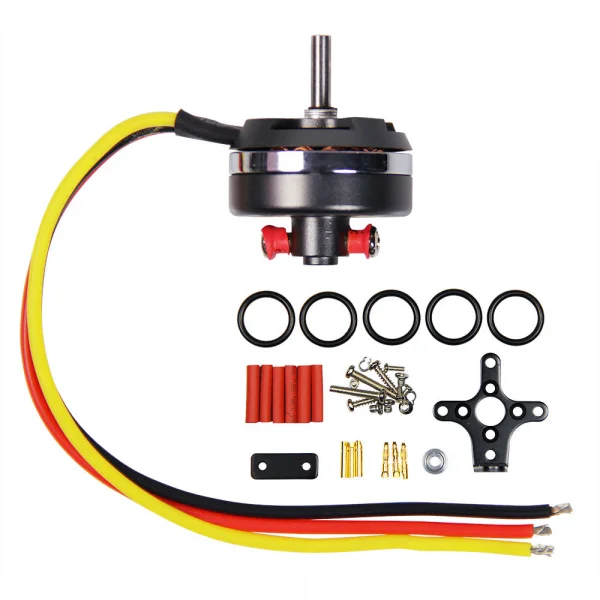

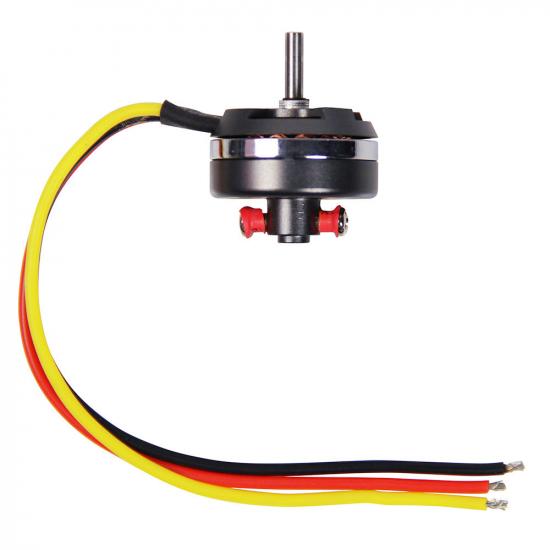

Multiplex ROXXY C28-15 1100kV Outrunner Motor
Brand: Multiplex
Part No: MPX314777
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description
The Multiplex ROXXY BL Outrunner (C28-15) is a compact 14‑pole brushless outrunner engineered for efficient, high‑torque performance. Built with high‑quality neodymium magnets and a maximum copper fill ratio, this motor delivers excellent efficiency for direct‑drive applications, often enabling the use of larger propellers without a gearbox. Large precision ball bearings ensure smooth running, and the design allows mounting from either end to suit your installation. Part number MPX314777.
Key Features
- 14‑pole brushless outrunner with high‑quality neodymium magnets
- High efficiency due to maximum copper fill
- Smooth running via large precision ball bearings
- Can be mounted by either end
- 1100kV
- 40W output
- Voltage range: 7–9V
- 28mm motor diameter
- 3.2mm shaft diameter
Tech Specs
- Weight: 33g (1.16oz)
- Product length: 25mm (0.98in)
- Product diameter: 28mm (1.10in)
- Connector: Bullet
- Colour: Silver
- Material: Steel
- Age recommendation: 14+
- Shipping weight: 0.12kg (0.26lbs)
With its efficient design and smooth operation, the ROXXY C28‑15 offers a reliable brushless power solution for direct‑drive setups where compact size and low weight are important.
Secured by Stripe
ROXXY BL Outrunner (C28-15) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g
ROXXY BL Outrunner (C28-15) Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- 1100kV
- 40W
- 28mm motor diameter.
- 3.2mm shaft diameter.
- Voltage range: 7 - 9V

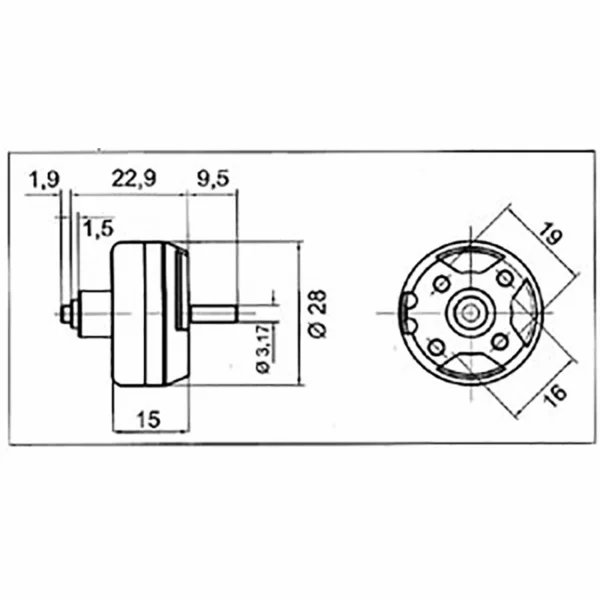

Manuals & Parts Explosions:
ROXXY BL Outrunner (C28-15) Tech Specs:
- Weight: 33g / 1.16oz
- Shipping Weight: 0.12kg / 0.26lbs
- Product Length: 25mm / 0.98in
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314777
- Barcode: 4041033027776
