Multiplex ROXXY BL Outrunner C28-22-25 Motor
Brand: Multiplex
Part No: MPX314950
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description

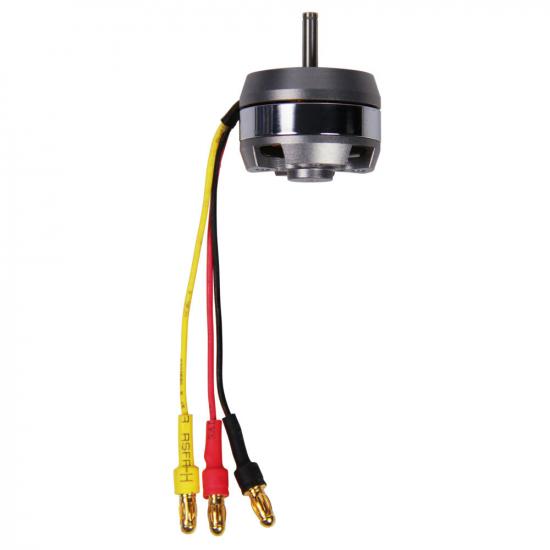

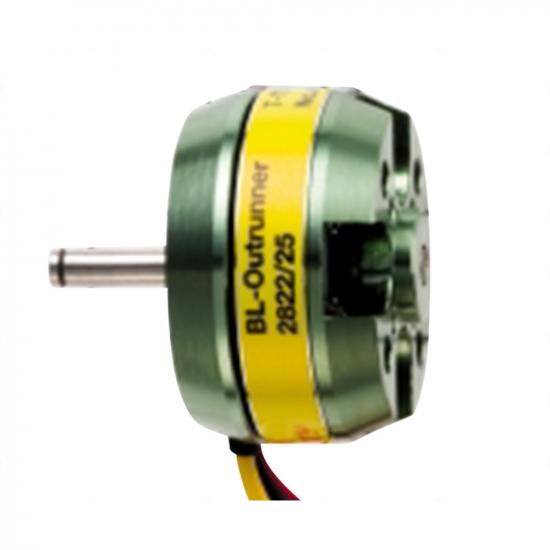

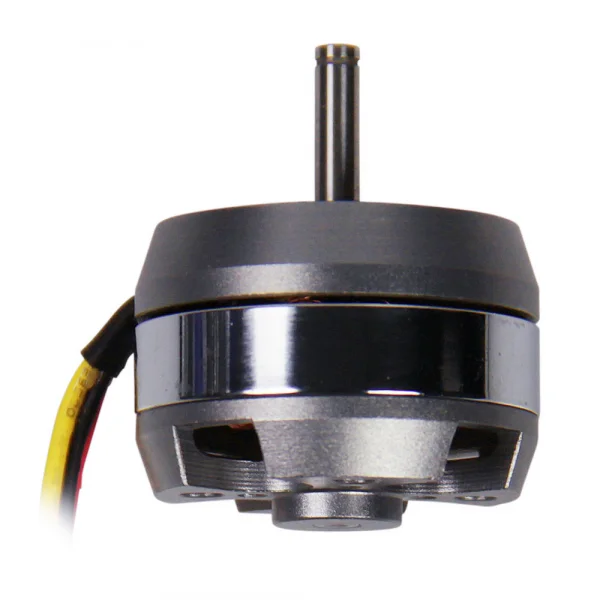

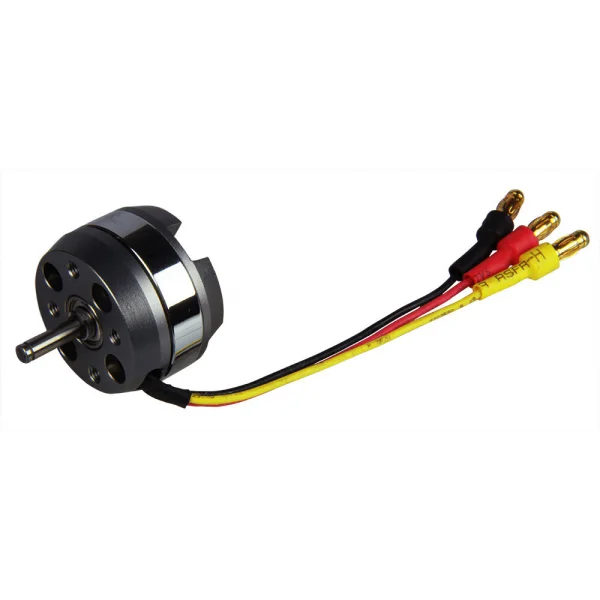

The Multiplex ROXXY BL Outrunner (C28-22-25), part number MPX314950, is a compact 14‑pole brushless motor designed for efficient, high‑torque direct‑drive setups. Its neodymium magnets and precision ball bearings support smooth running and reliable performance across a 7–15 V operating range.
Key Features
- 14‑pole brushless outrunner design
- High efficiency from maximum copper fill and quality neodymium magnets
- Smooth running via large precision ball bearings
- Can be mounted by either end
- 1380 kV rating
- 100 W power

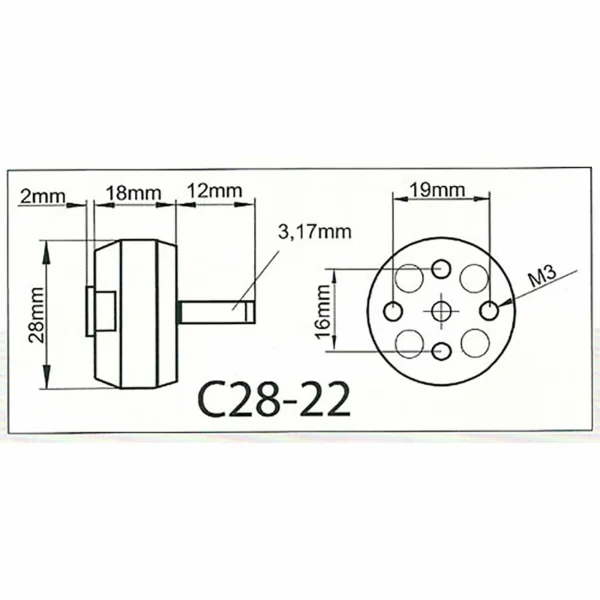

- 28 mm motor diameter
- 3.2 mm shaft diameter
- Voltage range: 7–15 V
Tech Specs
- Weight: 30 g (1.06 oz)
- Product length: 20 mm (0.79 in)
- Product diameter: 28 mm (1.10 in)
- Connector: Bullet
- Colour: Silver
- Material: Steel
- Age recommendation: 14+
- Shipping weight: 0.10 kg (0.22 lbs)
The outrunner construction often allows the use of larger propellers without a gearbox, making it well suited to direct‑drive applications.
Secured by Stripe
ROXXY BL Outrunner (C28-22-25) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g
ROXXY BL Outrunner (C28-22-25) Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- 1380kV
- 100W
- 28mm motor diameter.
- 3.2mm shaft diameter.
- Voltage range: 7 - 15V
Manuals & Parts Explosions:
ROXXY BL Outrunner (C28-22-25) Tech Specs:
- Weight: 30g / 1.06oz
- Shipping Weight: 0.10kg / 0.22lbs
- Product Length: 20mm / 0.79in
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314950
- Barcode: 4041033089507
