Multiplex ROXXY BL Outrunner C28-22-27 1270kV
Brand: Multiplex
Part No: MPX314951
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description

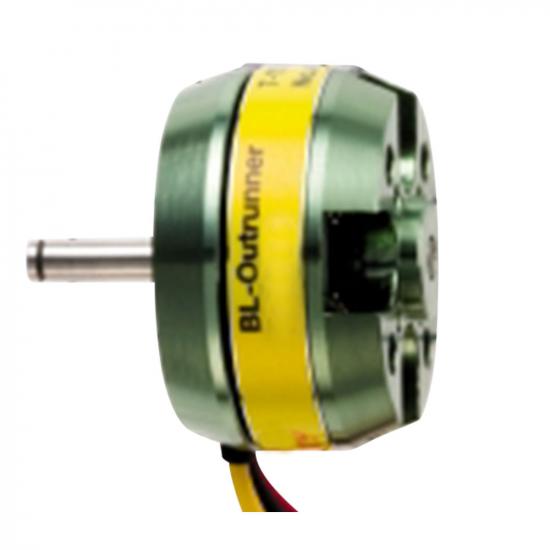

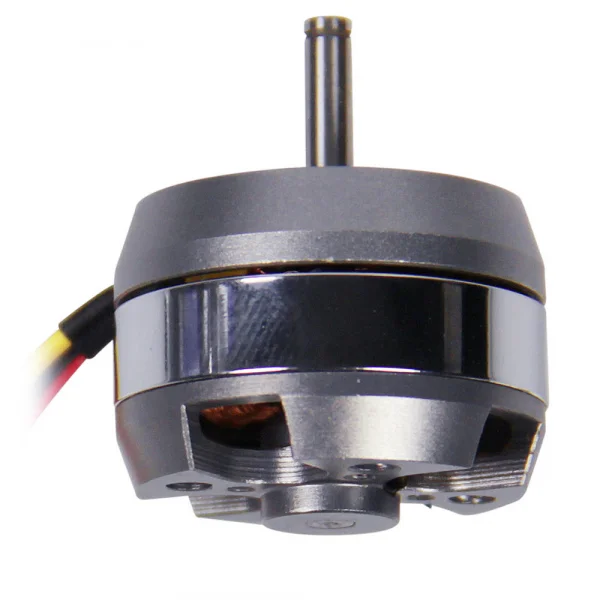

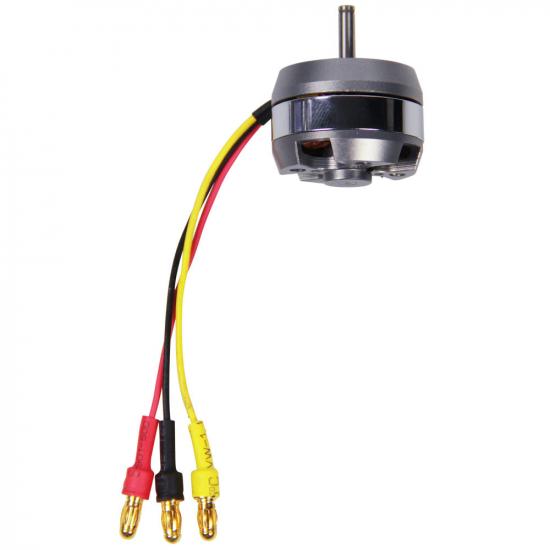

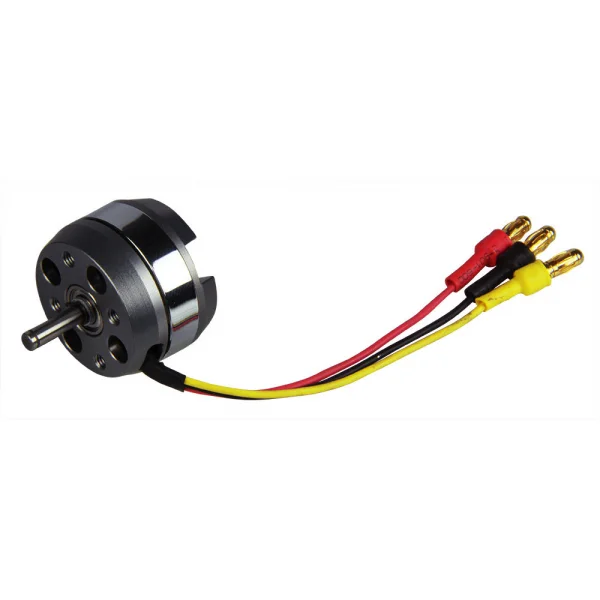

The Multiplex ROXXY BL Outrunner (C28-22-27) is a compact 14‑pole brushless motor designed for efficient direct-drive propulsion. Featuring neodymium magnets and a high copper fill ratio, it delivers smooth, high-torque performance suited to driving larger propellers without a gearbox. Rated at 90W with a 1270kV wind and operating across 7–15V, it offers a versatile setup in a lightweight package. Part number: MPX314951.
Key Features
- 14‑pole brushless outrunner design
- High efficiency from maximum copper filling and neodymium magnets
- Large precision ball bearings for smooth running
- Can be mounted by either end
- 1270kV
- Rated power: 90W

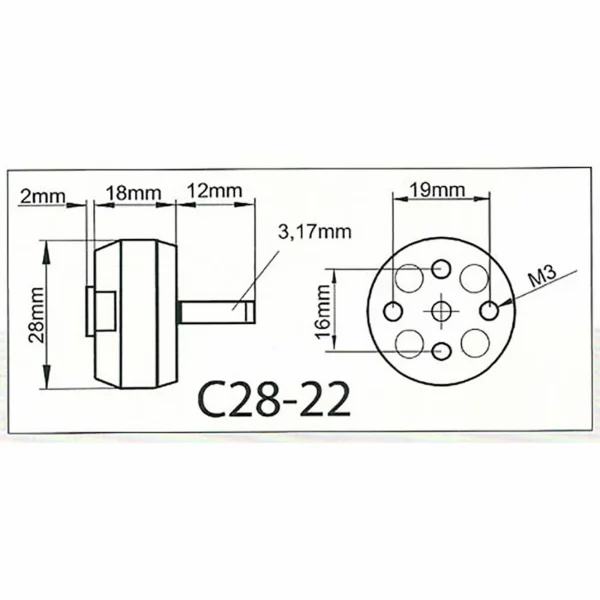

- 28mm motor diameter
- 3.2mm shaft diameter
- Voltage range: 7–15V
Tech Specs
- Weight: 30g / 1.06oz
- Shipping Weight: 0.10kg / 0.22lbs
- Product Length: 20mm / 0.79in
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Secured by Stripe
ROXXY BL Outrunner (C28-22-27) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g
ROXXY BL Outrunner (C28-22-27) Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- 1270kV
- 90W
- 28mm motor diameter.
- 3.2mm shaft diameter.
- Voltage range: 7 - 15V
Manuals & Parts Explosions:
ROXXY BL Outrunner (C28-22-27) Tech Specs:
- Weight: 30g / 1.06oz
- Shipping Weight: 0.10kg / 0.22lbs
- Product Length: 20mm / 0.79in
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314951
- Barcode: 4041033109519
