Description

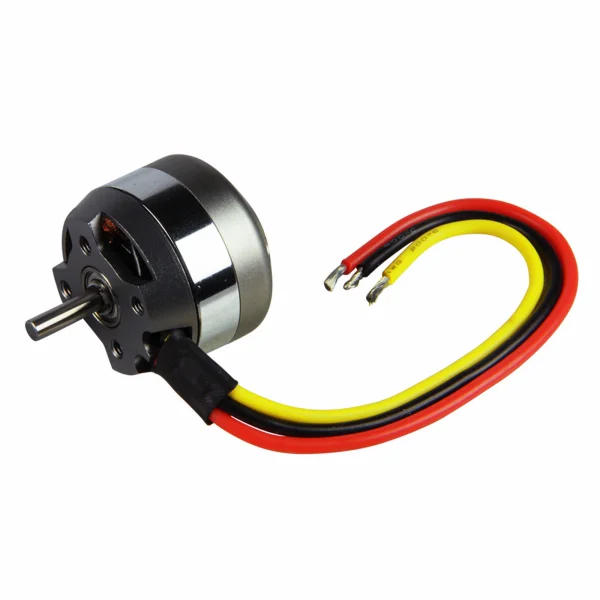

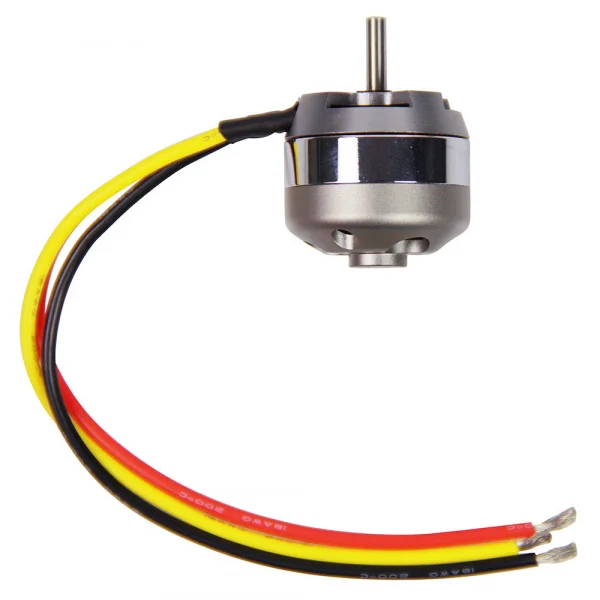

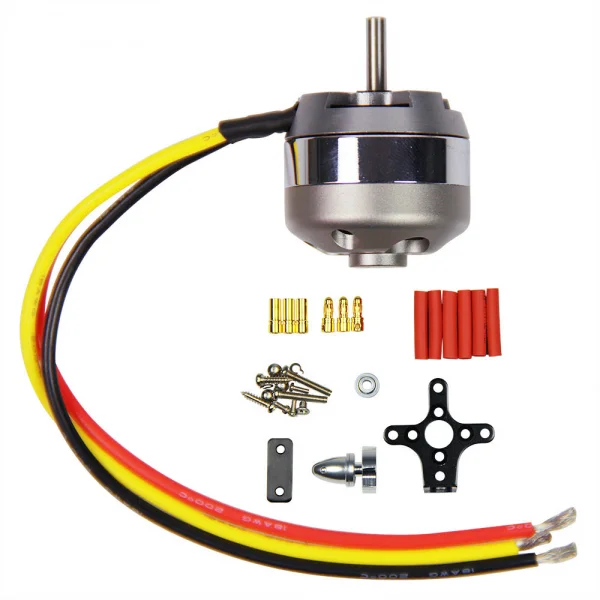

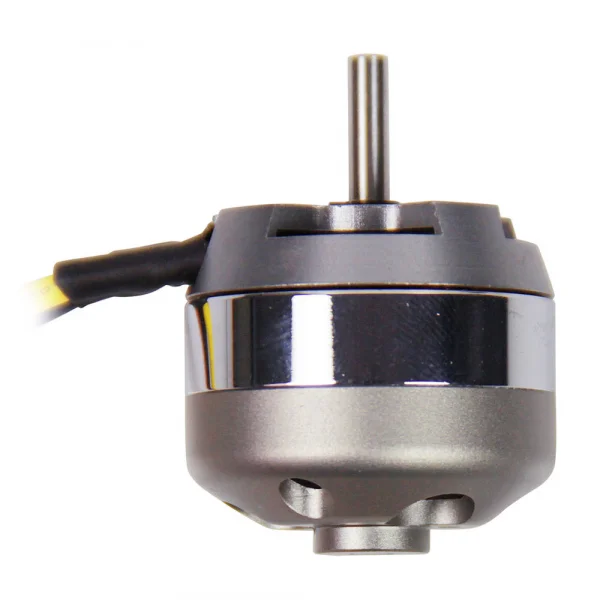

The Multiplex ROXXY BL Outrunner (C28-24-26), part number MPX314778, is a 14-pole brushless outrunner motor that uses neodymium magnets to power electric model aircraft. As an outrunner it needs no reduction gearbox, and its construction often allows it to turn large propellers directly, which makes it well suited to direct-drive installations.
The windings are laid with a maximum copper fill ratio and the motor relies on neodymium magnets to keep efficiency high. Three bearings, including large precision ball races, support smooth running, and the motor can be mounted at either end. It is rated at 1380KV and 105W and works across a 7 to 12V range.
Multiplex gives suggested uses by model type: e-sailplanes up to 500 g, scale and sport models up to 400 g, and aerobatic and 3D models up to 250 g. Please check your own airframe, propeller and battery choices against these figures before fitting.

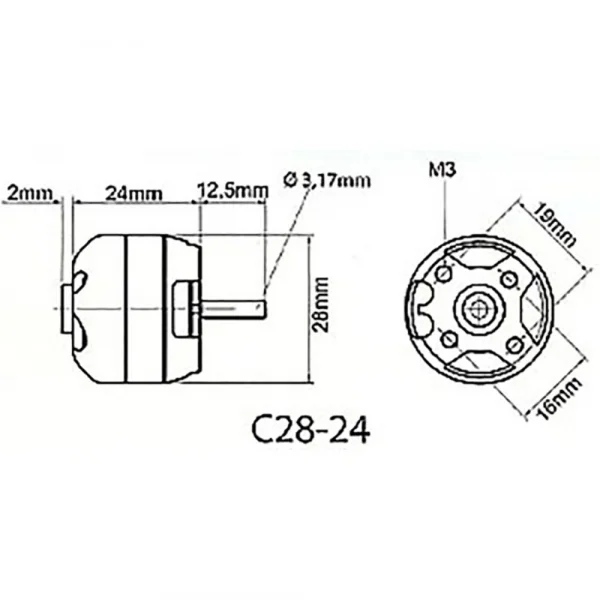

Specifications
- Speed constant: 1380KV
- Power: 105W
- Voltage range: 7 to 12V
- Can diameter: 28 mm
- Length: 26 mm
- Shaft diameter: 3.2 mm
- Weight: 48 g
- Recommended age: 14+
Secured by Stripe
ROXXY BL Outrunner (C28-24-26) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g
ROXXY BL Outrunner (C28-24-26) Key Features:
- 14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g - 1380KV.
- 105W.
- Three bearings.
- 28mm can diameter.
- 3.2mm shaft diameter.
- Voltage range: 7 12V
ROXXY BL Outrunner (C28-24-26) Tech Specs:
- Weight: 48g / 1.69oz
- Shipping Weight: 0.14kg / 0.30lbs
- Product Length: 26mm / 1.02in
- Product Diameter: 28mm / 1.10in
- Age Recommendation: 14+
Key Info:
- Brand: Multiplex
- Part No: MPX314778
- Barcode: 4041033027783
