ROXXY BL Outrunner (C28-26-09)
Brand: Multiplex
Part No: MPX314952
Shadow Stock: Usually ships next day

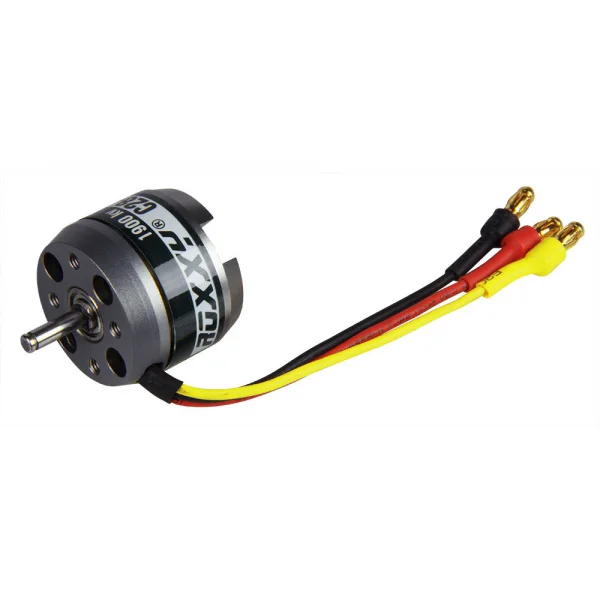

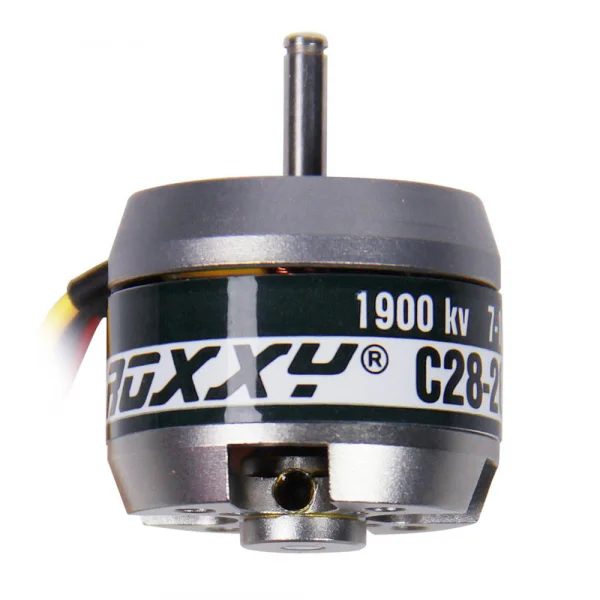

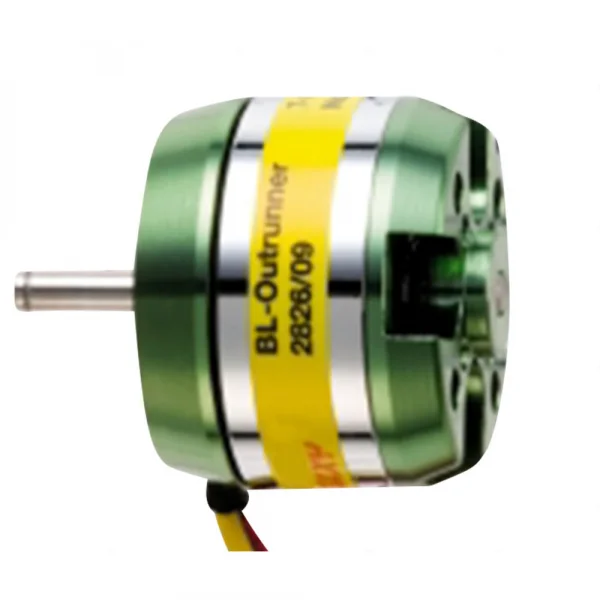

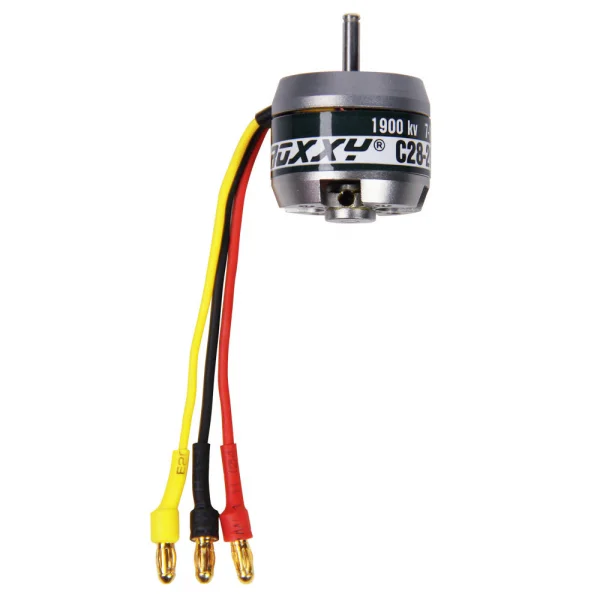

The Multiplex ROXXY BL Outrunner (C28-26-09), part number MPX314952, is a 14‑pole brushless motor designed for efficient, high‑torque direct‑drive applications. Using neodymium magnets and a high copper fill, it delivers smooth, responsive power without the need for a gearbox.
With a 1900kV rating and 190W power capability across a 7–12V operating range, this compact 28mm unit focuses on efficiency and low vibration. Large precision ball bearings and the option to mount by either end support flexible, reliable installations.
Key Features
- 14‑pole brushless outrunner with neodymium magnets
- Maximum copper fill ratio for high efficiency
- Large, precision ball bearings for smooth running
- Can be mounted by either end
- 1900kV, 190W
- Voltage range: 7–12V
- 28mm motor diameter; 3.2mm shaft
Tech Specs
- Weight: 30g (1.06oz)
- Product length: 23mm (0.91in)
- Product diameter: 28mm (1.10in)
- Connector: Bullet
- Colour: Silver
- Material: Steel
- Age recommendation: 14+
- Shipping weight: 0.13kg (0.28lb)
Secured by Stripe
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g
ROXXY BL Outrunner (C28-26-09) Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- 1900kV
- 190W
- 28mm motor diameter.
- 3.2mm shaft diameter.
- Voltage range: 7 - 12V
Manuals & Parts Explosions:
ROXXY BL Outrunner (C28-26-09) Tech Specs:
- Weight: 30g / 1.06oz
- Shipping Weight: 0.13kg / 0.28lbs
- Product Length: 23mm / 0.91in
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314952
- Barcode: 4041033089521
