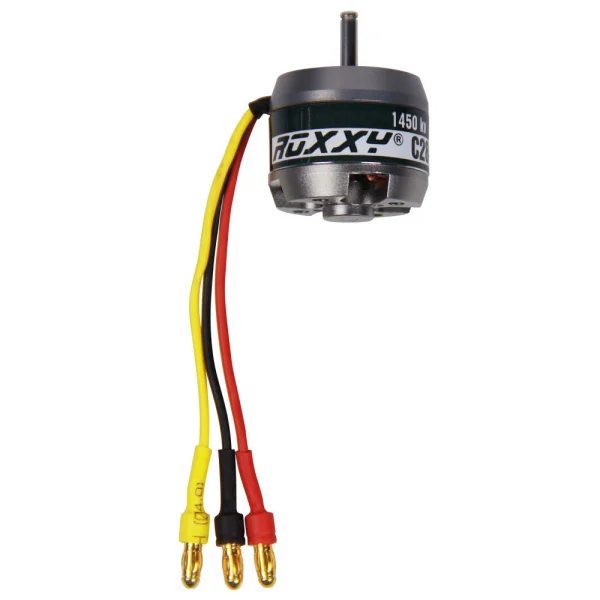

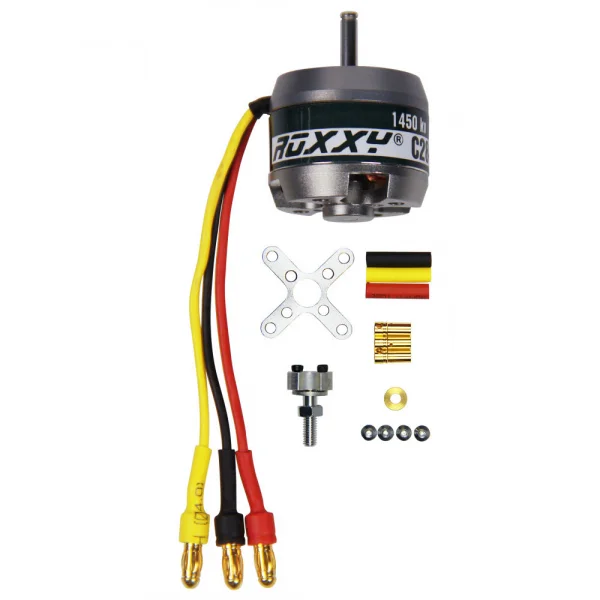

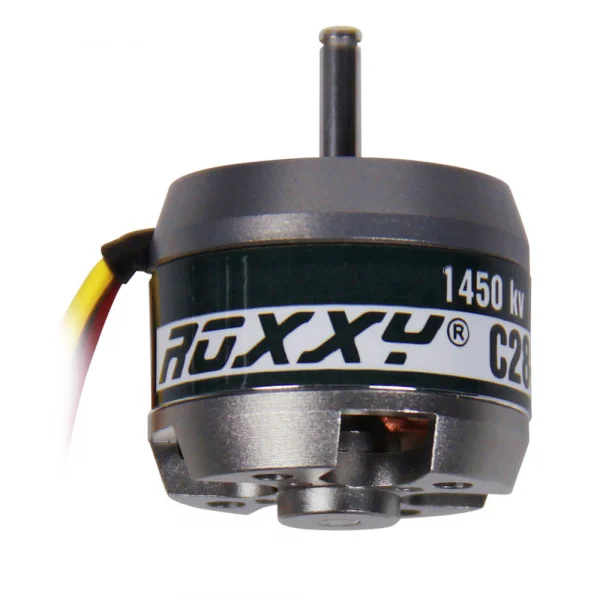

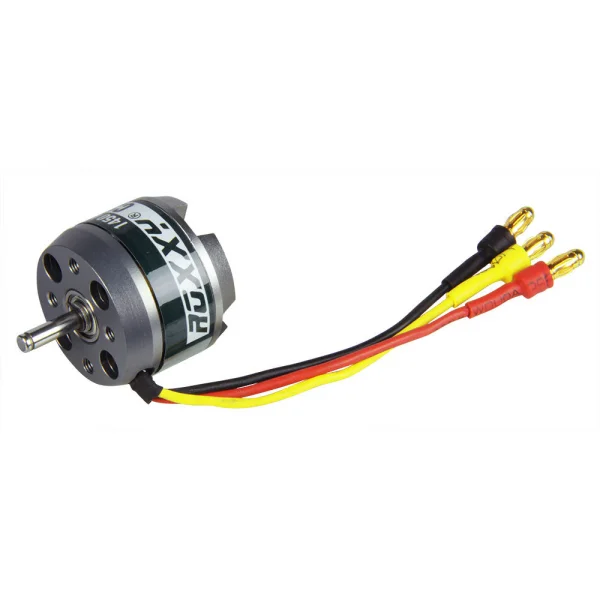

ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)
ROXXY BL Outrunner (C28-26-12)

ROXXY BL Outrunner (C28-26-12)

Brand: Multiplex

Part No: MPX314953

£39.07 RRP £43.90
Pre-Order
Request Price Match Ask a Question Write a Review

The Multiplex ROXXY BL Outrunner (C28-26-12) is a compact, high-efficiency 14‑pole brushless motor designed for direct-drive applications in electric model aircraft. Utilising superior neodymium magnets and maximum copper fill, it delivers strong torque and smooth running without the need for a gearbox.

With a 1450kV rating and 170W power capability, this 28mm class motor balances performance and practicality for lightweight setups. Large precision ball bearings enhance reliability, while the option to mount the motor from either end offers flexibility during installation. The 3.2mm shaft and bullet connectors make integration straightforward within the stated 7–12V operating range.

Key Features

  • 14‑pole brushless outrunner design
  • High efficiency due to maximum copper filling and high‑quality neodymium magnets
  • Smooth running thanks to large precision ball bearings
  • Can be mounted by either end
  • 1450kV
  • 170W
  • 28mm motor diameter
  • 3.2mm shaft diameter
  • Voltage range: 7–12V

Tech Specs

  • Weight: 45g / 1.59oz
  • Shipping Weight: 0.11kg / 0.24lbs
  • Product Length: 23mm / 0.91in
  • Product Diameter: 28mm / 1.10in
  • Connector: Bullet
  • Age Recommendation: 14+
  • Colour: Silver
  • Material: Steel
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

14-pole brushless outrunner motors

Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.

The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.

  • Maximum copper fill ratio and superior neodymium magnets for high efficiency
  • Large, precision ballraces ensure smooth running
  • Can be mounted at either end

Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g

ROXXY BL Outrunner (C28-26-12) Key Features:

  • High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
  • Smooth running thanks to large precision ball bearings
  • 1450kV
  • 170W
  • 28mm motor diameter.
  • 3.2mm shaft diameter.
  • Voltage range: 7 - 12V

Manuals & Parts Explosions:

Manual

ROXXY BL Outrunner (C28-26-12) Tech Specs:

  • Weight: 45g / 1.59oz
  • Shipping Weight: 0.11kg / 0.24lbs
  • Product Length: 23mm / 0.91in
  • Product Diameter: 28mm / 1.10in
  • Connector: Bullet
  • Age Recommendation: 14+
  • Colour: Silver
  • Material: Steel


    Key Info:
    • Brand: Multiplex
    • Part No: MPX314953
    • Barcode: 4041033099537
