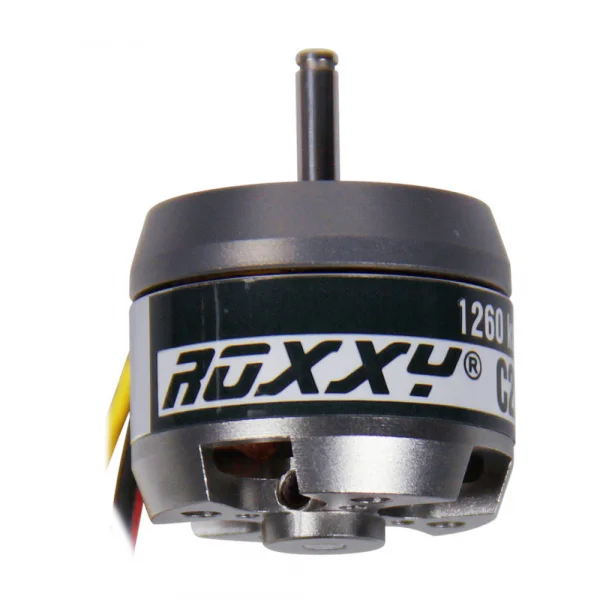

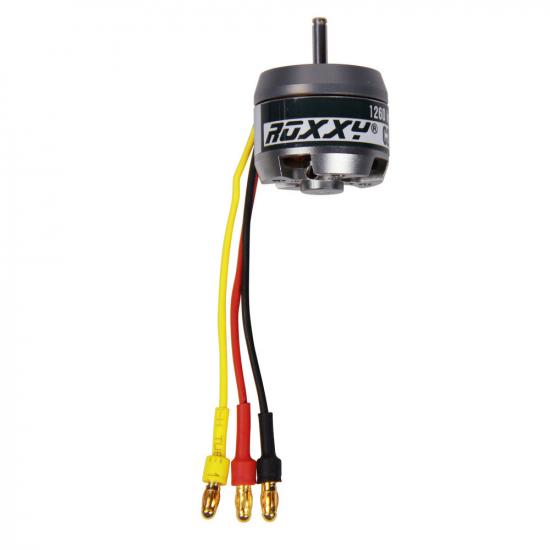

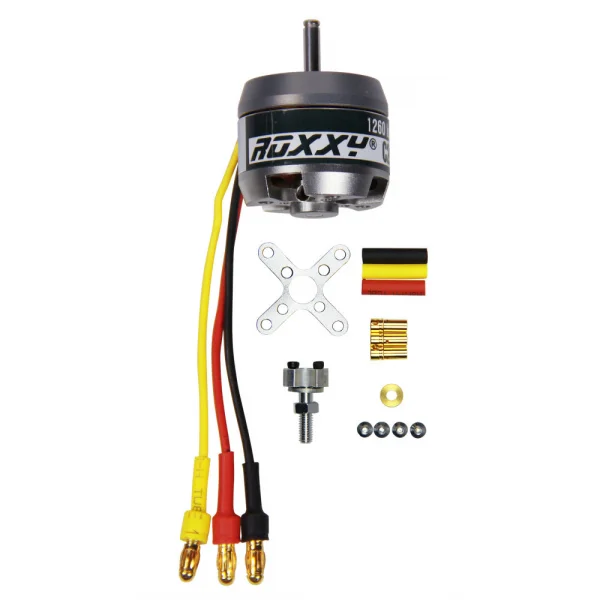

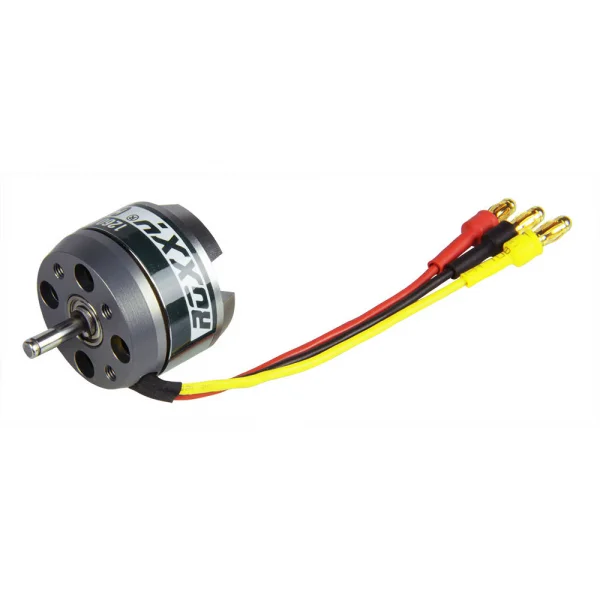

Multiplex ROXXY BL Outrunner C28-26-14 1260kV
Brand: Multiplex
Part No: MPX314954
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Description
The Multiplex ROXXY BL Outrunner (C28-26-14) is a compact, 14‑pole brushless motor engineered for efficient, high‑torque direct‑drive applications. Utilising high‑quality neodymium magnets and large precision ball bearings, it offers smooth running and the ability to turn larger propellers without a gearbox. At just 28 mm in diameter and 45 g, the MPX314954 provides strong performance in a small, lightweight package.
Key Features
- High efficiency from maximum copper filling and neodymium magnets
- Smooth running via large precision ball bearings
- Can be mounted by either end
- 1260kV
- 150W
- Voltage range: 7–12V
Tech Specs
- Motor diameter: 28 mm
- Length: 23 mm
- Shaft diameter: 3.2 mm
- Weight: 45 g
- Connector: Bullet
- Material: Steel
- Colour: Silver
- Age recommendation: 14+
- Part number: MPX314954
Secured by Stripe
ROXXY BL Outrunner (C28-26-14) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g
ROXXY BL Outrunner (C28-26-14) Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- 1260kV
- 150W
- 28mm motor diameter.
- 3.2mm shaft diameter.
- Voltage range: 7 - 12V
Manuals & Parts Explosions:
ROXXY BL Outrunner (C28-26-14) Tech Specs:
- Weight: 45g / 1.59oz
- Shipping Weight: 0.11kg / 0.24lbs
- Product Length: 23mm / 0.91in
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314954
- Barcode: 4041033079546
