Multiplex ROXXY BL Outrunner C28-27-26 930kV
Brand: Multiplex
Part No: MPX315079
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description
The Multiplex ROXXY BL Outrunner (C28-27-26), part number MPX315079, is a compact 14‑pole brushless outrunner engineered for efficient, direct‑drive applications. Its high copper fill and quality neodymium magnets deliver strong torque and smooth running without the need for a gearbox. With a 930kV rating and 110W output across 7–12V, this 28mm unit balances performance and efficiency in a durable, precisely machined package.
Key Features
- 14‑pole brushless outrunner design for efficient, high‑torque power
- High efficiency through maximum copper filling and neodymium magnets
- Large precision ball bearings for smooth operation
- Can be mounted by either end for flexible installation
- 930kV; 110W output
- Voltage range: 7–12V

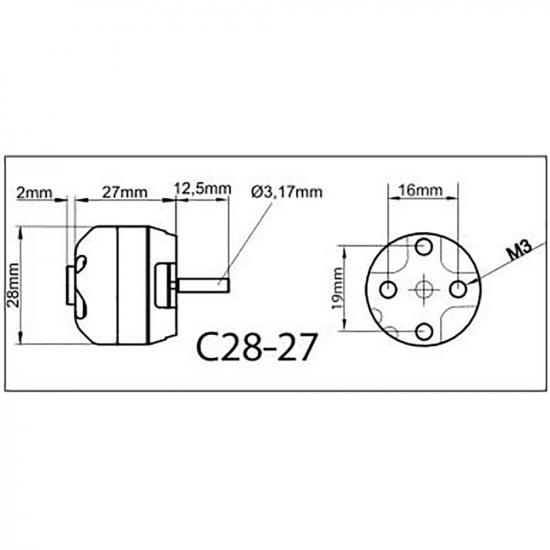

- 28mm motor diameter; 3.2mm shaft diameter
Tech Specs
- Weight: 57g / 2.01oz
- Product Length: 29mm / 1.14in
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
- Shipping Weight: 0.13kg / 0.28lbs
Secured by Stripe
ROXXY BL Outrunner (C28-27-26) Manuals & Guides
Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g
ROXXY BL Outrunner (C28-27-26) Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- 930kV
- 110W
- 28mm motor diameter.
- 3.2mm shaft diameter.
- Voltage range: 7 - 12V
Manuals & Parts Explosions:
ROXXY BL Outrunner (C28-27-26) Tech Specs:
- Weight: 57g / 2.01oz
- Shipping Weight: 0.13kg / 0.28lbs
- Product Length: 29mm / 1.14in
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX315079
- Barcode: 4041033150795
