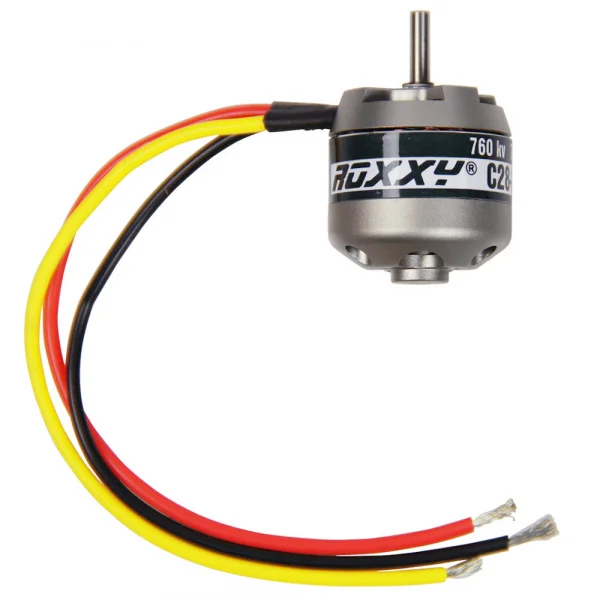

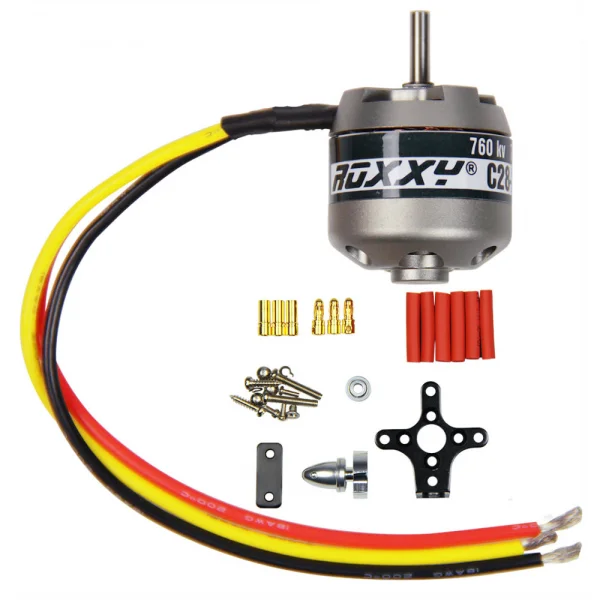

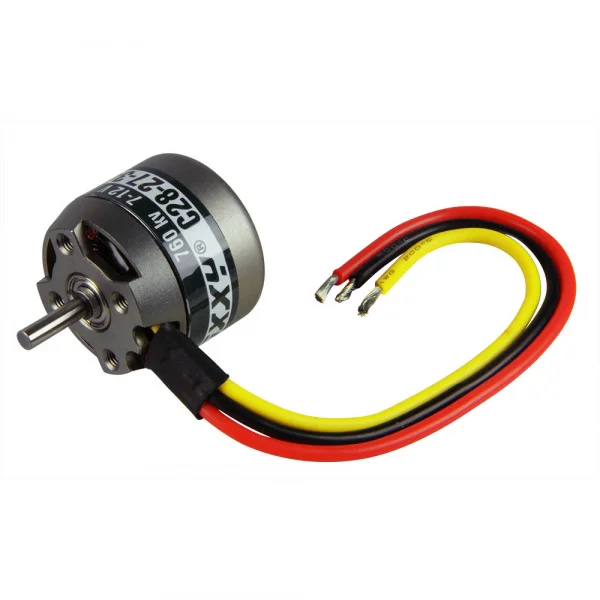

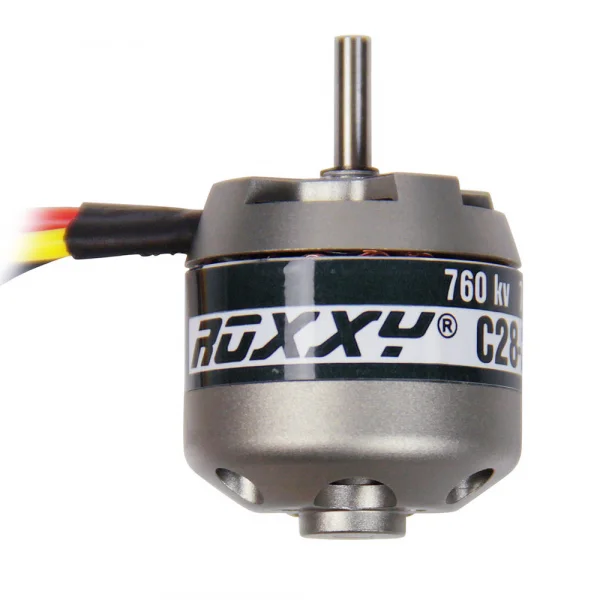

ROXXY BL Outrunner (C28-27-34)
Brand: Multiplex
Part No: MPX315080
Shadow Stock: Usually ships next day
The Multiplex ROXXY BL Outrunner (C28-27-34), part number MPX315080, is a 14‑pole brushless outrunner designed for efficient, direct‑drive applications. Featuring high‑quality neodymium magnets and large precision ball bearings, it delivers smooth running and excellent power density without the need for a gearbox.
Key Features
- 14‑pole brushless outrunner design
- High efficiency from maximum copper fill and neodymium magnets
- Smooth running via large precision ball bearings
- Can be mounted by either end
- 760kV, 110W performance
- Voltage range: 7–12V
- Bullet connectors

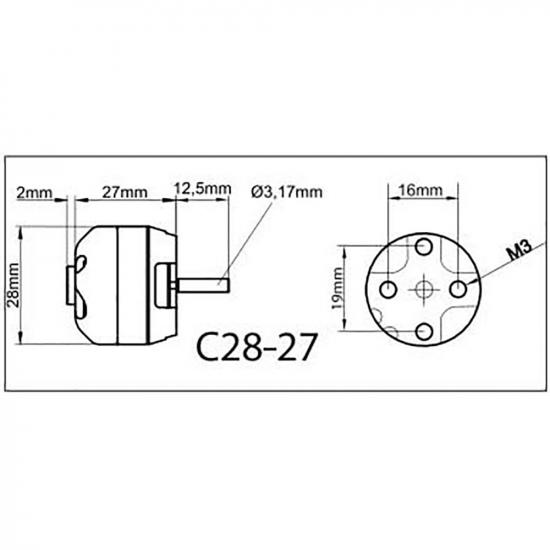

Technical Specifications
- Motor diameter: 28mm
- Motor length: 29mm
- Shaft diameter: 3.2mm
- Weight: 57g
- Colour: Silver
- Material: Steel
- Age recommendation: 14+
- Shipping weight: 0.15kg
The special construction of this outrunner allows it to turn larger propellers efficiently in direct‑drive setups, making it a versatile choice across a broad range of power levels.
Secured by Stripe
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g
ROXXY BL Outrunner (C28-27-34) Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- 760kV
- 110W
- 28mm motor diameter.
- 3.2mm shaft diameter.
- Voltage range: 7 - 12V
Manuals & Parts Explosions:
ROXXY BL Outrunner (C28-27-34) Tech Specs:
- Weight: 57g / 2.01oz
- Shipping Weight: 0.15kg / 0.32lbs
- Product Length: 29mm / 1.14in
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX315080
- Barcode: 4041033190807
