ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)
ROXXY BL Outrunner (C28-30-09)

ROXXY BL Outrunner (C28-30-09)

Brand: Multiplex

Part No: MPX314955

£39.07 RRP £43.90
Pre-Order
Request Price Match Ask a Question Write a Review

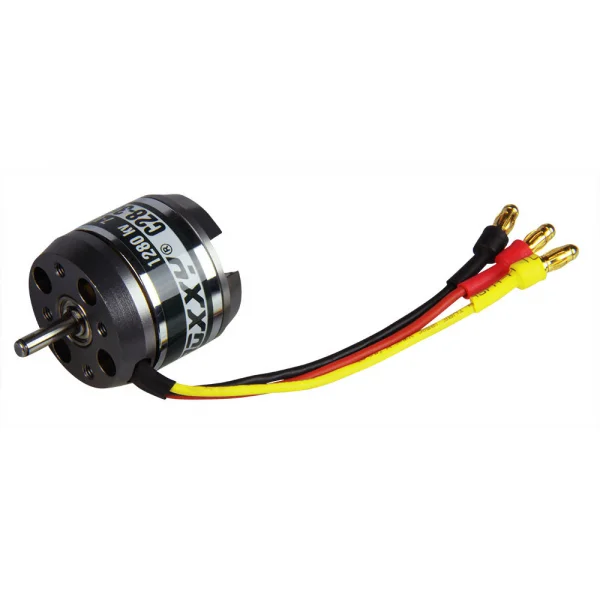

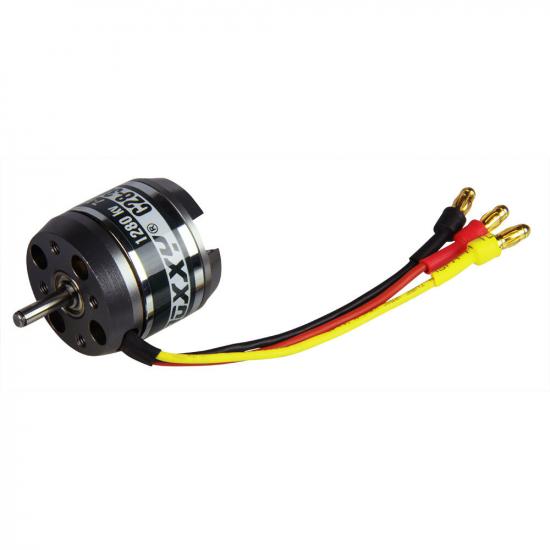

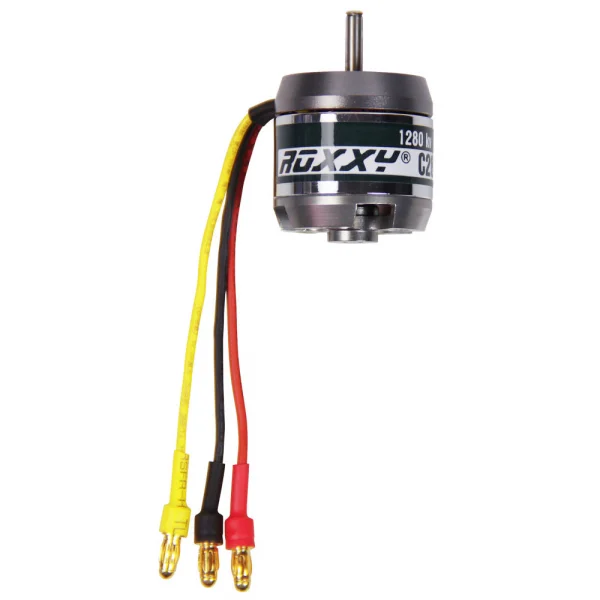

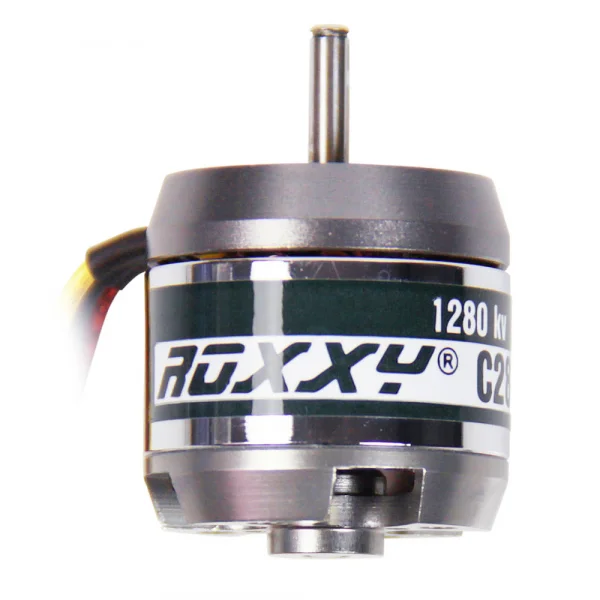

The Multiplex ROXXY BL Outrunner (C28-30-09) is a 14‑pole brushless motor built for efficiency and smooth running. Using high‑quality neodymium magnets and a maximum copper fill, it delivers strong torque typical of outrunners and is ideal for direct‑drive applications, often able to turn larger propellers without a gearbox. Large precision ball bearings ensure reliable, low‑friction performance, and the motor can be mounted from either end. Part number: MPX314955.

Key Features

  • 1280kV brushless outrunner with high torque characteristics
  • 220W power rating; 7–12V operating range
  • 28mm motor diameter with 3.2mm shaft
  • High efficiency from maximum copper fill and neodymium magnets
  • Large precision ball bearings for smooth running
  • Can be mounted by either end for flexible installation

Tech Specs

  • Weight: 57g (2.01oz)
  • Product length: 30mm (1.18in)
  • Product diameter: 28mm (1.10in)
  • Connector: Bullet
  • Colour: Silver
  • Material: Steel
  • Age recommendation: 14+
  • Shipping weight: 0.14kg (0.31lbs)
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

14-pole brushless outrunner motors

Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.

The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.

  • Maximum copper fill ratio and superior neodymium magnets for high efficiency
  • Large, precision ballraces ensure smooth running
  • Can be mounted at either end

Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g

ROXXY BL Outrunner (C28-30-09) Key Features:

  • High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
  • Smooth running thanks to large precision ball bearings
  • 1280kV
  • 220W
  • 28mm motor diameter.
  • 3.2mm shaft diameter.
  • Voltage range: 7 - 12V

Manuals & Parts Explosions:

Manual

ROXXY BL Outrunner (C28-30-09) Tech Specs:

  • Weight: 57g / 2.01oz
  • Shipping Weight: 0.14kg / 0.31lbs
  • Product Length: 30mm / 1.18in
  • Product Diameter: 28mm / 1.10in
  • Connector: Bullet
  • Age Recommendation: 14+
  • Colour: Silver
  • Material: Steel


    Key Info:
    • Brand: Multiplex
    • Part No: MPX314955
    • Barcode: 4041033089552
