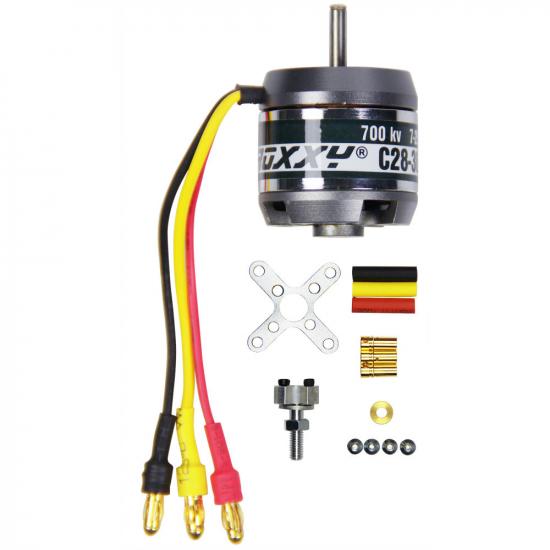

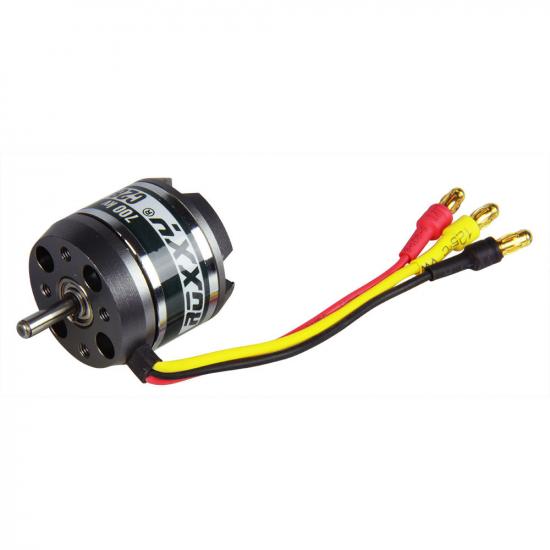

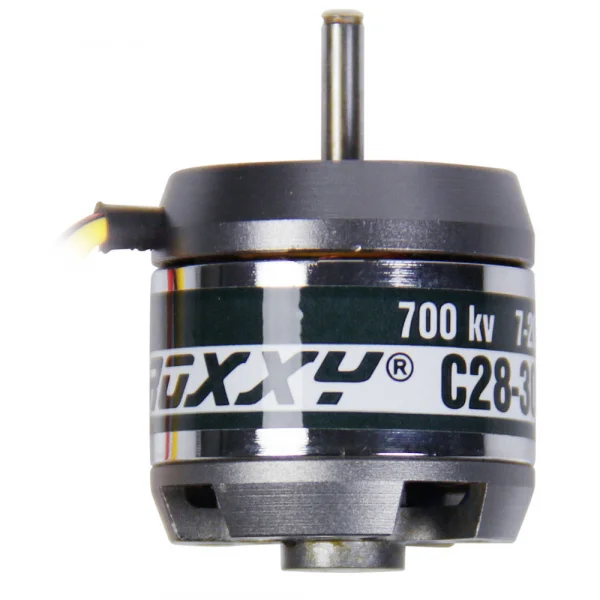

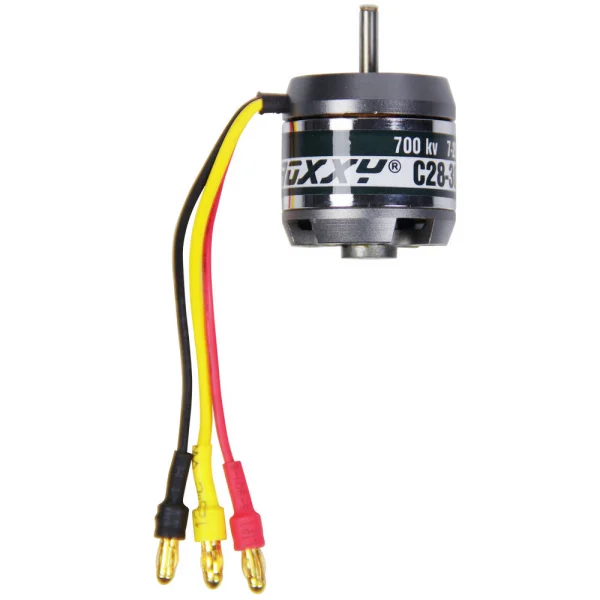

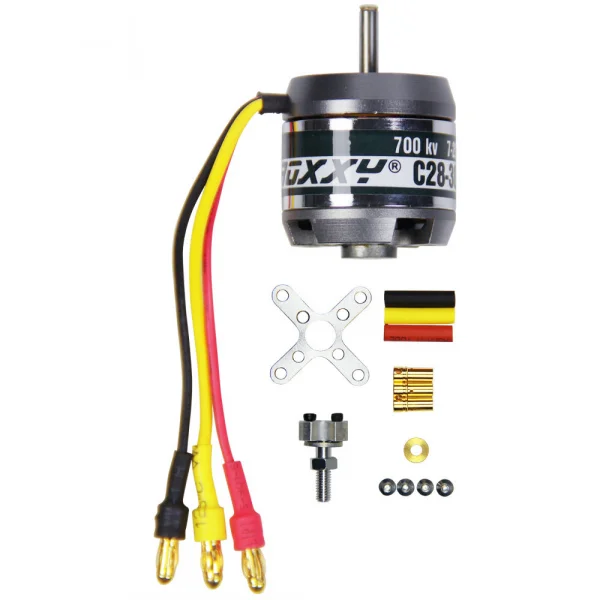

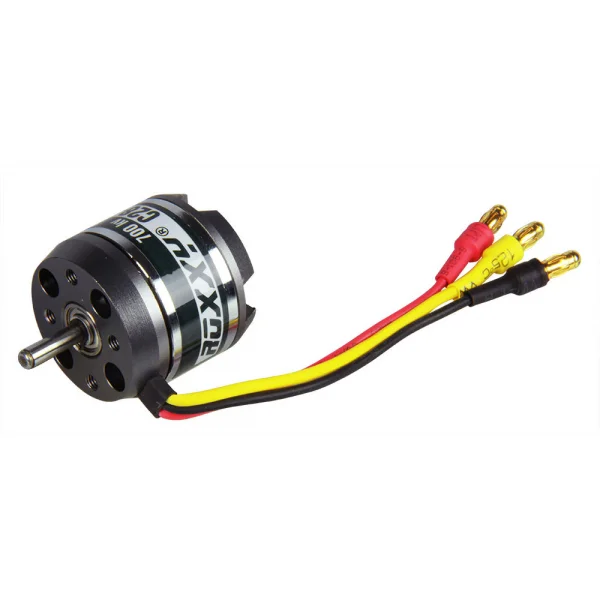

ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)
ROXXY BL Outrunner (C28-30-16)

ROXXY BL Outrunner (C28-30-16)

Brand: Multiplex

Part No: MPX314957

£39.07 RRP £43.90
Pre-Order
Request Price Match Ask a Question Write a Review

The Multiplex ROXXY BL Outrunner (C28-30-16) is a 14‑pole brushless motor designed for efficient, high‑torque direct‑drive applications. Built with high‑quality neodymium magnets and a maximum copper fill ratio, it delivers strong performance in a compact 28 mm class. Large precision ball bearings ensure smooth running, while the outrunner construction can drive larger propellers without a gearbox. Flexible installation is supported by mounting from either end.

Key Features

  • 14‑pole brushless outrunner design
  • High efficiency from maximum copper filling and neodymium magnets
  • Large precision ball bearings for smooth running
  • Can be mounted by either end
  • 700kV
  • 180W
  • Voltage range: 7–20V
  • 28 mm motor diameter
  • 3.2 mm shaft diameter

Tech Specs

  • Part Number: MPX314957
  • Weight: 57 g
  • Product Length: 30 mm
  • Product Diameter: 28 mm
  • Connector: Bullet
  • Colour: Silver
  • Material: Steel
  • Age Recommendation: 14+
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

14-pole brushless outrunner motors

Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.

The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.

  • Maximum copper fill ratio and superior neodymium magnets for high efficiency
  • Large, precision ballraces ensure smooth running
  • Can be mounted at either end

Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g

ROXXY BL Outrunner (C28-30-16) Key Features:

  • High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
  • Smooth running thanks to large precision ball bearings
  • 700kV
  • 180W
  • 28mm motor diameter.
  • 3.2mm shaft diameter.
  • Voltage range: 7 - 20V

Manuals & Parts Explosions:

Manual

ROXXY BL Outrunner (C28-30-16) Tech Specs:

  • Weight: 57g / 2.01oz
  • Shipping Weight: 0.12kg / 0.27lbs
  • Product Length: 30mm / 1.18in
  • Product Diameter: 28mm / 1.10in
  • Connector: Bullet
  • Age Recommendation: 14+
  • Colour: Silver
  • Material: Steel


    Key Info:
    • Brand: Multiplex
    • Part No: MPX314957
    • Barcode: 4041033099575
