ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)
ROXXY BL Outrunner (C28-34-10)

ROXXY BL Outrunner (C28-34-10)

Brand: Multiplex

Part No: MPX314959

£42.63 RRP £47.90
Pre-Order
Request Price Match Ask a Question Write a Review

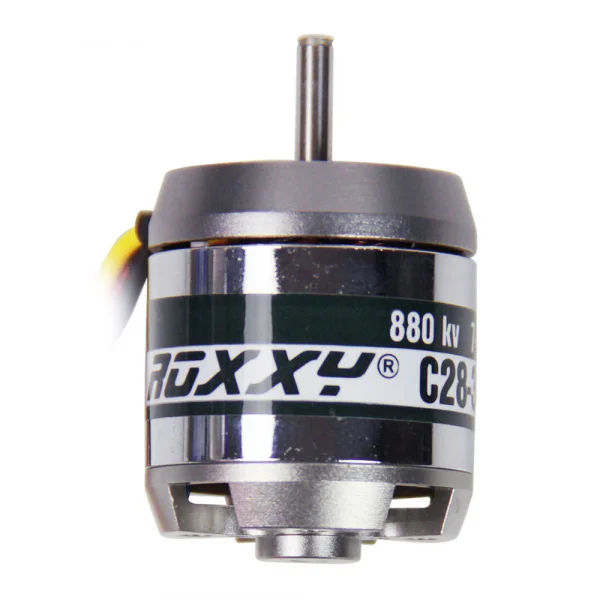

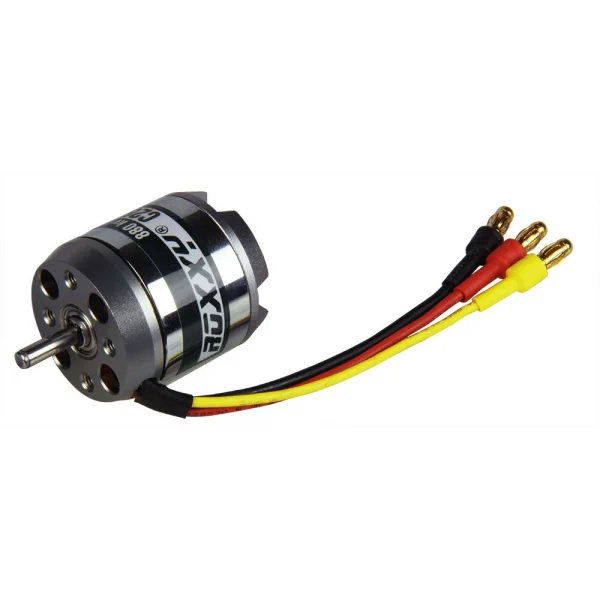

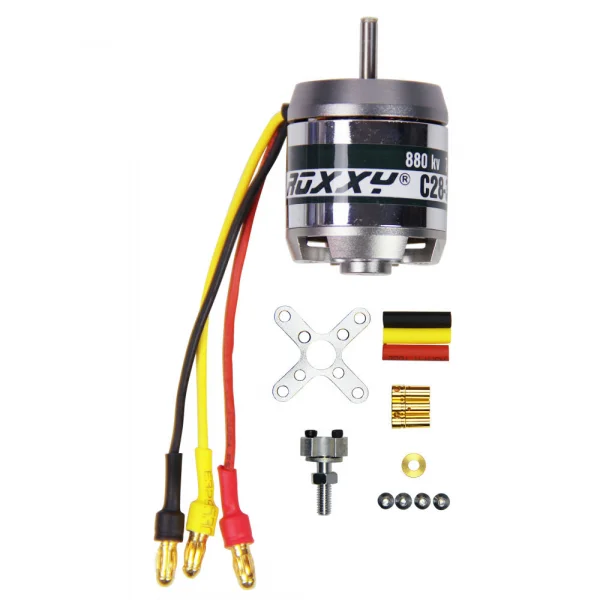

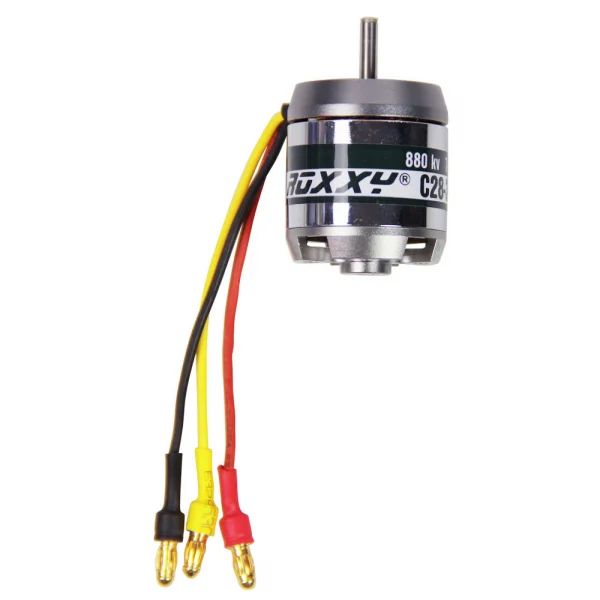

The Multiplex ROXXY BL Outrunner (C28-34-10) — part number MPX314959 — is a compact, 14‑pole brushless outrunner designed for efficient, high‑torque direct‑drive power. Featuring high‑quality neodymium magnets and a maximum copper fill ratio, it delivers strong performance in a 28 mm form factor.

With 880 kV and a 7–15 V operating range, this motor can drive larger propellers without a gearbox. Large precision ball bearings ensure smooth running, while the ability to mount the motor by either end offers flexible installation in a variety of RC applications.

Key Features

  • 14‑pole brushless outrunner construction
  • High efficiency from maximum copper filling and neodymium magnets
  • Large precision ball bearings for smooth running
  • Can be mounted by either end
  • Optimised for direct‑drive propeller use

Tech Specs

  • kV: 880 kV
  • Power: 260 W
  • Voltage Range: 7–15 V
  • Motor Diameter: 28 mm
  • Shaft Diameter: 3.2 mm
  • Length: 32 mm
  • Weight: 67 g
  • Connector: Bullet
  • Colour: Silver
  • Material: Steel
  • Age Recommendation: 14+
  • Shipping Weight: 0.13 kg
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

14-pole brushless outrunner motors

Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.

The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.

  • Maximum copper fill ratio and superior neodymium magnets for high efficiency
  • Large, precision ballraces ensure smooth running
  • Can be mounted at either end

Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g

ROXXY BL Outrunner (C28-34-10) Key Features:

  • High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
  • Smooth running thanks to large precision ball bearings
  • 880kV
  • 260W
  • 28mm motor diameter.
  • 3.2mm shaft diameter.
  • Voltage range: 7 - 15V

Manuals & Parts Explosions:

Manual

ROXXY BL Outrunner (C28-34-10) Tech Specs:

  • Weight: 67g / 2.36oz
  • Shipping Weight: 0.13kg / 0.30lbs
  • Product Length: 32mm / 1.26in
  • Product Diameter: 28mm / 1.10in
  • Connector: Bullet
  • Age Recommendation: 14+
  • Colour: Silver
  • Material: Steel


    Key Info:
    • Brand: Multiplex
    • Part No: MPX314959
    • Barcode: 4041033099599
