Multiplex ROXXY C35-42-05 1100kV Brushless Outrunner
Brand: Multiplex
Part No: MPX314964
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description

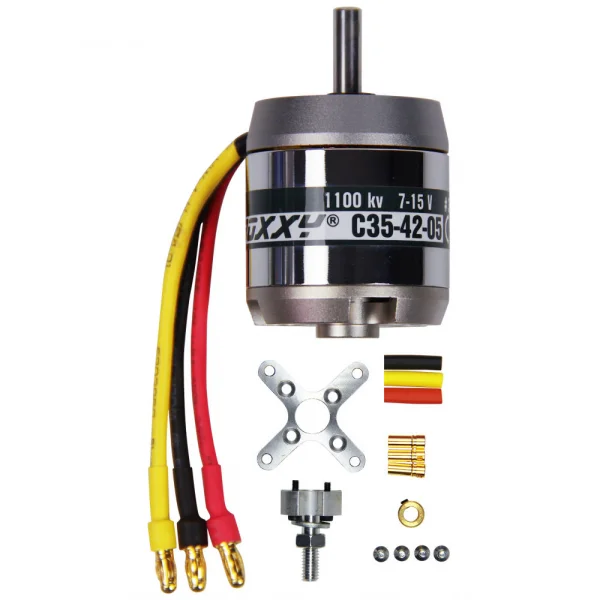

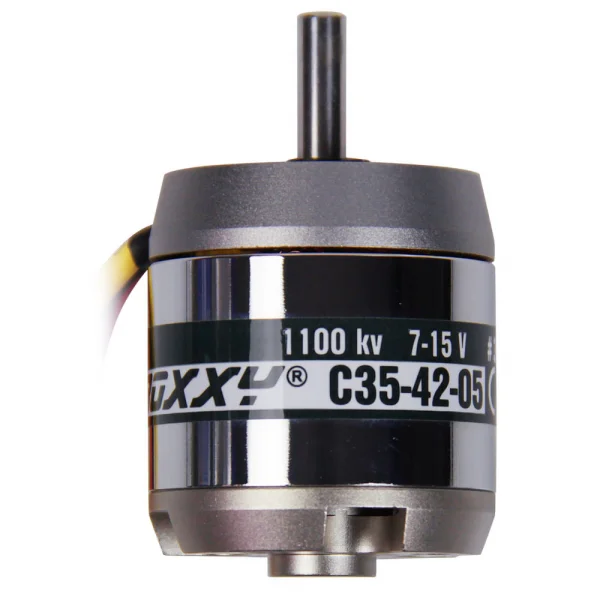

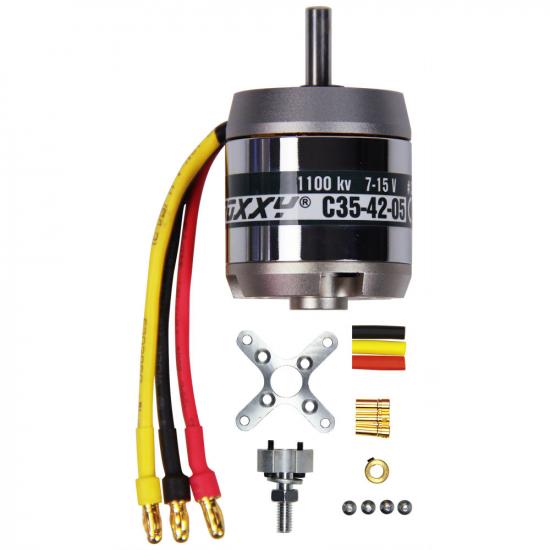

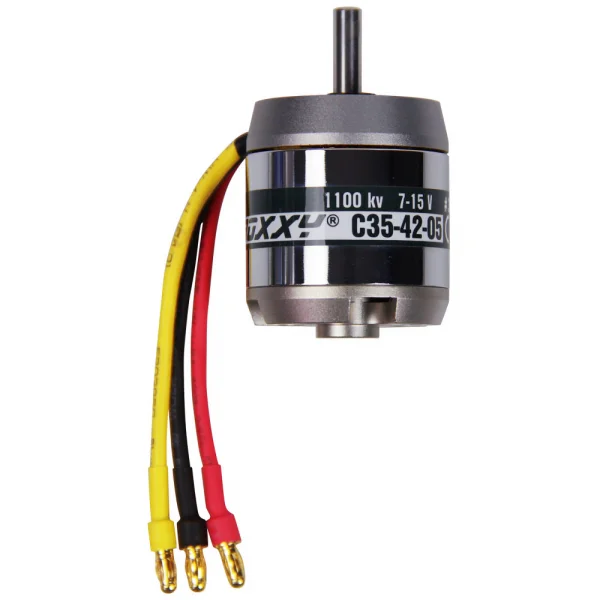

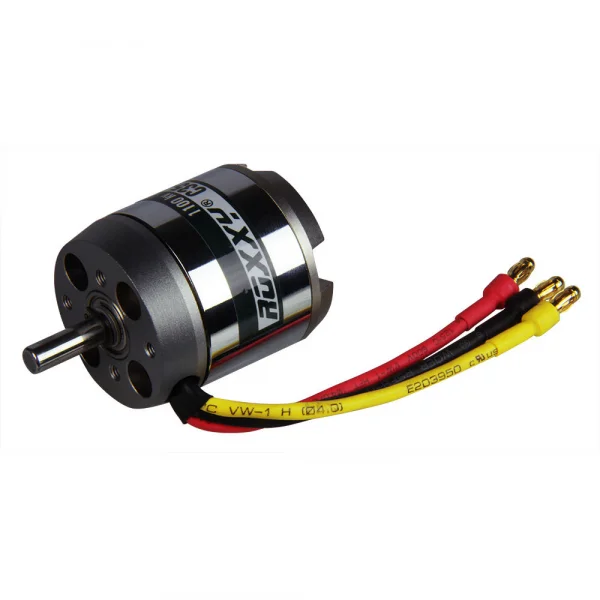

The Multiplex ROXXY BL Outrunner (C35-42-05), part number MPX314964, is a compact 1100kV brushless motor built around superior neodymium magnets and a high copper fill ratio for excellent efficiency. As an outrunner, it delivers strong torque without a reduction gearbox, making it ideal for direct-drive applications where smooth power and reliability matter.
Engineered with large, precision ball races for smooth running and durability, this 35mm-class motor offers flexible installation and can be mounted from either end. With a 5mm shaft, modest overall length and low weight, it fits neatly into a wide range of electric models that benefit from high-torque drive systems.
Key Features
- 1100kV brushless outrunner with neodymium magnets
- High efficiency thanks to maximum copper fill ratio
- Direct-drive capable for high-torque applications
- Large, precision ball races ensure smooth running
- Can be mounted from either end for installation flexibility
- Operating range: 50–65A, 7–12V
Specifications
- Case diameter: 35.0mm
- Case length: 38.5mm
- Overall length: 56.5mm
- Shaft diameter: 5.0mm
- Shaft length: 18.0mm
- Weight: 132g
- Shipping weight: 0.23kg
- Age recommendation: 14+
Secured by Stripe
ROXXY BL Outrunner (C35-42-05) Manuals & Guides
Specifications
Brushless motors with neodymium magnets represent the very latest form of electric powerplant. Outrunners in particular require no reduction gearbox and are efficient, high-torque motors covering a broad range of power levels. The construction of outrunner motors often enables them to drive large propellers without the need for a gearbox so they are ideal for direct-drive applications.
Specification:
| Overall length (mm): | 56.5 |
| Case length (mm): | 38.5 |
| Shaft length (mm): | 18.0 |
| Shaft diameter (mm): | 5.0 |
| Case diameter (mm): | 35.0 |
ROXXY BL Outrunner (C35-42-05) Tech Specs:
ROXXY BL Outrunner (C35-42-05) Key Features:
- Brushless motors with neodymium magnets represent the very latest form of electric powerplant. Outrunners in particular require no reduction gearbox and are efficient, high-torque motors covering a broad range of power levels. The construction of outrunner motors often enables them to drive large propellers without the need for a gearbox so they are ideal for direct-drive applications.
Specification:
Overall length (mm): 56.5 Case length (mm): 38.5 Shaft length (mm): 18.0 Shaft diameter (mm): 5.0 Case diameter (mm): 35.0 - 1100kV
- 50 - 65A
- 7 - 12V
- Maximum copper fill ratio and superior neodymium magnets for high efficiency.
- Large, precision ball races ensure smooth running.
- Large, precision ball races ensure smooth running. Can be mounted from either end.
Manuals & Parts Explosions:
ROXXY BL Outrunner (C35-42-05) Tech Specs:
- Weight: 132g / 4.66oz
- Shipping Weight: 0.23kg / 0.51lbs
- Product Length: 38mm / 1.50in
- Product Diameter: 35mm / 1.38in
- Age Recommendation: 14+
Key Info:
- Brand: Multiplex
- Part No: MPX314964
- Barcode: 4041033079645
