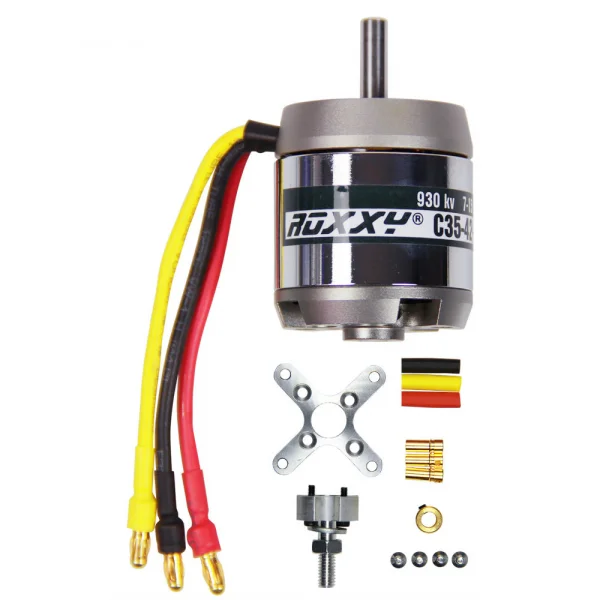

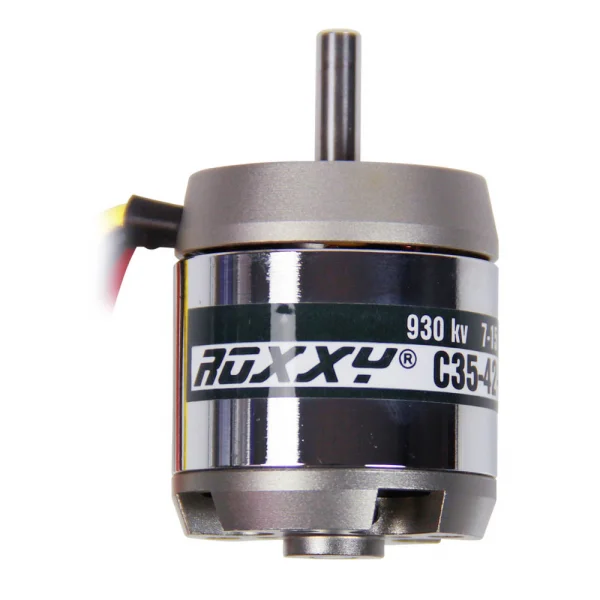

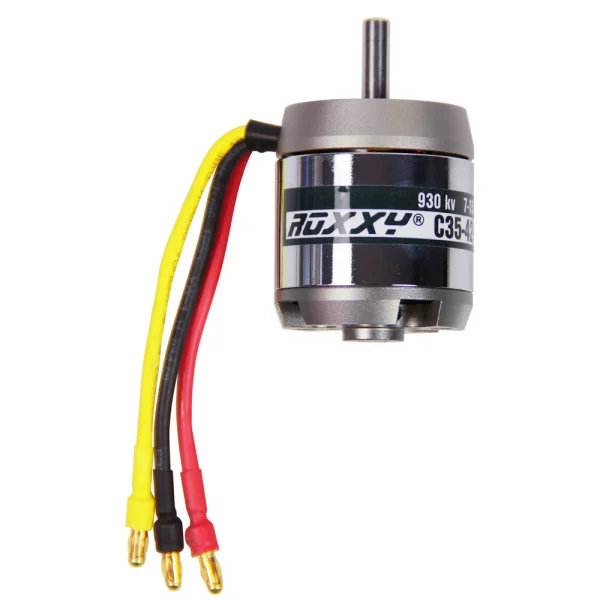

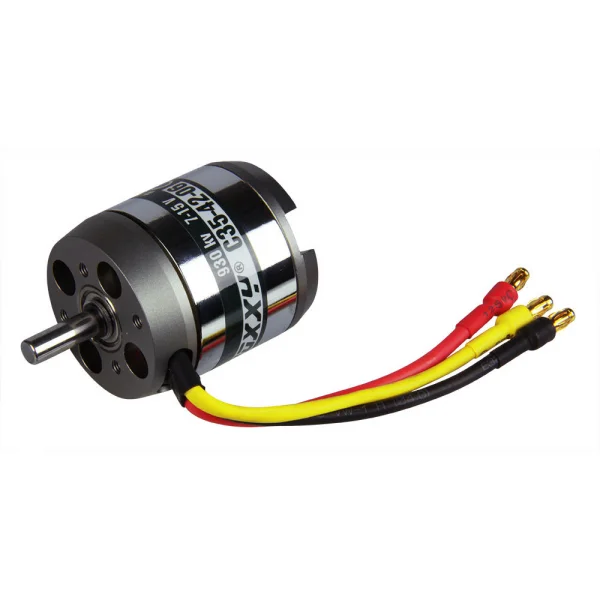

Multiplex ROXXY BL Outrunner C35-42-05 Motor
Brand: Multiplex
Part No: MPX314965
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description
The Multiplex ROXXY BL Outrunner (C35-42-05) is a 930kV brushless motor built for efficient, high-torque, direct-drive use. Neodymium magnets and a high copper fill deliver strong performance without a gearbox, while precision ball races ensure smooth running. Flexible installation is supported by the option to mount the motor from either end. Operating across 7–15V with a 38–65A current range, this compact 35mm-class outrunner suits a broad range of power setups using larger propellers.
Key Features
- Efficient brushless outrunner with neodymium magnets
- No reduction gearbox required; ideal for direct-drive propellers
- Maximum copper fill ratio for high efficiency
- Large, precision ball races for smooth running
- Can be mounted from either end
Electrical Specs
- kV Rating: 930kV
- Voltage Range: 7–15V
- Current Range: 38–65A
Dimensions
- Overall Length: 56.5mm
- Case Length: 38.5mm
- Case Diameter: 35.0mm
- Shaft Diameter: 5.0mm
- Shaft Length: 18.0mm
Additional Details
- Weight: 132g
- Shipping Weight: 0.23kg
- Age Recommendation: 14+
- Part Number: MPX314965
Secured by Stripe
ROXXY BL Outrunner (C35-42-05) Manuals & Guides
Specifications
Brushless motors with neodymium magnets represent the very latest form of electric powerplant. Outrunners in particular require no reduction gearbox and are efficient, high-torque motors covering a broad range of power levels. The construction of outrunner motors often enables them to drive large propellers without the need for a gearbox so they are ideal for direct-drive applications.
Specification:
| Overall length (mm): | 56.5 |
| Case length (mm): | 38.5 |
| Shaft length (mm): | 18.0 |
| Shaft diameter (mm): | 5.0 |
| Case diameter (mm): | 35.0 |
ROXXY BL Outrunner (C35-42-05) Tech Specs:
ROXXY BL Outrunner (C35-42-05) Key Features:
- Brushless motors with neodymium magnets represent the very latest form of electric powerplant. Outrunners in particular require no reduction gearbox and are efficient, high-torque motors covering a broad range of power levels. The construction of outrunner motors often enables them to drive large propellers without the need for a gearbox so they are ideal for direct-drive applications.
Specification:
Overall length (mm): 56.5 Case length (mm): 38.5 Shaft length (mm): 18.0 Shaft diameter (mm): 5.0 Case diameter (mm): 35.0 - 930kV
- 7 - 15V
- 38 - 65A
- Maximum copper fill ratio and superior neodymium magnets for high efficiency.
- Large, precision ball races ensure smooth running.
- Can be mounted from either end.
Manuals & Parts Explosions:
ROXXY BL Outrunner (C35-42-05) Tech Specs:
- Weight: 132g / 4.66oz
- Shipping Weight: 0.23kg / 0.50lbs
- Product Length: 38mm / 1.50in
- Product Diameter: 35mm / 1.38in
- Age Recommendation: 14+
Key Info:
- Brand: Multiplex
- Part No: MPX314965
- Barcode: 4041033089651
