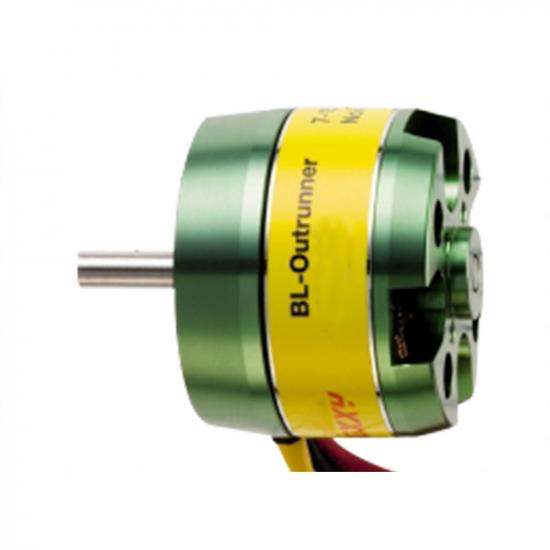

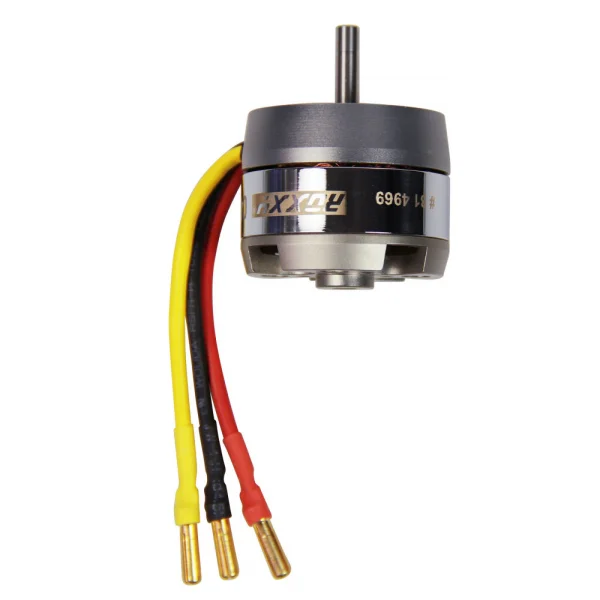

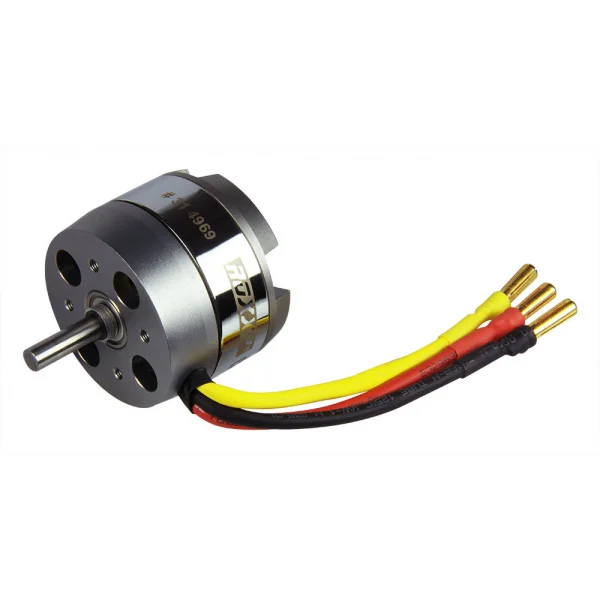

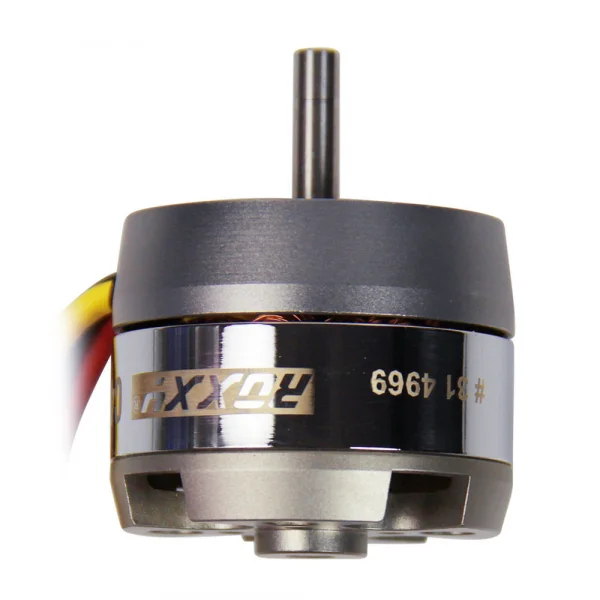

Multiplex ROXXY BL Outrunner C42-40-12 850kV Motor
Brand: Multiplex
Part No: MPX314969
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description
The Multiplex ROXXY BL Outrunner (C42-40-12) delivers smooth, efficient power in a compact 42 mm form factor. This 14‑pole brushless outrunner uses superior neodymium magnets and a high copper fill for strong torque and efficiency, making it well suited to direct-drive applications where swinging larger propellers without a gearbox is beneficial.
Engineered for reliability, the ROXXY C42-40-12 features large precision ballraces for smooth running and versatile installation with mounting possible from either end. With an 850 kV rating and up to 580 W power capability, it offers a balanced blend of performance and control for electric flight projects.
Key Features
- 14-pole brushless outrunner design
- Neodymium magnets and high copper fill for high efficiency
- Large precision ballraces for smooth operation
- Can be mounted by either end
- 850 kV and 580 W capability
- Ideal for direct-drive applications
Tech Specs
- Part Number: MPX314969
- Motor Diameter: 42 mm / 1.65 in
- Motor Length: 37 mm / 1.46 in
- Shaft Diameter: 5 mm
- Weight: 130 g / 4.59 oz
- Shipping Weight: 0.24 kg / 0.53 lbs
- Connector: Bullet
- Colour: Silver
- Material: Steel
- Age Recommendation: 14+
Secured by Stripe
ROXXY BL Outrunner (C42-40-12) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted by either end
ROXXY BL Outrunner (C42-40-12) Key Features:
- 850kV
- 580W
- 42mm motor diameter.
- 5mm shaft diameter.
Manuals & Parts Explosions:
ROXXY BL Outrunner (C42-40-12) Tech Specs:
- Weight: 130g / 4.59oz
- Shipping Weight: 0.24kg / 0.53lbs
- Product Length: 37mm / 1.46in
- Product Diameter: 42mm / 1.65in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314969
- Barcode: 4041033099698
