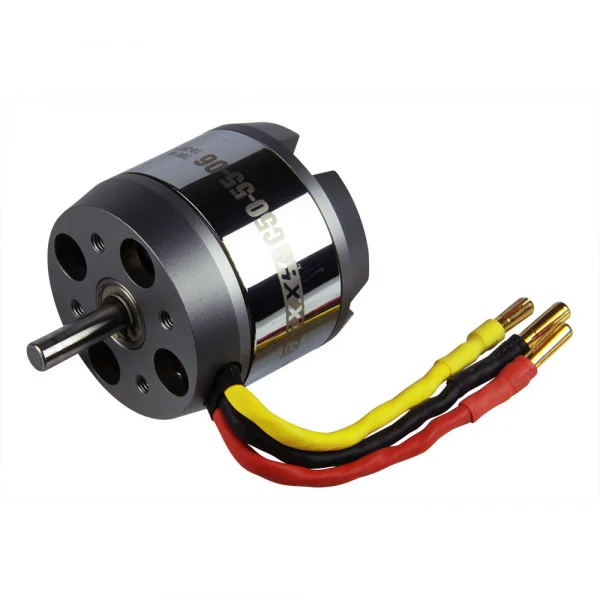

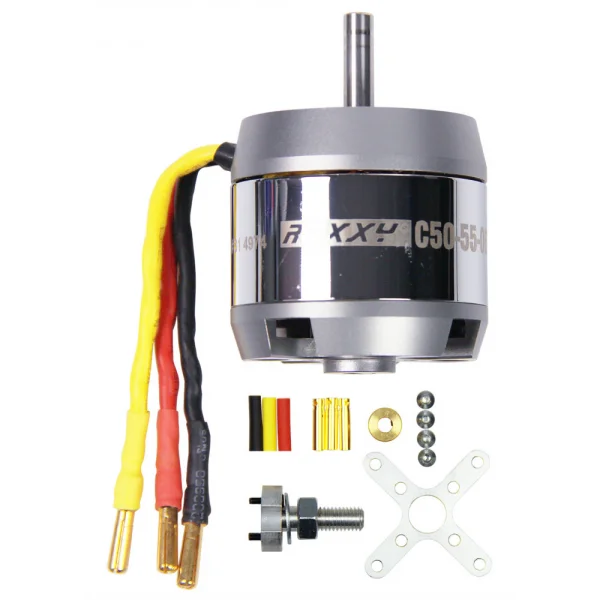

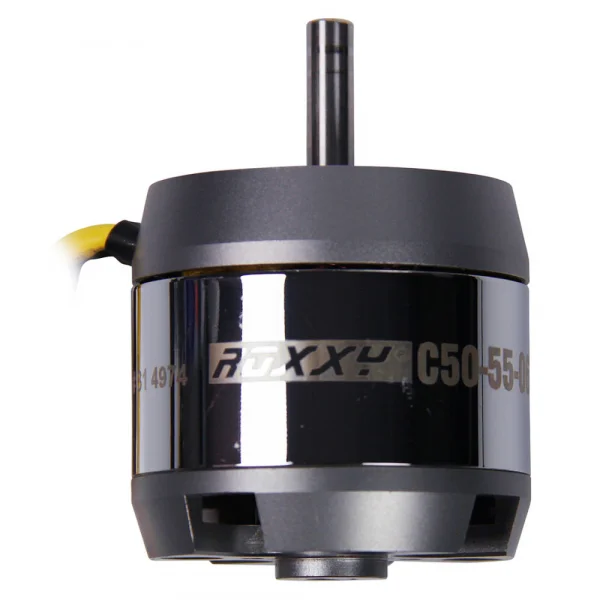

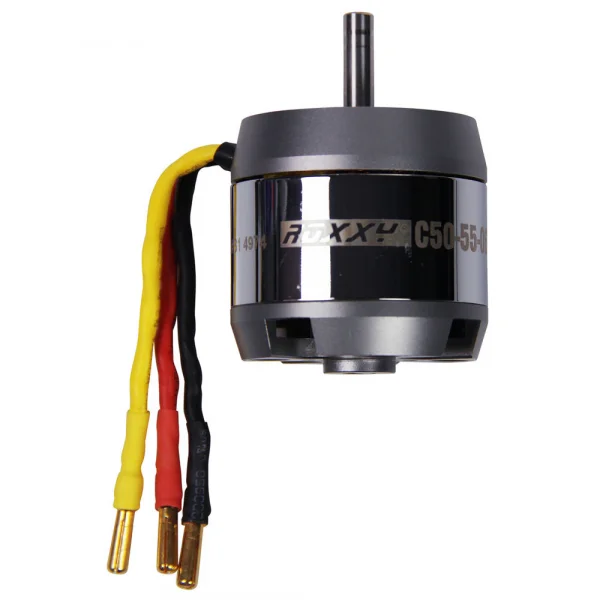

Multiplex ROXXY BL Outrunner C50-55-06 760kV Motor
Brand: Multiplex
Part No: MPX314974
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Description
The Multiplex ROXXY BL Outrunner (C50-55-06) is a 14‑pole brushless outrunner engineered for efficient, high‑torque direct‑drive applications. With a 760kV rating and power capability up to 1665W across a 7–20V range, it provides smooth, reliable performance for driving larger propellers without a gearbox. High‑quality neodymium magnets, large precision ball bearings and dual‑ended mounting options contribute to durability and versatility. Part number MPX314974.
Key Features
- 14‑pole brushless outrunner design
- High efficiency from maximum copper fill and neodymium magnets
- Smooth running via large precision ball bearings
- Mounting possible on both sides
- 760kV
- Up to 1665W power
- Voltage range: 7–20V
- 50mm motor diameter
- 6mm shaft diameter
Tech Specs
- Weight: 276g (9.74oz)
- Product length: 51mm (2.01in)
- Product diameter: 50mm (1.97in)
- Connector: Bullet
- Colour: Silver
- Material: Steel
- Age recommendation: 14+
Application Notes
- Outrunner construction often allows the direct drive of large propellers without a reduction gearbox.
- Designed to offer high torque and efficient power delivery for electric model applications.
Secured by Stripe
ROXXY BL Outrunner (C50-55-06) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted by either end
ROXXY BL Outrunner (C50-55-06) Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- Mounting possible on both sides
- 760kV
- 1665W
- 50mm motor diameter.
- 6mm shaft diameter.
- Voltage range: 7 - 20V
Manuals & Parts Explosions:
ROXXY BL Outrunner (C50-55-06) Tech Specs:
- Weight: 276g / 9.74oz
- Shipping Weight: 0.47kg / 1.04lbs
- Product Length: 51mm / 2.01in
- Product Diameter: 50mm / 1.97in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX314974
- Barcode: 4041033079744
