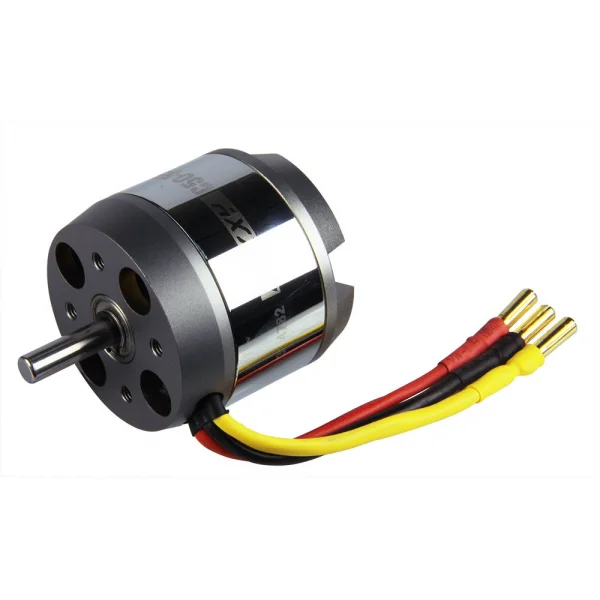

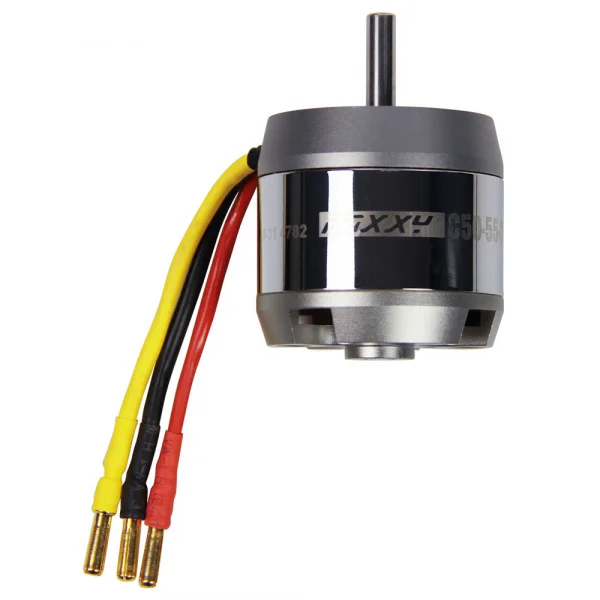

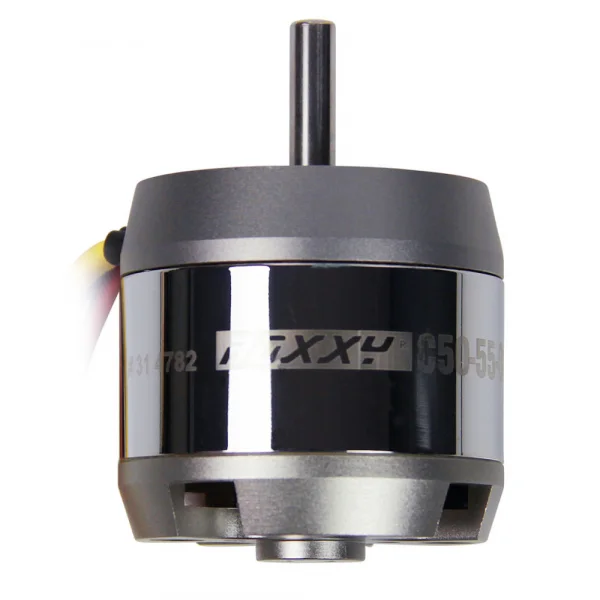

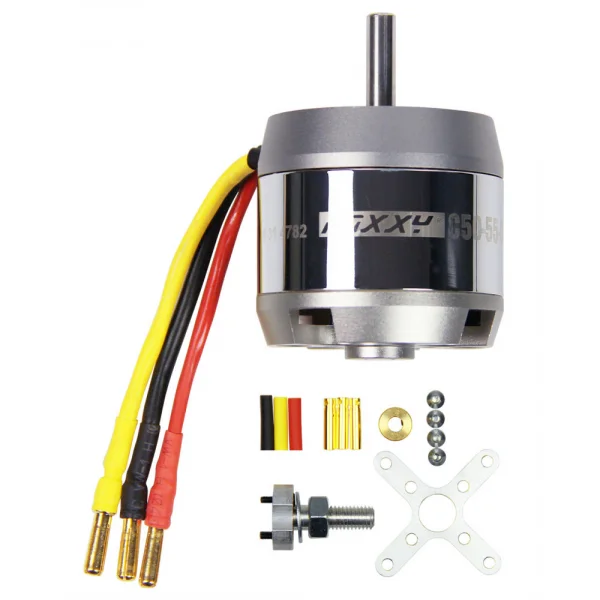

ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)
ROXXY BL Outrunner (C50-55-08)

ROXXY BL Outrunner (C50-55-08)

Brand: Multiplex

Part No: MPX314782

£103.15 RRP £115.90

Shadow Stock: Usually ships next day

Collect Instore
Request Price Match Ask a Question Write a Review

The Multiplex ROXXY BL Outrunner (C50-55-08) is a 14‑pole brushless motor designed for efficient, high‑torque direct drive. Using high‑quality neodymium magnets and a maximum copper fill ratio, it delivers smooth power for applications that benefit from driving larger propellers without a gearbox. Part number MPX314782.

Key Features

  • 14‑pole brushless outrunner design
  • High efficiency from maximum copper filling and neodymium magnets
  • Large precision ball bearings for smooth running
  • Mounting possible from either end
  • 570kV
  • 1550W
  • Voltage range: 15–24V
  • 50mm motor diameter
  • 6mm shaft diameter

Technical Specifications

  • Weight: 276g (9.74oz)
  • Shipping weight: 0.47kg (1.03lbs)
  • Product length: 51mm (2.01in)
  • Product diameter: 50mm (1.97in)
  • Connector: Bullet
  • Colour: Silver
  • Material: Steel
  • Age recommendation: 14+

With smooth, reliable running and the option to mount from either end, the ROXXY C50-55-08 provides a robust solution for brushless electric power systems where efficiency and torque are priorities.

Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

14-pole brushless outrunner motors

Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.

The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.

  • Maximum copper fill ratio and superior neodymium magnets for high efficiency
  • Large, precision ballraces ensure smooth running
  • Can be mounted by either end

ROXXY BL Outrunner (C50-55-08) Key Features:

  • High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
  • Smooth running thanks to large precision ball bearings
  • Mounting possible on both sides
  • 570kV
  • 1550W
  • 50mm motor diameter.
  • 6mm shaft diameter.
  • Voltage range: 15 - 24V

Manuals & Parts Explosions:

Manual

ROXXY BL Outrunner (C50-55-08) Tech Specs:

  • Weight: 276g / 9.74oz
  • Shipping Weight: 0.47kg / 1.03lbs
  • Product Length: 51mm / 2.01in
  • Product Diameter: 50mm / 1.97in
  • Connector: Bullet
  • Age Recommendation: 14+
  • Colour: Silver
  • Material: Steel


    Key Info:
    • Brand: Multiplex
    • Part No: MPX314782
    • Barcode: 4041033027820
