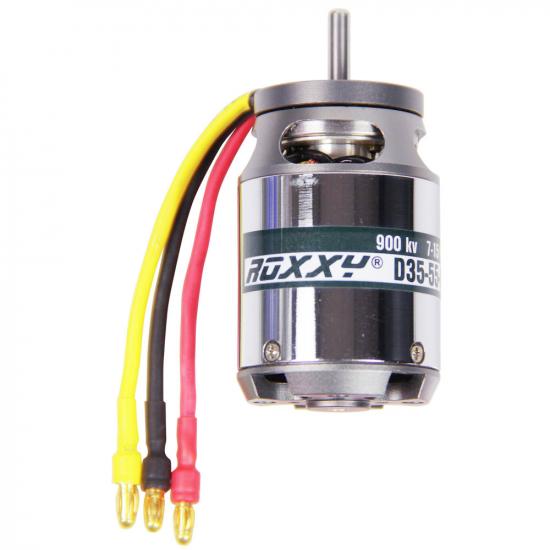

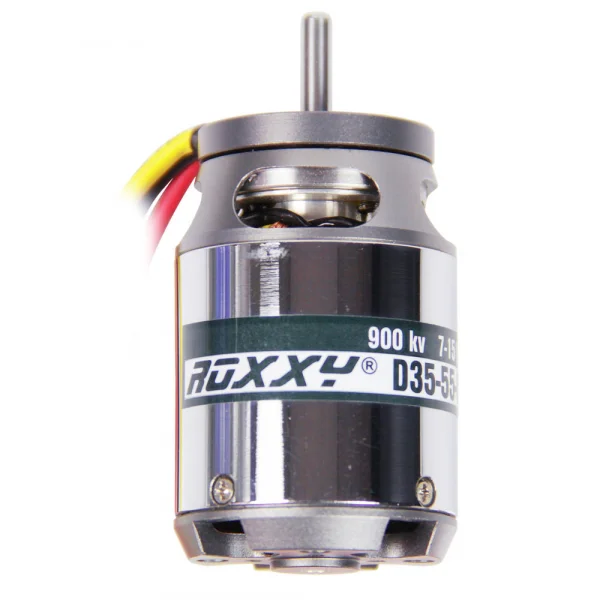

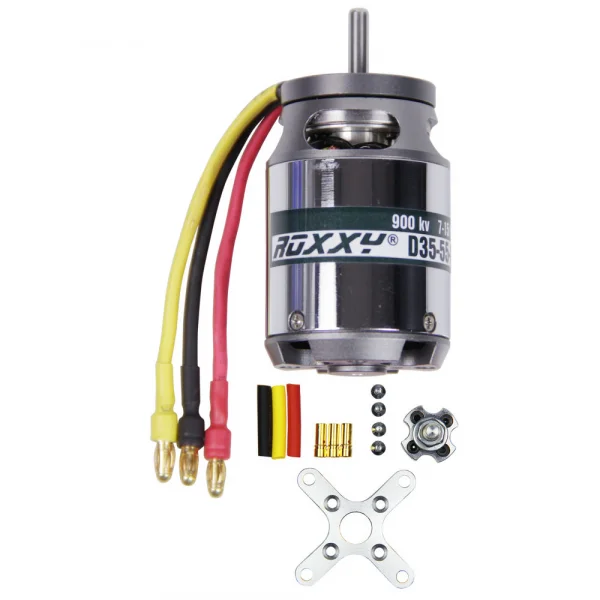

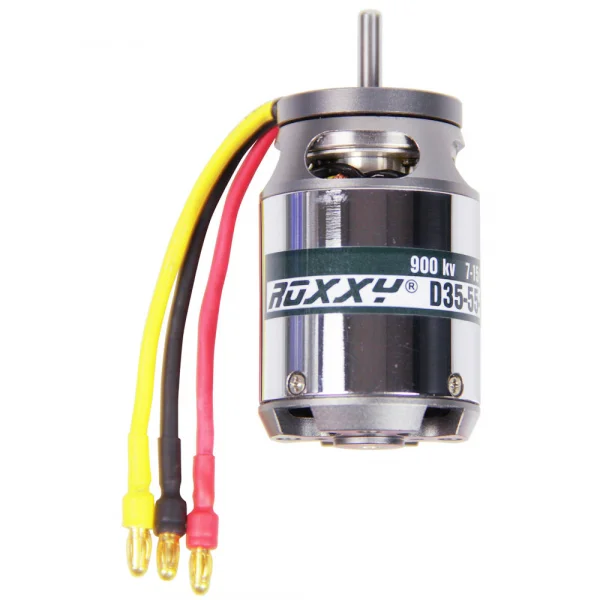

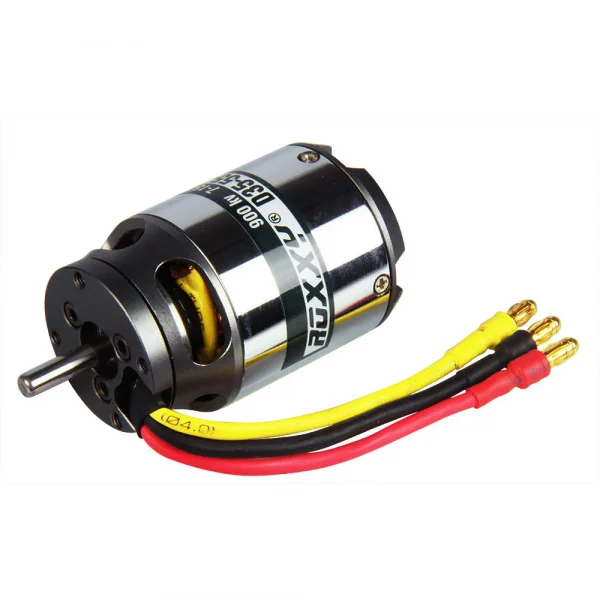

ROXXY BL Outrunner (D35-55-04) - 900kV

14-pole brushless outrunner motors

Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.

The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.

• Maximum copper fill ratio and superior neodymium magnets for high efficiency
• Large, precision ballraces ensure smooth running
• Can be mounted by either end

ROXXYå¨ BL outrunner motors of the D and CA series are equipped with triple ballraces. To improve precision and smooth-running, a third ballrace, known as a thin-section bearing, is fitted. This prevents the motor bell distorting under load, ensuring smooth running.

ROXXY BL Outrunner (D35-55-04) - 900kV Key Features:

• 900kV
• 1000W
• 35mm motor diameter.
• 4mm shaft diameter.

Manuals & Parts Explosions:

ROXXY BL Outrunner (D35-55-04) - 900kV Tech Specs:

• Weight: 175g / 6.17oz
• Shipping Weight: 0.26kg / 0.58lbs
• Product Length: 55mm / 2.17in
• Product Diameter: 35mm / 1.38in

• Connector: Bullet
• Age Recommendation: 14+
• Colour: Silver
• Material: Steel

• Brand: Multiplex
• Part No: MPX314997
• Barcode: 4041033069974
