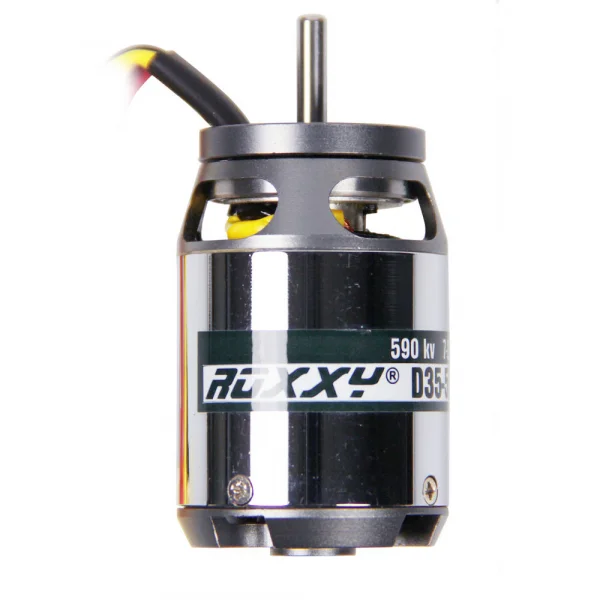

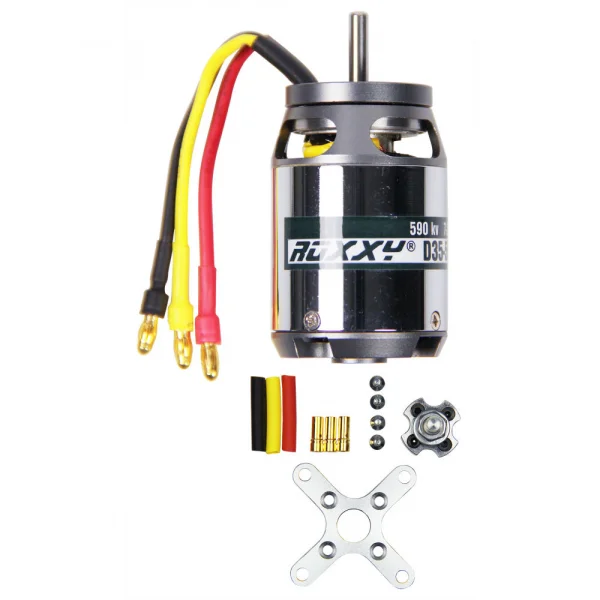

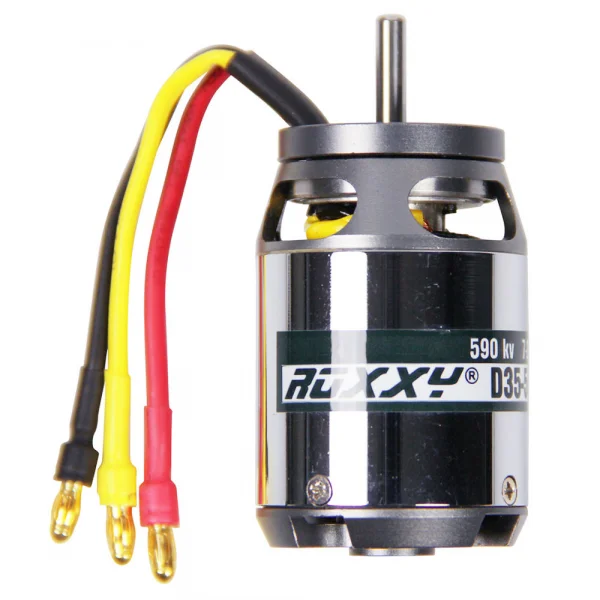

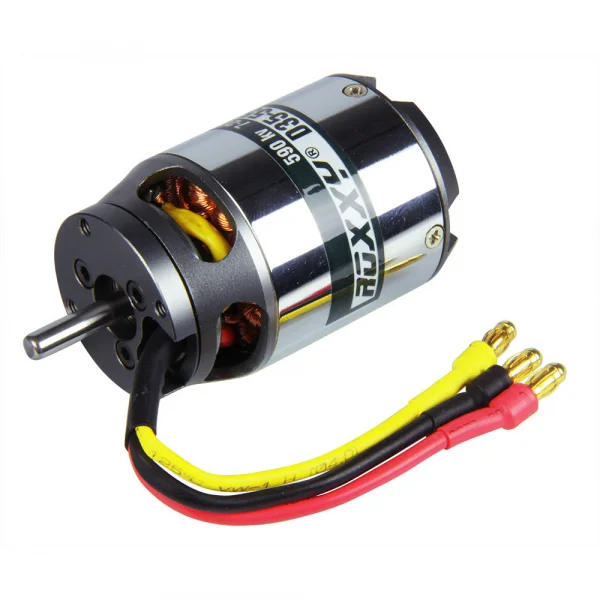

ROXXY BL Outrunner (D35-55-06) - 590kV

The Multiplex ROXXY BL Outrunner (D35-55-06) – 590kV (part no. MPX314998) is a 14-pole brushless motor designed for smooth, efficient direct-drive performance. Featuring high-grade neodymium magnets and a maximum copper fill ratio, this outrunner delivers strong torque and excellent efficiency without the need for a gearbox.

Engineered for precision, the D and CA series ROXXY motors incorporate triple ballraces, including a thin-section bearing that helps prevent bell distortion under load. The result is consistently smooth running and dependable operation. With a 35mm can size, 4mm shaft and a rated power of 900W, this 590kV motor is a versatile choice for a wide range of RC applications where reliable, direct-drive output is preferred.

Key Features

• 14-pole brushless outrunner with neodymium magnets
• Triple ballraces with a thin-section bearing for smooth running
• Maximum copper fill ratio for high efficiency
• Can be mounted by either end
• Direct-drive friendly, high-torque performance

Technical Specifications

• kV Rating: 590kV
• Power: 900W

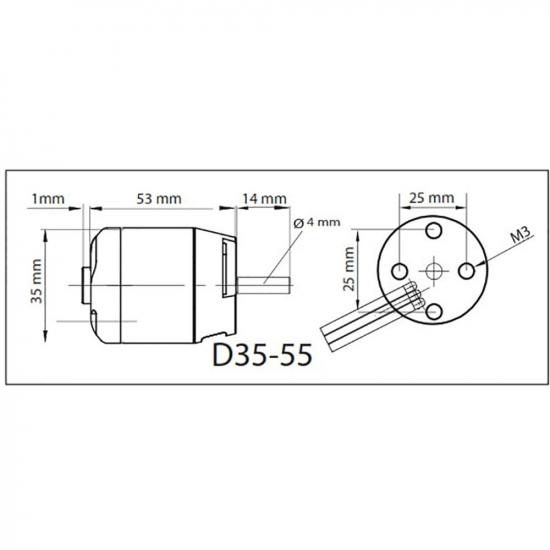

• Motor Diameter: 35mm
• Motor Length: 55mm
• Shaft Diameter: 4mm
• Weight: 175g (6.17oz)
• Connector: Bullet
• Colour: Silver
• Material: Steel
• Age Recommendation: 14+
• Shipping Weight: 0.26kg (0.57lbs)

Multiplex’s ROXXY engineering and the D35-55-06 format combine to provide an efficient, smooth and robust brushless motor solution for RC projects requiring a 35mm-class outrunner.
