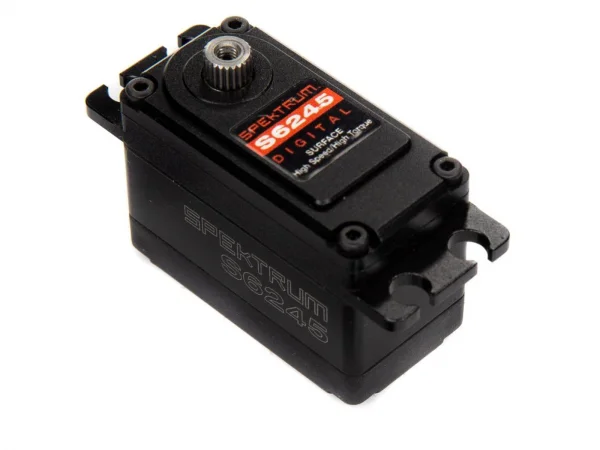

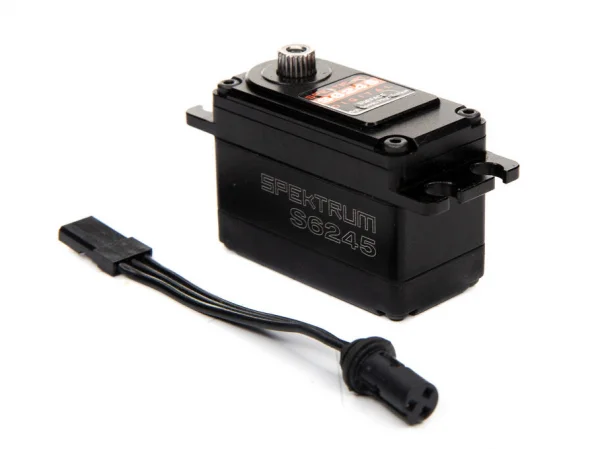

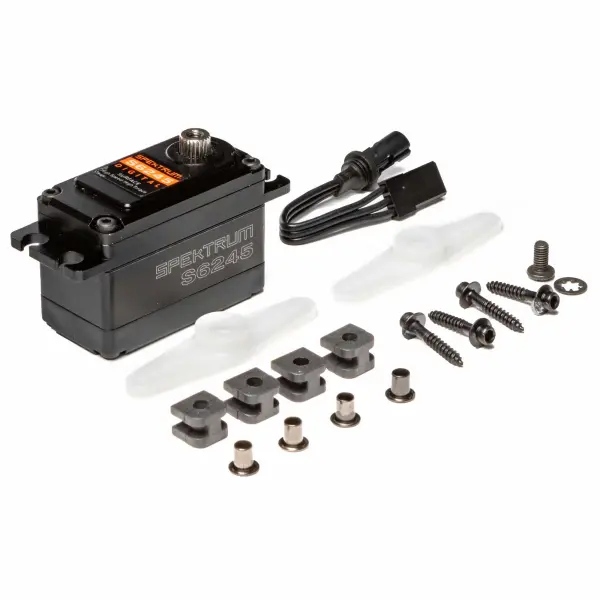

S6245 High Speed/Torque Servo
Brand: Spektrum
Part No: SPMSS6245
Supplier Stock: Expected June 13th
Request Stock NotificationThe Spektrum S6245 High Speed/Torque Servo (SPMSS6245) is a low-profile, HV-capable surface servo built for 1/10 applications. Evolving the race-winning S6240, it adds a sleek black anodised aluminium case, enhanced performance and durable metal gearing in a compact footprint.
Key Features
- Stylish stealth black and silver anodised aluminium case*
- Aluminium case for excellent heat dissipation
- High-voltage (HV) compatible: 6.0–7.4V (2S max)*
- Improved torque and speed*
- Removable wire harness with different lengths available
- Improved gear design for added durability*
- 7075 aluminium hard-anodised output shaft/main gear with steel internal gears
- Includes 2 in extension for easy minimum wire installs
- Robust aluminium mounting tabs
- NMB dual main output shaft bearings
- 23T output shaft
- Waterproof
- 1-year limited warranty
Specifications
- Application: Surface
- Servo size category: Low profile
- Operating voltage: 6.0–7.4V (HV)
- Maximum torque: 206 oz-in (14.8 kg-cm) @ 6V; 266 oz-in (19.2 kg-cm) @ 7.4V
- Gear type/material: Metal; 7075 aluminium hard-anodised output shaft/main gear; steel internal gears
- Bearings: Dual (NMB)
- Output spline: 23T
- Connector wire length: 2.0 in (51 mm) removable harness; 2 in extension included
- Programmable: No

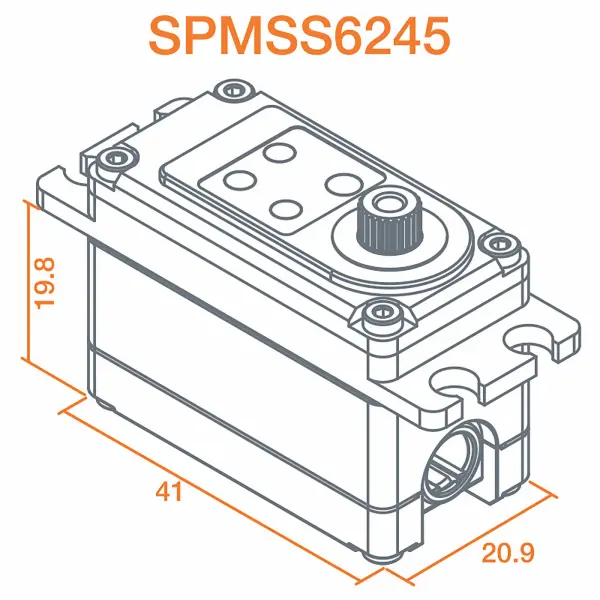

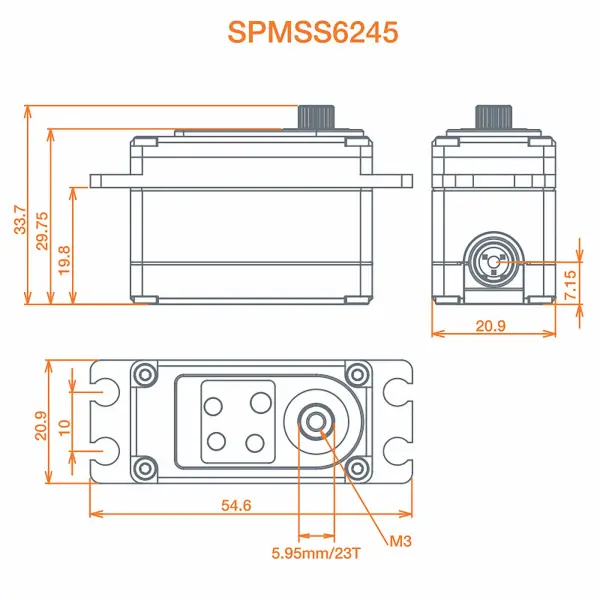

- Dimensions (L x W x H): 1.61 x 0.82 x 1.18 in (41 x 20.8 x 30 mm)
- Weight: 2.2 oz (62.37 g)
- Type: 6245 1/10
Suggested Compatibility
- 1/10 racing buggies and trucks
- Bashers upgrading RTR vehicles
- Crawlers needing extra speed and torque for demanding terrain
*Compared to S6240 Racing Servo.
Secured by Stripe
- Stylish stealth black and silver anodized aluminum case*
- Aluminum case provides great heat dissipation
- High Voltage HV compatible (7.4V/2S Max)*
- Improved torque and speed*
- Removable wire harness with different lengths available
- Improved gear design for added durability*
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Includes 2 inch extension for easy minimum wire installs
- Robust aluminum mounting tabs
- NMB dual main output shaft bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty
- *Compared to S6240 Racing Servo
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th scale vehicle application. The S6245 takes the race winning S6240 servo and upgrades it with a sleek, all aluminum, black anodized finish. The low profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain.
S6245 High Speed/Torque Servo Specfications:
- Part Type: Electronics
- Product Application: Surface
- Product Height: 1.18 in (30mm)
- Servo Operating Voltage: 6.0 - 7.4V (HV)
- Application: Surface
- Product Weight: 2.2oz (62.37g)
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Gear Type: Metal
- Connector Wire Length: 2.0 in (51mm)
- Product Width: 0.82 in (20.8mm)
- Type: 6245 1/10
- Maximum Servo Torque: 206 oz-in (14.8kg-cm) @ 6V, 266 oz-in (19.2 kg-cm) @ 7.4V
- Material: Metal
- Programmable: No
- Servo Size Category: Low Profile
- Product Length: 1.61 in (41mm)
Key Info:
- Brand: Spektrum
- Part No: SPMSS6245
- Barcode: 605482690840
- Fitment: Option Part
- Fitment: Standard Part
