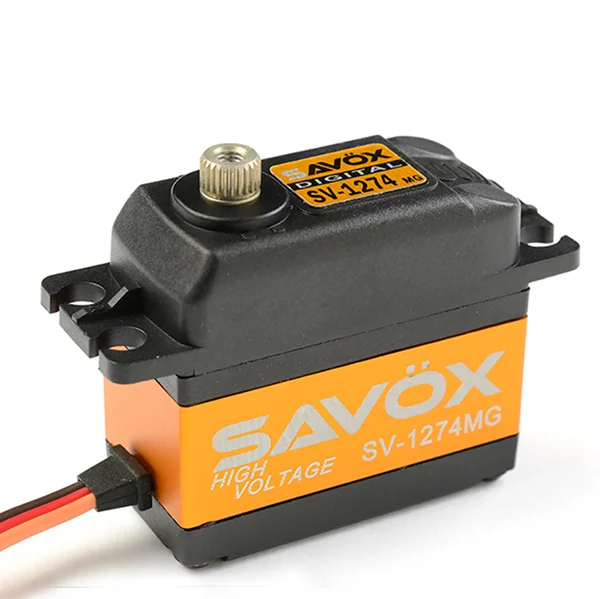

Savox SV1274MG HV Ultra Fast Servo 9kg 0.042s 25T
Brand: Savox
Part No: SAV-SV1274MG
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description
The Savox SV1274MG is a high-voltage, standard-size digital servo engineered for ultra-fast response and precise control. Delivering 9.0 kg/cm torque and 0.042 sec/60° at 7.4V, it pairs a high-efficiency coreless motor with precision metal gears and an aluminium centre case for strength, cooling and reliability. A JR connector and 25T spline provide straightforward linkage and horn compatibility.
Features
- Leading edge digital servo technology
- High efficiency coreless motor
- Accurate and fast response
- Super high resolution
- Aluminium centre case for improved motor cooling and total strength
- Ball bearing supported
- Precision metal gears
Technical Specifications
- Servo technology: Digital high voltage
- Input voltage: 6.0V – 7.4V
- Servo type/size: Standard
- Motor type: Coreless
- Gear material: Metal
- Bearings: Ball bearings
- Servo case: Aluminium / composite
- Speed @ 7.4V (60°): 0.042 sec
- Torque @ 7.4V: 9.0 kg/cm
- Length: 40.3 mm
- Width: 20.2 mm
- Height: 38.5 mm
- Weight: 61.0 g
- Connector type: JR
- Spline size: 25T
Secured by Stripe

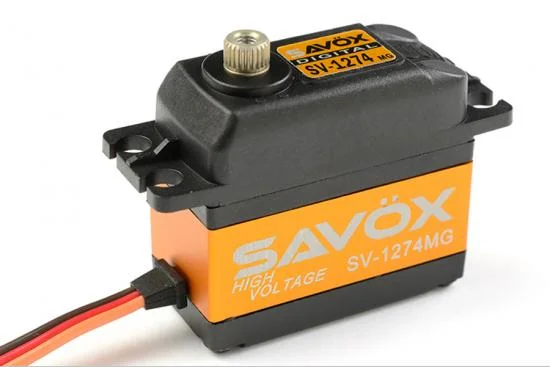

Savox High Voltage Standard Size Ultra Fast Servo - 9Kg - 0.42s Manuals & Guides
How-To Guides & Articles
Specifications
- Leading edge digital servo technology
- High efficiency Coreless motor
- Accurate and fast response
- Super high resolution
- Aluminium center case for improved motor cooling and total strength
- Ball beared
- Precision Metal gears
- Servo Technology: Digital High Voltage
- Input Voltage (V): 6.0V - 7.4V
- Servo Type / Size: Standard
- Motor Type: Coreless Motor
- Gear Material: Metal Gears
- Ball Beared: Ball Beared
- Servo Case: Aluminium - Composite
- Speed 60°/Sec @ 7.4V: 0.042 Sec/60°
- Torque kg/cm @ 7.4V: 9.0 Kg/cm
- Length (mm): 40.3 mm
- Width (mm): 20.2 mm
- Height (mm): 38.5 mm
- Weight (g): 61.0 g
- Connector type: JR
- Spline size: 25T Spline
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SV1274MG
- Barcode: 4710006992396
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
