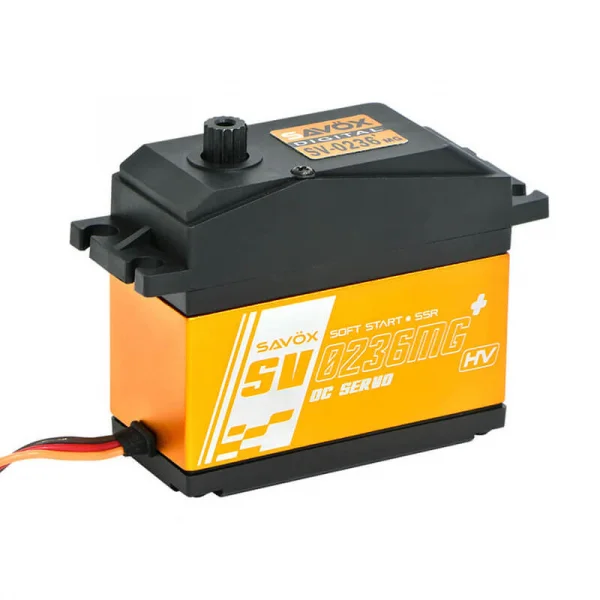

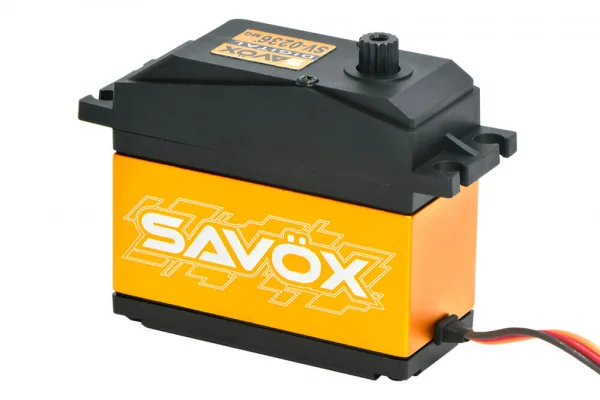

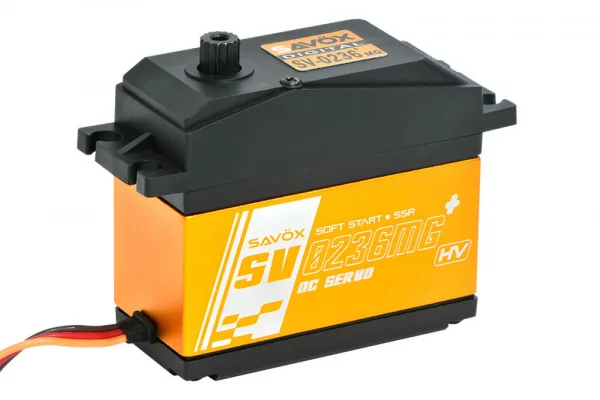

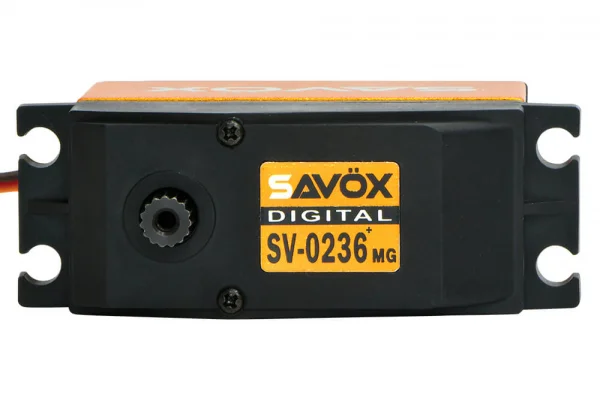

Savox Jumbo HV Digital Servo - 40kg 0.17s
Brand: Savox
Part No: SAV-SV0236MG+
In Stock: Usually ships same day
The Savox SAV-SV0236MG+ Jumbo HV Digital Servo is engineered for heavy-duty RC applications where high torque and dependable control are essential. Delivering up to 40kg-cm of torque with a 0.17s transit time at 7.4V, it combines robust construction with precise digital control. A steel gear train, dual ball bearings and an aluminium heatsink case help ensure durability, smooth operation and stable temperatures under load. The jumbo form factor and high-voltage capability make it well suited to demanding models.
As part of the latest "+" revision, this servo benefits from a Soft Start Mode and Sanwa SSR compatibility. It is designed with heavy-duty horns and mounts, supporting installation in larger platforms where strength and reliability are critical. Typical use cases include 1/5th scale RC cars, large boats and aircraft (suggested compatibility).
Features
- 12-bit (4096) resolution digital control with unique steel gear train
- High speed, excellent efficiency and low power consumption
- Aluminium case design aids cooler, smoother operating temperatures

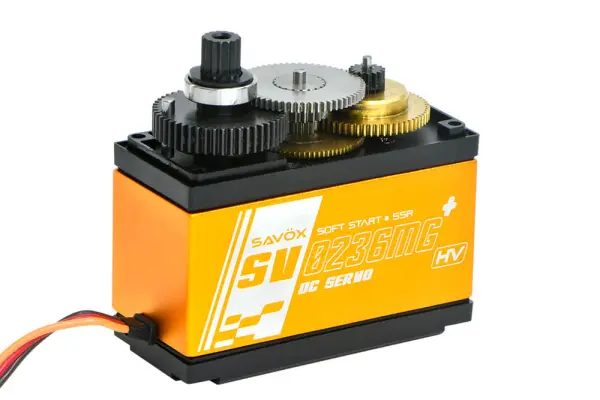

- Extremely strong steel gears for long life and durability
- Super light-weight for its class
- Suggested compatibility: 1/5 scale vehicles
- Plus model enhancements: Soft Start Mode and Sanwa SSR compatibility
Specifications

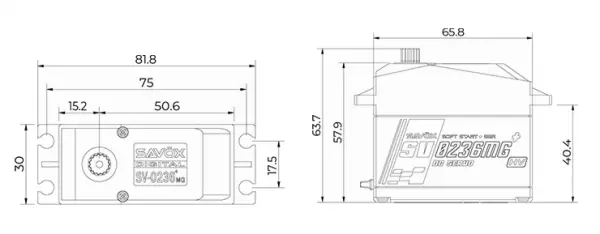

- Dimensions (mm): 65.8 x 30 x 57.4
- Weight (g): 200
- Speed (@6.0V sec/60): 0.21
- Torque (@6.0V kg-cm): 30
- Speed (@7.4V sec/60): 0.17
- Torque (@7.4V kg-cm): 40
- Gear: Metal
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 15 Tooth Spline
For builders seeking a reliable jumbo-size HV digital servo with strong holding power and consistent response, the Savox SAV-SV0236MG+ offers a balanced mix of torque, speed and durability suitable for large-scale RC projects.
Secured by Stripe
Savox jumbo sized servos for all heavy duty applications such as 1/5th scale cars, large boats and aircraft. Built to handle load and power these 7.4v compatible, digital servos feature all steel metal gear train, full ball bearings, heatsink case body and heavy duty horns and mounts.
Features- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears
- Super light-weight
- High speed, incredible efficiency, and low power consumption
- Extremely strong metal steel gears ensure long-life and durability
- The full aluminium case design not only looks good but also allows for cooler and smoother operating temps
- Ideal for 5th scale vehicles
- Dimensions (mm): 65.8 x 30 x 57.4
- Weight (g): 200
- Speed (@6.0V sec/60): .21
- Torque (@6.0V kg-cm): 30
- Speed (@7.4V sec/60): .17
- Torque (@7.4V kg-cm): 40
- Gear: Metal
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 15 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SV0236MG+
- Barcode: 4710006994765
- Max Voltage: 7.4v
- Gear Material: Metal
