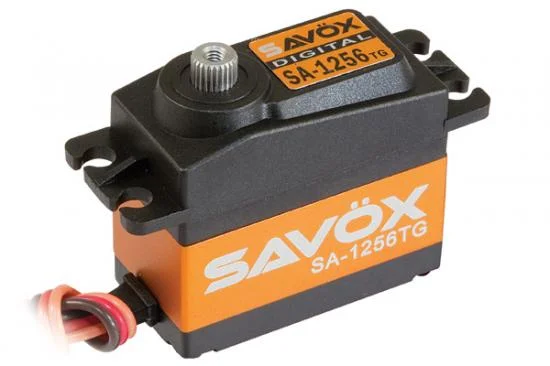

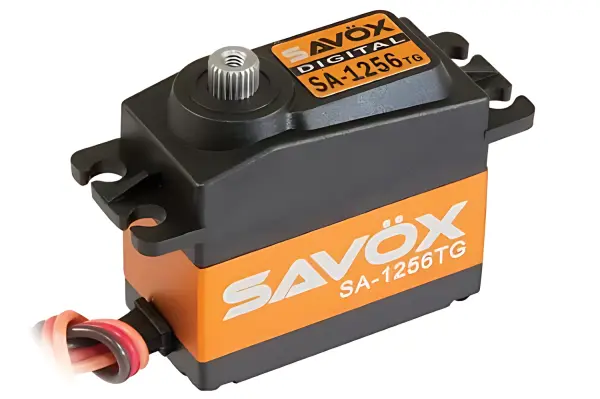

Savox SA1256TG High Torque Servo 20kg 0.15s Titanium
Brand: Savox
Part No: SAV-SA1256TG
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #SAV-SA1256TG+ AS A REPLACEMENT
Description
The Savox SA1256TG High Torque Servo - 20kg - 0.15s (part number SAV-SA1256TG) is a standard-size digital servo designed for demanding control surfaces. It pairs a coreless motor with a titanium and aluminium geartrain to deliver quick response, high efficiency and long-term durability, with minimised backlash that suits wing installations on RC planes.
At 6.0V it offers 277.7 oz-in of torque with a 0.15 sec/60 response, while the aluminium case helps maintain cooler, smoother operating temperatures. A 25T spline and dual ball bearings round out a precise, reliable specification at just 52.4 g.
Key Features
- Leading-edge control with super high 12-bit (4096) resolution and titanium gears
- Super lightweight design
- Coreless motor for high speed, excellent efficiency and low power consumption
- Titanium gears for long life and durability
- Aluminium case aids cooling and ensures smooth operation
- Environmentally friendly materials and production
- Ideal for plane applications where minimised backlash is needed
Specifications
- Dimensions (mm): 40.3 x 20.2 x 37.2
- Weight: 52.4 g
- Speed @ 4.8V (sec/60°): 0.18
- Torque @ 4.8V (oz-in): 222.2
- Speed @ 6.0V (sec/60°): 0.15
- Torque @ 6.0V (oz-in): 277.7
- Gear: Titanium & Aluminium
- Bearing: 2BB
- Case: Aluminium
- Spline: 25 Tooth
Secured by Stripe
Savox SA1256TG High Torque Servo - 20kg - 0.15s Manuals & Guides
How-To Guides & Articles
Specifications
This is the Savox SA-1256TG Standard Digital "High Torque" Titanium Gear Servo. The SA-1256TG pushes 277.2 oz of torque and this servo is perfect for those who are looking for a minimized backlash to use in the wings of RC planes. The SA-1256TG sports titanium and metal gears to keep things strong and running smooth.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears
- Super light-weight
- Coreless motor provides high speed, incredible efficiency, and low power consumption
- Titanium gears ensure long life and durability
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps
- Our servos are totally green – from materials to production, these servos are environmentally friendly
- Ideal for plane applications where a minimized backlash is needed
Specifications:
Dimensions(mm): 40.3x20.2x37.2
Weight(g): 52.4
Speed(@4.8V sec/60): .18
Torque(@4.8V oz-in): 222.2
Speed(@6.0V sec/60): .15
Torque(@6.0V oz-in): 277.7
Gear: Titanium & Aluminum
Bearing: 2BB
Case: Aluminum
Spline: 25 Tooth
Key Info:
- Brand: Savox
- Part No: SAV-SA1256TG
- Barcode: 4710006990637
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
