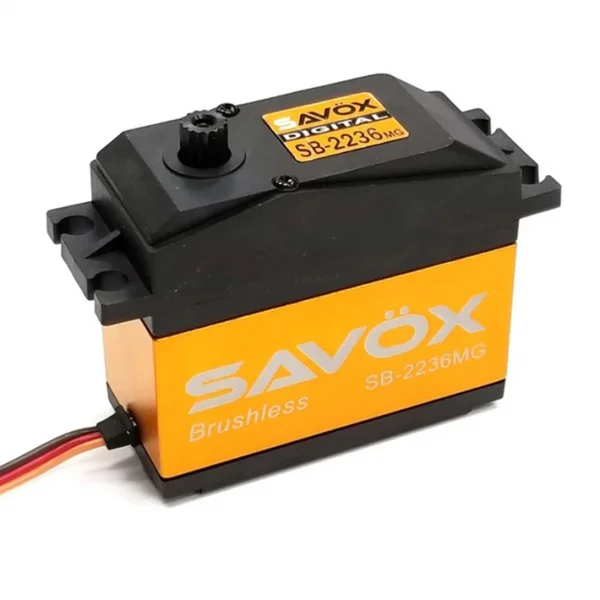

Savox SB2236 HV Digital Large Scale Brushless Servo - 40Kg - 0.13s

Savox SB2236 HV Digital Large Scale Brushless Servo - 40Kg - 0.13s

Brand: Savox

Part No: SAV-SB2236MG

£113.99 RRP £119.99
Pre-Order
Request Price Match Ask a Question Write a Review

The Savox SB2236MG is a high-voltage digital brushless servo engineered for large-scale, heavy-duty RC applications. Delivering up to 40 kg/cm of torque with a 0.13s/60° transit speed at 7.4V, it combines power, speed and durability in a jumbo-sized form factor. A unique steel gear train, dual ball bearings and a part-metal heatsink case enhance strength and thermal performance, while the 15T spline output provides secure horn fitment. Part number SAV-SB2236MG.

Features

  • HV digital brushless design for strong, consistent performance
  • Up to 40 kg/cm torque at 7.4V; 32 kg/cm at 6.0V
  • 0.13 s/60° at 7.4V; 0.16 s/60° at 6.0V
  • Unique steel gear train for durability
  • 2 x ball bearings for smooth output
  • Part-metal heatsink case body
  • Heavy-duty horns and mounts
  • 15-tooth spline output (15T)

Specifications

  • Dimensions: 65.8 x 30 x 57.4 mm
  • Weight: 225 g
  • Speed (sec/60°): @6.0V 0.16; @7.4V 0.13
  • Torque (kg/cm): @6.0V 32; @7.4V 40
  • Gears: Unique steel
  • Bearing: 2BB
  • Case: Part metal
  • Servo Horn Spline: 15 tooth

Suggested Compatibility

  • 1/5th scale cars
  • Large boats
  • Aircraft
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Savox jumbo sized servos for all heavy duty applications such as 1/5th scale cars, large boats and aircraft. Built to handle load and power these 7.4v compatible, digital servos feature all steel metal gear train, full ball bearings, heatsink case body and heavy duty horns and mounts.

Specifications
  • Dimension: 65.8 x 30 x 57.4mm
  • Weight: 225g
  • Speed (sec/60°): @6.0v 0.16, @7.4v 0.13
  • Torque (kg/cm): @6.0v 32, @7.4v 40
  • Gears: Unique Steel
  • Bearing: 2BB
  • Case: Part Metal
  • Servo Horn: 15 Tooth Spline
Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

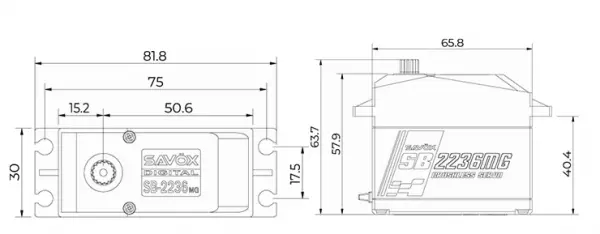

Dimensions


Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.



Key Info:
  • Brand: Savox
  • Part No: SAV-SB2236MG
  • Barcode: 4710006993805
  • Max Voltage: 7.4v
  • Gear Material: Metal
