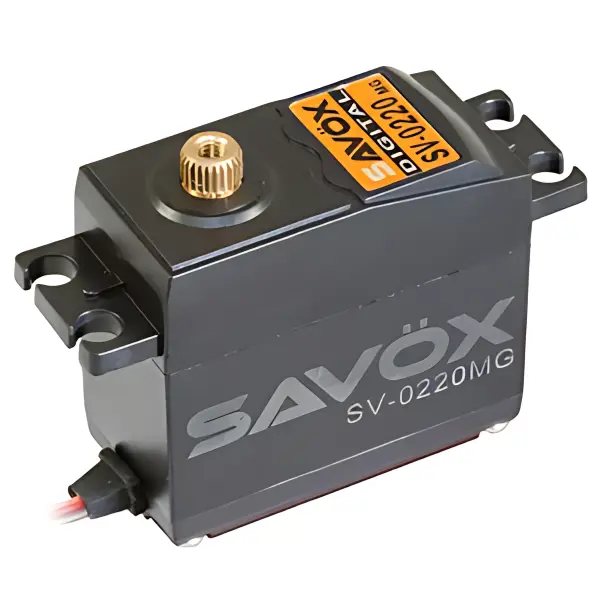

Savox SV0220MG Digital Metal Geared Servo - 8kg - 0.13s

The Savox SV0220MG is a standard-size, high-voltage digital metal gear servo delivering up to 8kg of torque with a 0.13s transit time at 7.4V. Its robust metal gear train, efficient DC motor and 25-tooth spline offer dependable control across demanding RC applications. Part number SAV-SV0220MG.

Features

• High voltage capable on a budget
• DC motor
• Totally Green – environmentally friendly materials and production

Specifications

• Speed: 0.16 sec/60 @ 6.0V; 0.13 sec/60 @ 7.4V
• Torque: 90.3 oz-in @ 6.0V; 111.1 oz-in @ 7.4V
• Dimensions: 40.7 x 20.2 x 37.0 mm
• Weight: 59.0 g
• Gears: Metal
• Bearing: 1BB
• Case: Plastic
• Spline: 25 tooth

Suggested Compatibility

• Planes (aircraft)
• 1/8 scale cars and trucks
• 1/10 scale cars and trucks
• Boats
• Helicopters

Important Note

Certain receiver and ESC combinations may cause brown-out issues with Savox servos. An external BEC or a BEC‑stabilising receiver capacitor may be required for efficient, glitch-free operation in low-voltage electric applications.
