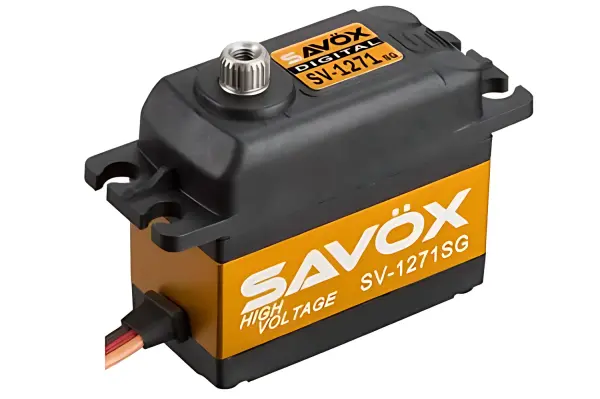

Savox SV1271SG 25kg HV Servo 0.08s Steel Gear

The Savox SV1271 High Voltage Standard Size Servo (part number SAV-SV1271SG) delivers ultra-fast response and high torque in a robust, standard-size package. Rated at 0.08s/60° and approximately 25kg at 7.4V, this digital servo combines precision steel gears with a coreless motor for smooth, efficient performance under demanding loads. A rigid aluminium case aids heat dissipation, while dual ball bearings and a 25-tooth spline provide secure, accurate control.

Features

• Super fast for its size at 0.08 sec/60° (at 7.4V).
• Unique, precision-made steel gears for high durability under heavy use.
• Coreless motor for smoother, faster and more efficient output.
• Specially designed for high voltage, native 2S LiPo operation.

Specifications

• Dimensions (mm): 40.3 x 20.2 x 37.2
• Weight (g): 63.0
• Speed (@6.0V sec/60): .11
• Torque (@6.0V oz-in): 277.7
• Speed (@7.4V sec/60): .08
• Torque (@7.4V oz-in): 347.2
• Gears: Unique steel
• Bearings: 2BB
• Case: Aluminium
• Spline: 25 tooth

Suggested Compatibility

• Large-scale airplanes
• Jets
• 1/5th scale surface models

Engineered for high-voltage systems and heavy-duty applications, the Savox SV1271SG is a strong choice when fast transit speed and reliable torque are priorities in a standard-size footprint.
