Schumacher CAT PB-M 1/10 4WD Buggy Kit (K222)
Brand: Schumacher
Part No: SCH-K222
£539.00
RRP £599.99
Shadow Stock: Usually ships within 2 days
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceA great starting point to get into racing. Use this combo as a base - but please contact our team with any questions you may have.
1× Fastrax Hardened Hex Driver Set 4 Sizes (1.5/2.0/2.5/3.0mm)
1× Voltz LiPo Charge Sack Bag - Medium 22cm x 18cm
1× Pinion Gear 48DP 22T (7075 Hard Alloy)
1× eTronix Low Profile Digital Metal Gear Servo - 8.2Kg/0.11s
1× Sanwa MX-6 Radio Set with RX-391W Receiver
1× Overlander VSR Mini 6A 60W AC Charger
1× XT60 - XH 2S Balance Charger Lead - 4mm/5mm Plugs
1× Hobbywing XR10 Justock G3S ESC Combo With G2.1 10.5T Motor
1× MRT MPTX Transponder
1× Wheelspin Raceway HD Rubber Pit Mat - 750 x 500mm
1× Wheelspin Raceway £20 Gift Voucher Certificate
1× ABM LiPo HV Race Battery - 4800mAh 7.6V 140C 5mm Shorty - BRCA Approved
£915.92£1,059.40Save £143.48
A step up from our basic combo, this adds a better radio, motor, ESC, tools and other goodies. Use this combo as a base - but please contact our team with any queries.
1× ArrowMax Hex Driver Tool Set - 1.5 2.0 2.5 & 3.0 X 120mm - 4 Pieces - 1× Pinion Gear 48DP 22T (7075 Hard Alloy)
1× Hobbywing Xerun V10 10.5T Black G3 Motor- 1× XT60 - XH 2S Balance Charger Lead - 4mm/5mm Plugs
1× Power HD R12S Metal Gear Digital Servo - 12kg - 0.06s
1× Futaba T-4PM Plus With R334SBS-E Receiver
1× SKY RC D100neo AC/DC Dual Balance Charger- 1× MRT MPTX Transponder
- 1× Wheelspin Raceway HD Rubber Pit Mat - 750 x 500mm
- 1× Wheelspin Raceway £20 Gift Voucher Certificate
1× ABM LiPo HV Race Battery - 4400mAh 7.6V 140C 5mm Shorty - BRCA Approved
1× Hobbywing XERun XR10 Pro Legacy Speed Control - Black
£1,306.15£1,465.90Save £159.75
Best value
A step up again from our intermediate combo, this adds a top spec radio, motor, ESC plus a great charger, tools and other must haves. Use this combo as a base - but please contact our team for more information on anything you need to know.
- 1× ArrowMax Hex Driver Tool Set - 1.5 2.0 2.5 & 3.0 X 120mm - 4 Pieces
- 1× Pinion Gear 48DP 22T (7075 Hard Alloy)
1× Hobbywing Xerun V10 6.5T Black G3 Motor- 1× XT60 - XH 2S Balance Charger Lead - 4mm/5mm Plugs
1× Power HD S15 Low Pro HV Servo - 15kg - 0.06s
1× Futaba 10PX Transmitter With R404SBS Receiver
1× Hobbywing XERun XR10 Pro ESC - Black- 1× SKY RC D100neo AC/DC Dual Balance Charger
- 1× MRT MPTX Transponder
- 1× Wheelspin Raceway HD Rubber Pit Mat - 750 x 500mm
- 1× Wheelspin Raceway £20 Gift Voucher Certificate
- 1× ABM LiPo HV Race Battery - 4400mAh 7.6V 140C 5mm Shorty - BRCA Approved
£1,749.40£1,964.30Save £214.90
Frequently Bought With
Other items customers often buy with the Schumacher CAT PB-M
Description

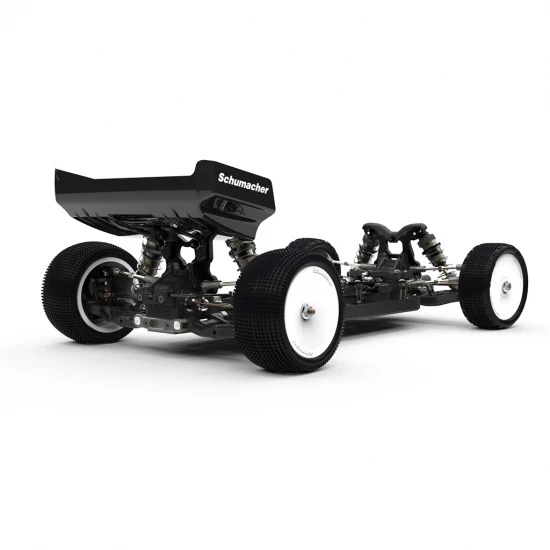

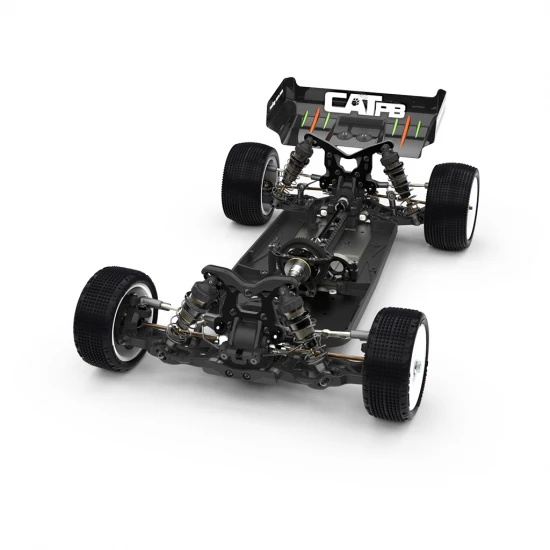

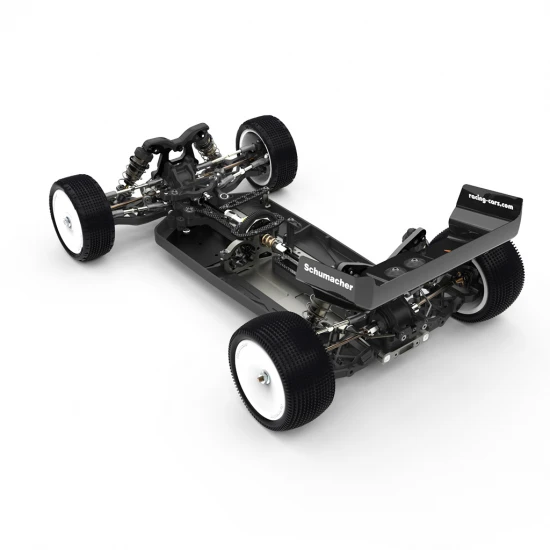

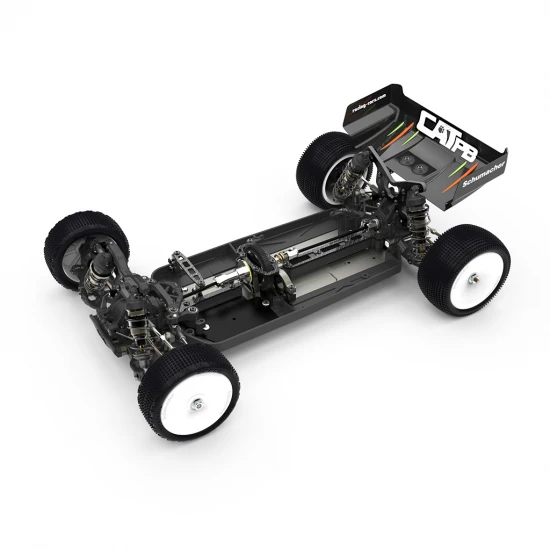

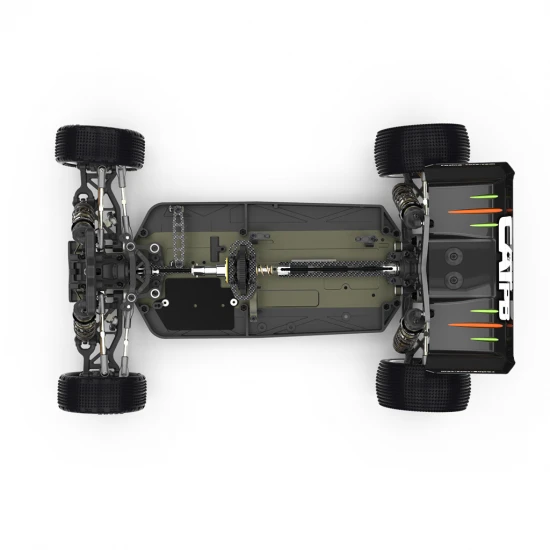

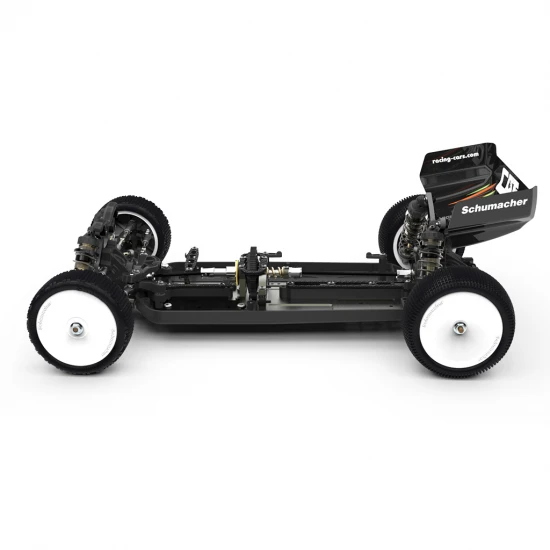

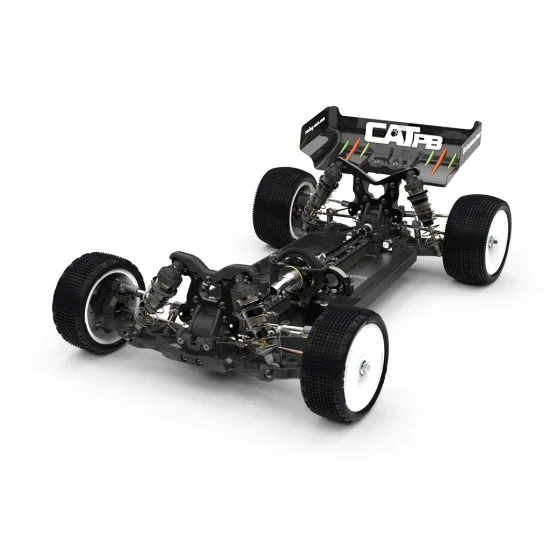

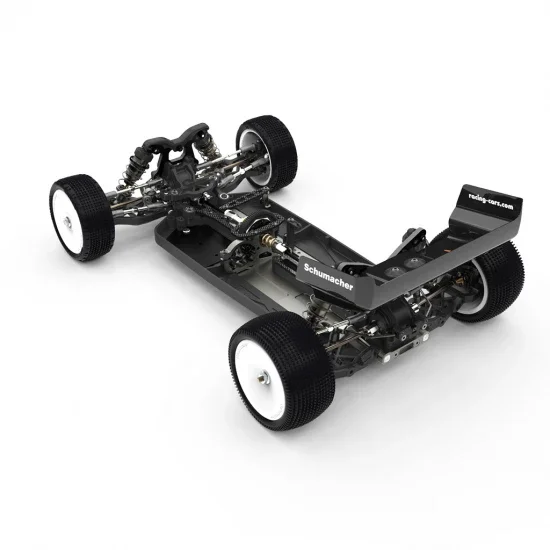

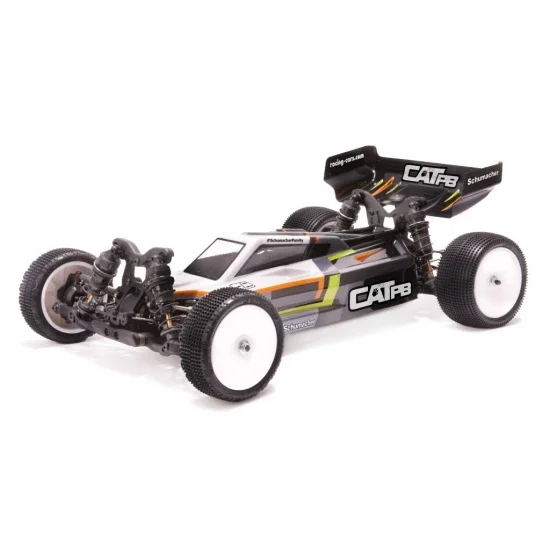

The Schumacher CAT PB-M (K222) is a 1/10 scale 4WD competition off-road buggy kit from the iconic CAT PB platform, created to honour the late Phil Booth. Blending modern engineering with Schumacher’s racing heritage, it focuses on efficient shaft-driven power delivery, a low centre of gravity, and easy maintenance for consistent lap-after-lap pace.
A refined driveline, optimised suspension geometry and a narrow 7075-T6 aluminium chassis provide sharp handling and stability on dirt, astro or carpet. Finished with an aggressive JConcepts S2 body and matched wing, the CAT PB-M is engineered for serious racers seeking performance and durability.
Key Features
- All-new shaft-driven 4WD platform for efficiency and reliability.
- DIRT Spec: Shaft drive with three differentials for low-grip tracks; includes CVD rear driveshafts and U/J front.
- MOD Spec: Shaft drive with two differentials plus FAB (Front Adjustable Brake) unit/slipper for high-grip surfaces; includes U/J driveshafts front and rear.
- Oil-filled, small-diameter differentials with gasket seals for superior sealing, low weight and low CG.
- 80T spur gear, simple to fit.
- Diff-height eccentrics with five settings to tune for any grip level.
- Fast-access transmission housings for quick diff changes.
- Front and rear U/J driveshafts for durability and improved bump handling.
- Stronger front hub carrier bearing assembly.
- Alloy motor and layshaft mount housings with laser-etched eccentric adjustment for precise gear mesh.
- Long front wishbones with moulded anti-roll bar ball and large-span inner hinge pin bosses for impact strength.
- Revised rear wishbone for improved flex characteristics.
- Suspension pills/inserts to adjust track width, roll centre, toe and anti-squat.
- Robust front and rear suspension straps/blocks; strong rear hinge pins.
- Rear hub carrier with seven height options; camber plate with multiple positions.
- Improved anti-roll bar fitment with matched front and rear bars.
- S2 4 mm shock towers with angle adjustment and multiple camber link positions.
- Lightweight front bumper reduces overhang and improves clearance on tight kick-ups.
- 7075-T6 2 mm hard-anodised aluminium chassis; light, narrow layout keeps weight inboard.
- Composite side pods for dirt sealing and added stiffness.
- Composite centre braces with carbon fibre top braces for tuneable chassis flex.
- Two-point angled servo mount for lower CG, easy access and direct steering response.
- Steering centre track assembly derived from the L1R Recon for precision and durability.
- Speed control carbon fibre tray for easier removal.
- Three-position angled shorty LiPo mounting; quick, secure fitment.
- Pre-drilled tapered shock pistons included.
- JConcepts S2 body for balanced aerodynamics.
- Aerox Trident 6.5″ 1.0 mm wing (AX037).
Required to Complete
- 2 channel radio system
- Motor
- Servo
- Electric Speed Control
- Tyres
- Shorty LiPo battery
- Paint for bodyshell
Specification
- Power source: Electric
- Model type: 4WD, off-road, competition
- Length: 395 mm
- Width: 245 mm
- Wheelbase: 275–285 mm
- Top speed: 40+ mph
Secure Payments
Secured by Stripe
Schumacher CAT PB-M Manuals & Guides
Manuals & Guides
Exploded Diagrams & Parts
Specifications
Introducing the all new CAT PB 1/10th 4WD Off Roader.
Available for Dealer Pre-Order - Due Early September.
Named in honour of the late Phil Booth, Chief Schumacher Designer and former IFMAR World Champion, the Schumacher CAT PB is here to redefine 4WD performance. Built with precision and passion, the CAT PB combines modern engineering with legendary heritage to deliver elite level performance straight out of the box.
At its core, the CAT PB features a shaft-driven 4WD system, delivering explosive acceleration, awesome efficiency, and rock-solid reliability across all surfaces. Refined suspension geometry, enhanced drivetrain dynamics, and a low centre of gravity layout provide razor-sharp handling, making the CAT PB not only blisteringly fast but also remarkably easy to drive, even at the limit. Designed with the racer in mind, the CAT PB also boasts intuitive access and simplified assembly features, making routine maintenance quicker and easier than ever, so you spend less time wrenching and more time winning.
Wrapped in an aggressive, aerodynamic shell from JConcepts and built with race-hardened materials, the CAT PB delivers raw speed, unshakable stability, and the confidence to lead from the front. Drive the CAT PB.
All New Car Design
Key Info:
Available for Dealer Pre-Order - Due Early September.
Named in honour of the late Phil Booth, Chief Schumacher Designer and former IFMAR World Champion, the Schumacher CAT PB is here to redefine 4WD performance. Built with precision and passion, the CAT PB combines modern engineering with legendary heritage to deliver elite level performance straight out of the box.
At its core, the CAT PB features a shaft-driven 4WD system, delivering explosive acceleration, awesome efficiency, and rock-solid reliability across all surfaces. Refined suspension geometry, enhanced drivetrain dynamics, and a low centre of gravity layout provide razor-sharp handling, making the CAT PB not only blisteringly fast but also remarkably easy to drive, even at the limit. Designed with the racer in mind, the CAT PB also boasts intuitive access and simplified assembly features, making routine maintenance quicker and easier than ever, so you spend less time wrenching and more time winning.
Wrapped in an aggressive, aerodynamic shell from JConcepts and built with race-hardened materials, the CAT PB delivers raw speed, unshakable stability, and the confidence to lead from the front. Drive the CAT PB.
All New Car Design
- New – (DIRT Spec) Shaft drive system for simplicity and durability with 3 differentials to distribute power more efficiently on low grip tracks. Includes CVD rear Driveshafts and U/J front.
- New – (MOD Spec) Shaft drive system for simplicity and durability with 2 differentials to distribute power plus a FAB (Front Adjustable Brake) unit/Slipper to improve heavy breaking on higher grip surfaces like carpet and astro. Includes U/J Driveshafts front and rear.
- New – Oil filled small diameter differential design with gasket seal for superior sealing, light weight and durable outputs. Small but with great capacity and low centre of gravity.
- New – 80T simple to fit spur gear.
- New – Diff height eccentrics with 5 settings to optimise for all grip levels and handling requirements.
- New – Fast access transmission housings for speedy differential adjustments.
- New – Front & rear U/J (Universal joint) driveshaft’s for durability as well as great bump handling.
- New – Stronger front hub carrier bearing assembly.
- New – Motor mount and layshaft mount alloy housings, with a laser etched fine graduation scale eccentric adjustment for consistent and easy pinion to spur meshing.
- New – Long front wishbone design with moulded anti roll bar ball. Durable large span inner hinge pin bosses for better impact strength.
- New – Rear wishbone for improved flex.
- New – Suspension pills/inserts for track width, roll centre, toe and anti-squat adjustment. This Increases versatility of setting adjustment as it will allow a multitude of positions suiting all conditions.
- New – Front and rear suspension straps/blocks, strong and simple to work on.
- New – Rear hinge pins, strong and durable.
- New – Rear hub carrier with 7 adjustable heights to tune the wheel stiffness. The camber plate has multiple camber adjustments.
- New – Anti roll bar fitment with easier fitment and matching front and rear anti roll bars.
- New – S2 4mm shock towers with angle adjustment and camber link positioning to meet all handling requirements.
- New – Light weight front bumper design for reduced over hanging weight and material and improve responsiveness of the car. The minimal front bumper offers more clearance on small radius kick up jumps.
- New – 7075- T6 2mm aluminium chassis hard anodised, this chassis is durable, light and narrow keeping the weight inboard.
- New – Composite side-pods for chassis sealing from dirt ingress and chassis stiffening.
- New – Composite centre braces with Carbon fibre top braces for tuneable chassis stiffness.
- New – Two point angled mounting servo assembly, for lower centre of gravity, easy access, and direct steering response.
- New – Steering centre track assembly, geometry derived from our L1R Recon system. Precise, adjustable and durable.
- New – Speed control carbon fibre tray for easier removal.
- New – 3 position lipo mounting with angled fit for lower centre of gravity. Quick and secure lipo fitment.
- New – Pre drilled tapered shock pistons included.
- New – Jconcepts S2 body, for great styling. A perfect design for all conditions.
- AX037 - Aerox Trident 6.5” wing 1.0mm.
|
|
Key Info:
- Brand: Schumacher
- Part No: SCH-K222
- Barcode: 5051294208899
- Scale: 1:10
- Vehicle Type: Buggy
- Power Source: Electric - No Motor
- Surface Type: Off Road
- Build Level: Unassembled (Kit)
