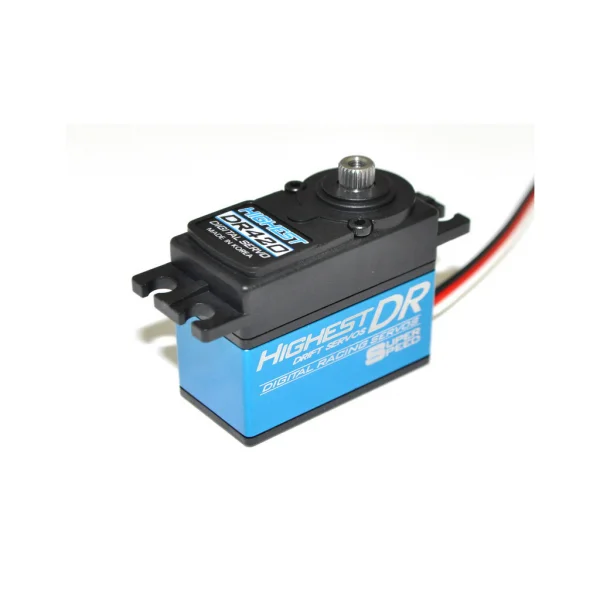

The Highest SCH-HSDR420 is a fast, durable speed servo for precise control in 1/10 scale applications. Delivering 0.07s transit at 6.0V with up to 6.2kg-cm torque, it combines a robust full metal geartrain with an aluminium middle case and practical 25T spline.
Suggested compatibility: 1/10 vehicles.
Specifications
- Operating voltage: 4.8–6.0V
- Operating speed: 0.09s (4.8V), 0.07s (6.0V)
- Dynamic torque: 5.4kg-cm (4.8V), 6.2kg-cm (6.0V)
- Case: aluminium (middle) with plastic (upper, short middle, bottom)
- Gears: full metal
- Motor type: high-efficiency cored DC motor
- Spline: 25T
- Size: 39.5 x 20.0 x 38.6 mm
- Operating temperature: -10 to +60 °C
- Weight: 54 g
- Part number: SCH-HSDR420
Secured by Stripe
Specifications
Servo (Speed) 1/10 .07s 6.2kg
A high quality servo from Highest suitable for 1/10th vehicles.
Specification
Aluminum Case(middle) + Plastic(upper, short middle, bottom)
Full Metal Gear
Operating Voltage : 4.8 ~ 6.0V
Operating Temperature Range : -10 to +60 Degree C
Operating Speed :
(4.8V) : 0.09sec
(6.0V) : 0.07sec
Dynamic Torque :
(4.8V) : 5.4kg-cm / 75.1 oz-in
(6.0V) : 6.2kg-cm / 86.2 oz-in
Motor Type : high efficient Cored dc motor
Size : 39.5*20.0*38.6 mm
25T Spline
Weight : 54 g
Key Info:
- Brand: Highest
- Part No: SCH-HSDR420
- Barcode: 5051294107215
