Servo (Speed) 1:10 .08s 9.9kg

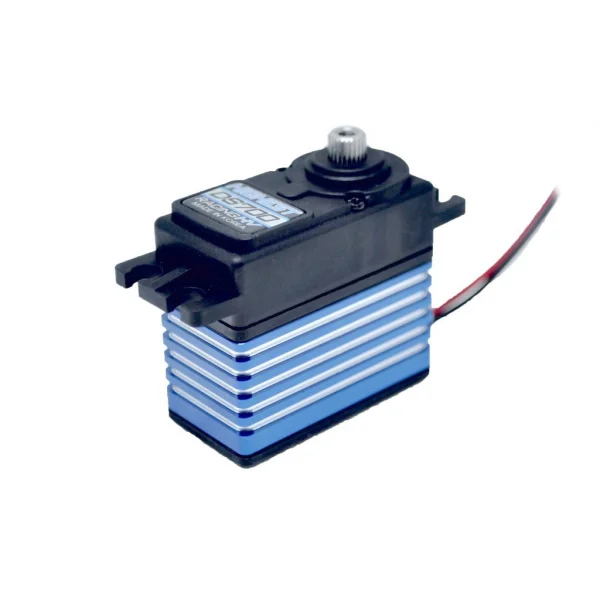

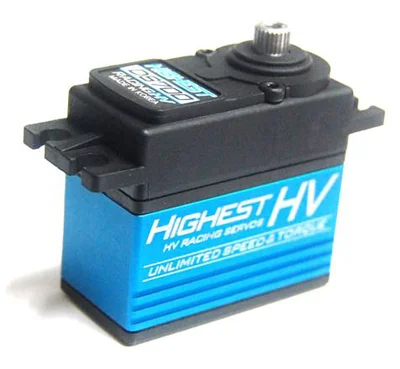

The Highest HSDS700 Speed Servo delivers rapid response for 1/10 scale RC vehicles. With a 0.08s transit time at 6.0V (0.06s at 7.4V) and robust full metal gears, it balances speed with dependable strength. A high‑efficiency coreless motor and aluminium middle case help maintain smooth, consistent performance. This HSDS700 (part number SCH-HSDS700) is suitable for 1/10th vehicles.

Rated for 6.0–7.4V operation, this 25T spline servo offers 9.9kg‑cm of dynamic torque at 6.0V (11.1kg‑cm at 7.4V). Compact dimensions and solid build make it a strong choice for competitive RC applications.

Specifications

• Case: Aluminium middle, plastic upper/short middle/bottom
• Geartrain: Full metal
• Operating voltage: 6.0–7.4V
• Operating temperature: -10 to +60°C
• Speed: 0.08s (6.0V); 0.06s (7.4V)
• Dynamic torque: 9.9kg‑cm / 137.6 oz‑in (6.0V); 11.1kg‑cm / 154.3 oz‑in (7.4V)
• Motor type: High‑efficiency coreless
• Size: 39.5 × 20.0 × 38.6 mm
• Spline: 25T
• Weight: 61.6 g
• Replacement gear set: HSCGRS7001000
