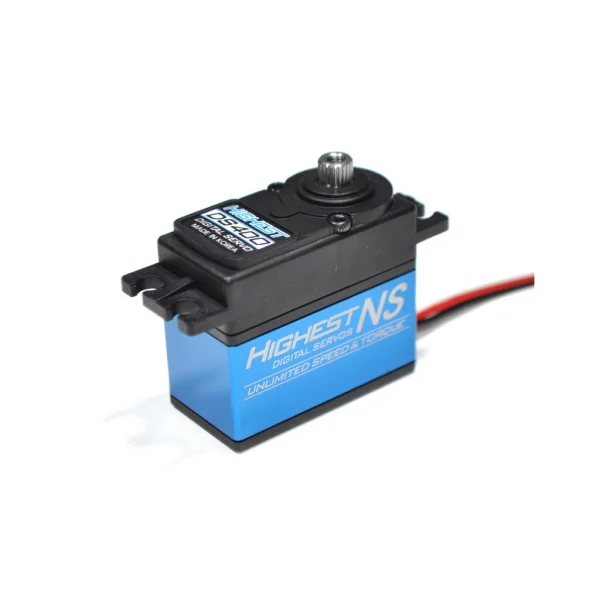

The Highest HSDS400 (SCH-HSDS400) Servo (Speed) 1:10 .09s 7.2kg delivers rapid response and dependable torque for precise RC control. Built with an aluminium middle case and full metal gears, it offers strength and consistent performance. Suggested compatibility: 1/10th vehicles.
With a 25T spline, compact dimensions and efficient cored DC motor, the HSDS400 suits speed-focused setups where crisp steering and throttle/brake response matter.
Specifications
- Operating voltage: 4.8–6.0V
- Operating speed: 0.11s (4.8V), 0.09s (6.0V)
- Dynamic torque: 6.3kg-cm / 87.6 oz-in (4.8V); 7.2kg-cm / 100.1 oz-in (6.0V)
- Motor type: High-efficiency cored DC motor
- Case: Aluminium middle; plastic upper, short middle and bottom
- Gearing: Full metal gear
- Spline: 25T
- Size: 39.5 × 20.0 × 38.6 mm
- Weight: 54 g
- Operating temperature range: -10 to +60°C
Replacement gear set: HSCGRS400.
Secured by Stripe
Specifications
Servo (Speed) 1/10th .09s 7.2kg
A high quality servo from Highest suitable for 1/10th vehicles.
Specification
Aluminum Case(middle) + Plastic(upper, short middle, bottom)
Full Metal Gear
Operating Voltage : 4.8~6.0V
Operating Temperature Range : -10 to +60 Degree C
Operating Speed :
(4.8V) : 0.11sec
(6.0V) : 0.09sec
Dynamic Torque :
(4.8V) : 6.3kg-cm / 87.6 oz-in
(6.0V) : 7.2kg-cm / 100.1 oz-in
Motor Type: high efficient Cored dc motor
Size : 39.5*20.0*38.6 mm
25T Spline
Weight : 54 g
Replacement gear set is part number - HSCGRS400
Key Info:
- Brand: Highest
- Part No: SCH-HSDS400
- Barcode: 5051294106973
