Description

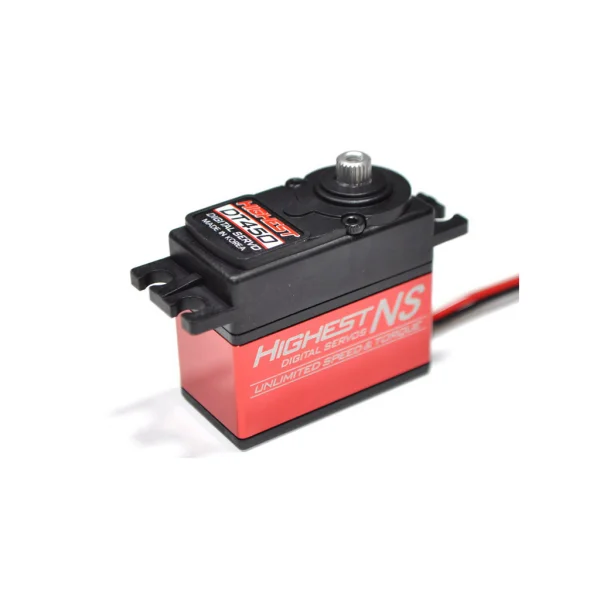

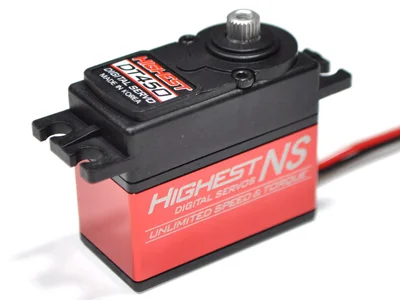

The Highest HSDT450 Servo (SCH-HSDT450) is a high-quality torque servo for 1/10th vehicles, delivering 0.11s transit speed at 6.0V and up to 7.9 kg-cm of torque. Its aluminium centre case and full metal gears provide dependable durability, while a high-efficiency cored DC motor offers smooth, precise control. Suggested compatibility: 1/10 scale RC vehicles.
Key Specifications
- Operating Voltage: 4.8–6.0V
- Operating Speed: 0.13s (4.8V); 0.11s (6.0V)
- Dynamic Torque: 7.2 kg-cm (4.8V) / 7.9 kg-cm (6.0V)
- Torque (4.8V): 100.1 oz-in
- Case: Aluminium centre with plastic upper and lower sections
- Gears: Full metal
- Motor Type: High efficient cored DC motor
- Spline: 25T
- Size: 39.5 × 20.0 × 38.6 mm
- Weight: 54.9 g
- Operating Temperature Range: -10 to +60°C
Replacement Parts
- Replacement gear set: HSCGRS450
Secured by Stripe
Specifications
Servo (Torque) 1/10 .11s 7.9kg
A high quality servo from Highest suitable for 1/10th vehicles.
Specification
Aluminum Case(middle) + Plastic(upper, short middle, bottom)
Full Metal Gear
Operating Voltage : 4.8~6.0V
Operating Temperature Range : -10 to +60 Degree C
Operating Speed :
(4.8V) : 0.13sec
(6.0V) : 0.11sec
Dynamic Torque :
(4.8V) : 7.2kg-cm / 100.1 oz-in
(6.0V) : 7.9kg-cm / 109.8 pz-in
Motor Type: high efficient Cored dc motor
Size : 39.5*20.0*38.6 mm
25T Spline
Weight : 54.9 g
Replacement gear set is part number HSCGRS450
Key Info:
- Brand: Highest
- Part No: SCH-HSDT450
- Barcode: 5051294107222
