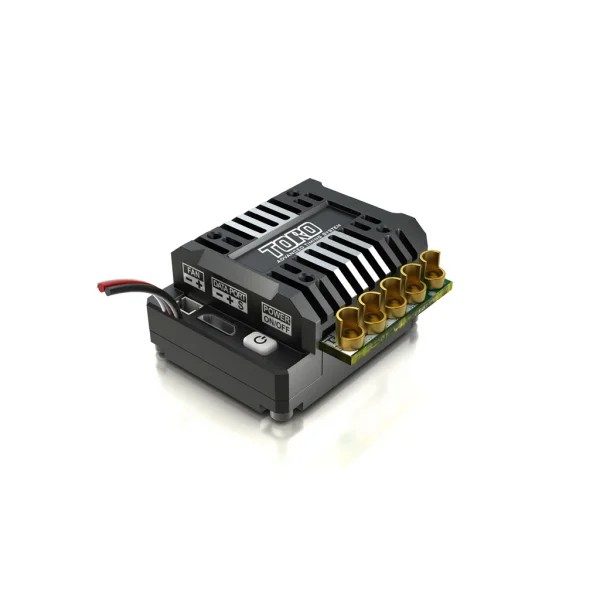

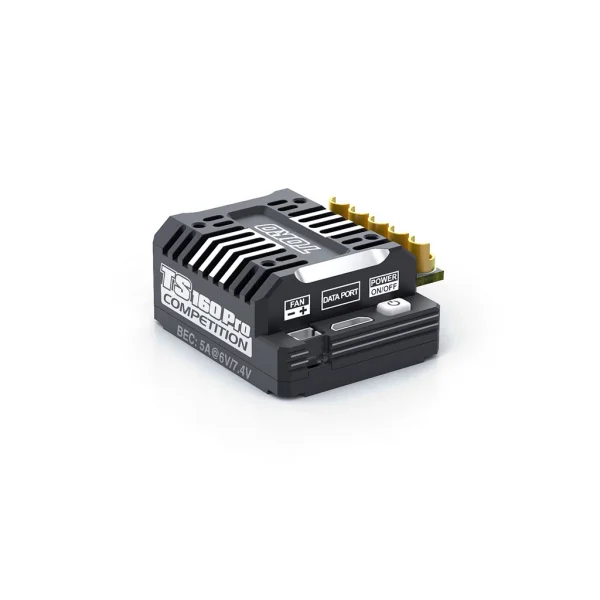

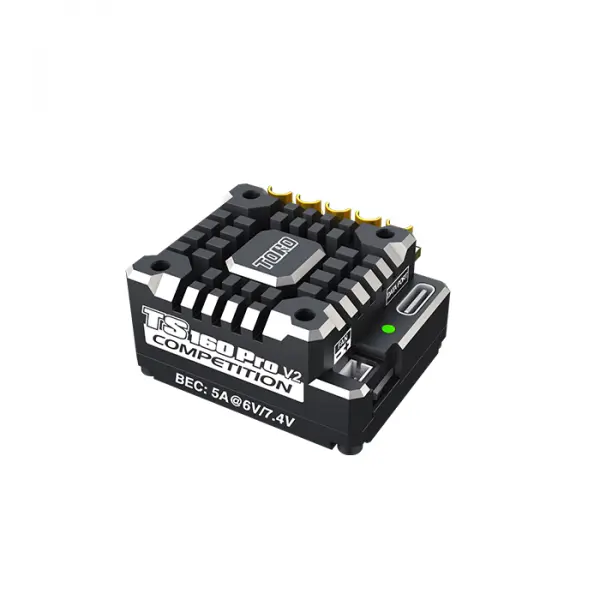

SkyRC TS160 Pro ESC

From SKY RC is the TS160 Pro Brushless Speed Control.

Suitable for, 1/10th Touring, 1/10th Buggy and 1/10th Crawlers.

Pro ESC for Demanding Pros
Supercharged by the high-performance chip from STMicroelectronics, TS160 Pro ESC takes its power and efficiency further than ever.  The proprietary optimized algorithm makes the speed control snappy and responsive in precise and sophisticated computing.  For 1/10 RC Cars, TS160Pro is definitely a Pro ESC with exceptional performance without equal.

Built in BEC
The speed controller comes with a built-in BEC, outputting a current of upto 15A at voltages swithchable between 6 and 7.4v

Play it Cool
The High-speed cooling fan keeps dissipating heat actively; the select copper posts can carry a high current.  The internal heat of the ESC is dissipated to ensure that the ESC is running at the proper temperature!

Vibing and Protected
Empowered by SKY RC's latest proprietary PowerRun algorithm, the powerful hardware ensures multiple real-time protection while providing extreme violent output.
Its significantly eliminates the stakes of damage to the ESC under high load, and the reliability and durability are drastically improved!

Be Blue Go Smart
Say goodbye to cables!
TS160 can easily connect to the smartphone via the Bluetooth dongle. SK-600135 (sold separately) Now drivers can set various parameters and read data at the track.  With over-the-air (OTA), firmware updating via Bluetooth is a breeze!

Player Mode: Programming is Your Call
Almost 40 parameters commonly used in 1/10th RC power systems can be programmed.  Acceleration force, brake force, Boost/Turbo timing etc can be easily set through the RC Gear app according to your power demands.

Features

- Easy setting by app control. Requires Bluetooth dongle SK-600135
- Monitor the real-time racing data via the app.
- Boost Timing Activation: RPM Mode & Throttle Mode.
- Aluminium enclosure with better heat dissipation.
- Switch automatically between Sensor and Sensorless modes. Over-voltage Protection, - Low-voltage Protection, Temperature
- Protection., Motor Stall Protection**

Specifications

- Constant/Peak Current: 160A/850A
- Compatible Motor: Brushless Sensored & Sensorless Brushless Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Crawlers Motor Turns: 1/10 Touring Car 4.5T; 1/10 Buggy - 5.5T Battery Cell: 6-9S NiMH/ 2-3S LiPo
- BEC Output: 6V/7.4V (Default: 6V)
 - Low-voltage Production:
OFF, Auto, 3-llV Adjustable (Default: Auto, LiPo: 3.2V/cell
- Over Temperature Protection:
OFF, 95°C /105°C /130°C (Default: 105°C)
- Cooling: Fan
- Size: 39x38x19mm
- Net Weight: 97g


Key Info:

• Brand: SkyRC
• Part No: SCH-SK-300078
• Barcode: 5051294187873
• Motor Type: Brushless
• LiPo Compatible: Yes
