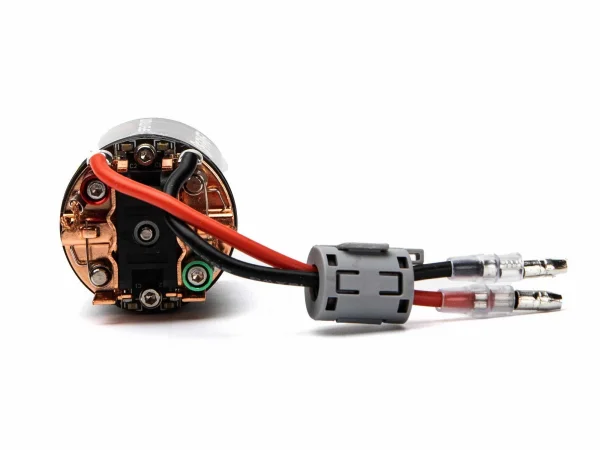

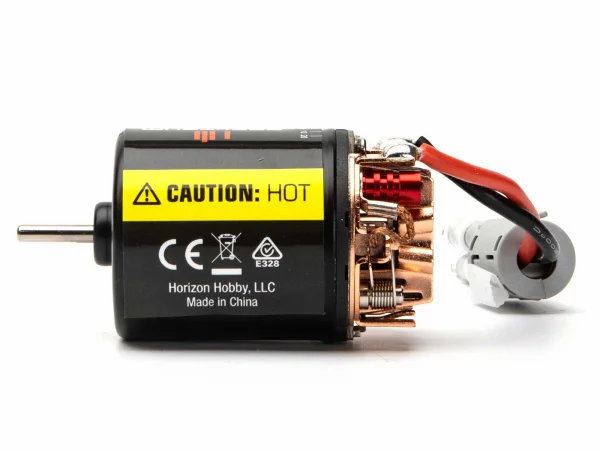

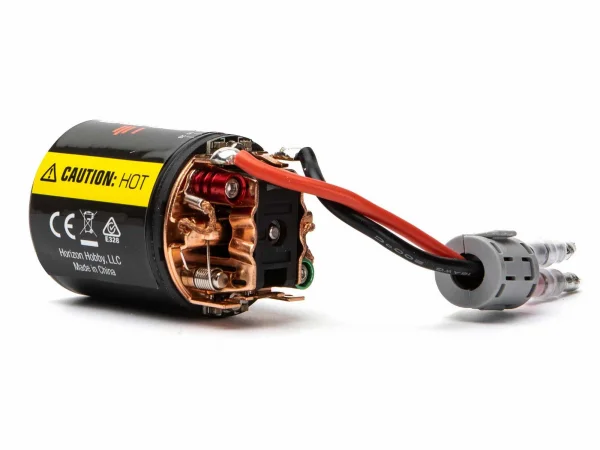

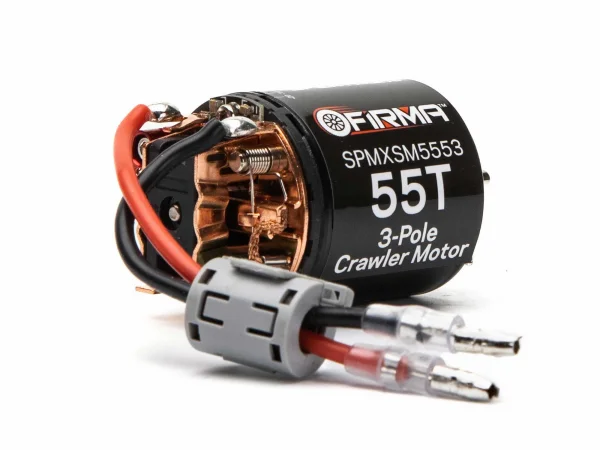

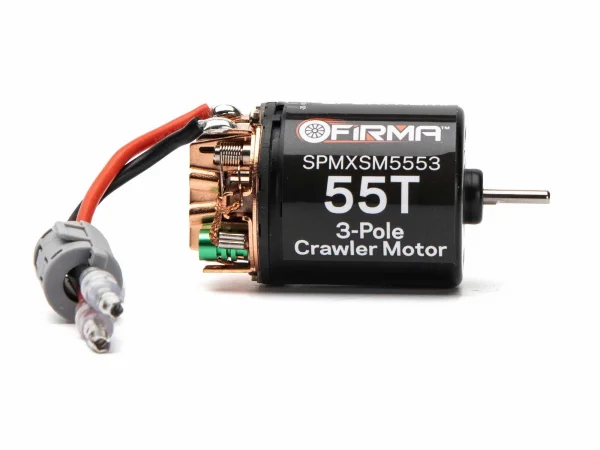

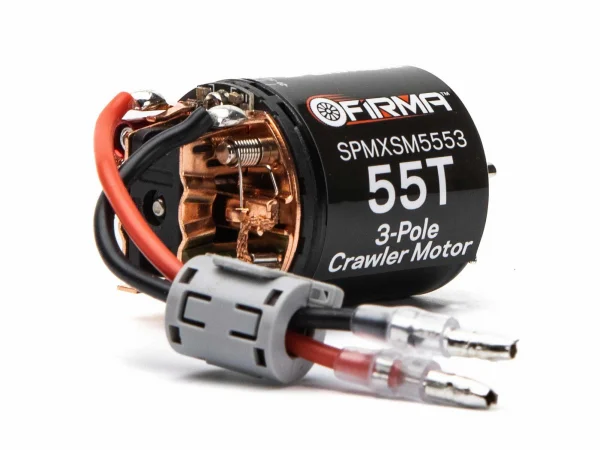

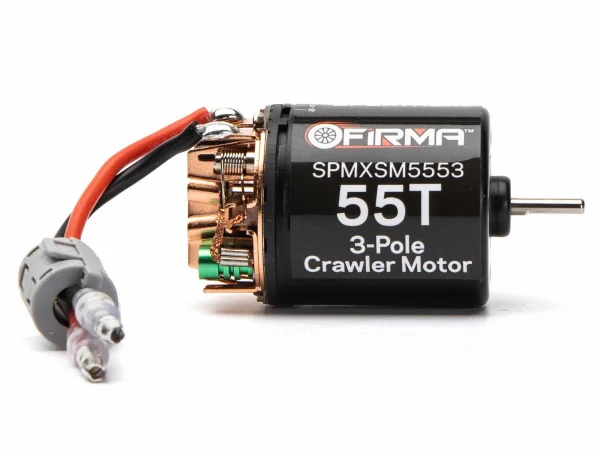

Spektrum Firma 55T Brushed Crawler Motor – SPMXSM5553
Brand: Spektrum
Part No: SPMXSM5553
Supplier Stock: Expected August 8th
Request Stock NotificationFinance options available at checkout.
Fits These Models (4)
Description
Take to the trails with the Spektrum Firma 55T Rebuildable 3‑Pole Brushed Crawler Motor (SPMXSM5553). Designed as a low‑cost upgrade for brushed ESC‑equipped 1/10 scalers and crawlers, this 540‑size unit delivers strong torque, smooth control and excellent efficiency, with the added benefit of a fully rebuildable design and adjustable timing.
Key Benefits
- 3‑pole design for maximum torque and efficiency
- Fully rebuildable for simple maintenance and longer lifespan
- Adjustable timing (0–20°) for expert‑level tuning
Features
- Available in 35T, 55T and 80T turn options
- 540 can size upgrade for most 1/10 vehicles
- Adjustable timing for clockwise or counter‑clockwise rotation
- Pre‑shaped curved face brushes – no break‑in period required
- Wires with 3.5mm bullets installed – no soldering required
- Dual rubber‑sealed bearings
- Fully rebuildable with accessible commutator and replaceable brushes, springs and bearings
Specifications
- Turns: 55T
- Motor type: Brushed, 3‑pole
- Size: 540, length 2.1" (53 mm), outer diameter 1.4" (36 mm)
- Shaft diameter: 0.125" (3 mm)
- Connector: 3.5 mm bullet
- Bearing type: Dual rubber‑sealed bearings
- Weight: 169 g (6.0 oz)
- Water‑resistant: No
- Forward/Reverse: Yes/Yes
- Application: 1/10 scaler/crawler; crawling and surface use
Suggested Compatibility
Suggested compatibility: 1/10 scale scalers and crawlers that accept a 540 brushed motor with 3.5 mm bullet connections.
In The Box
- Spektrum Firma 3‑Pole Rebuildable Brushed 55 Turn Motor
- Product manual
Required to Complete
- Brushed ESC, 40 A or higher
Secured by Stripe
Spektrum Firma 55T Rebuildable 3-Pole Brushed Crawler Motor Manuals & Guides
Manuals & Guides
Specifications
The Spektrum Firma 3-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th scale Crawlers and Scalers. Featuring fully rebuildable design, impressive torque and speed, and excellent efficiency.
Key Benefits- 3-Pole Design: Industry standard design for max torque and efficiency
- Fully Rebuildable: Easy to replace parts for simple maintenance and increased motor lifespan
- Adjustable Timing: 0 to 20 degree timing adjustments for expert level tuning and increased performance
- Available in 35, 55, and 80 Turn configurations
- 540 can size – perfect upgrade for most 1/10th scale vehicles
- Adjustable timing for clockwise and counterclockwise motor rotation
- Pre-shaped curved face brushes – No break-in period required!
- Wires and 3.5mm bullets installed – No soldering required!
- Dual rubber sealed bearings
- Fully rebuildable with an easily accessible commutator and replaceable brushes, springs, and bearings.
Spektrum Firma 55T Rebuildable 3-Pole Brushed Crawler Motor Specfications:
- Turns: 55T
- Adjustable Timing: Yes
- Product Application: Crawling, Surface
- Application: 1/10 Scaler/Crawler
- Number of Poles: 3
- Product Weight: 169g (6.0 oz)
- Shaft Diameter: 0.125" (3 mm)
- Water-Resistant: No
- Connector Type: 3.5mm Bullet
- Motor Size: 540-Size
- Product Length: 2.1" (53 mm)
- Bushing Or Bearing: Bearing
- Forward: Yes
- Reverse: Yes
- Outer Diameter: 1.4" (36 mm)
- Motor Type: Brushed
- (1) Spektrum Firma 3–Pole Rebuildable Brushed 55 Turn Motor
- (1) Product Manual
- (1) Brushed ESC 40 Amp or Higher
Key Info:
- Brand: Spektrum
- Part No: SPMXSM5553
- Barcode: 0605482124925
- Fitment: Option Part
