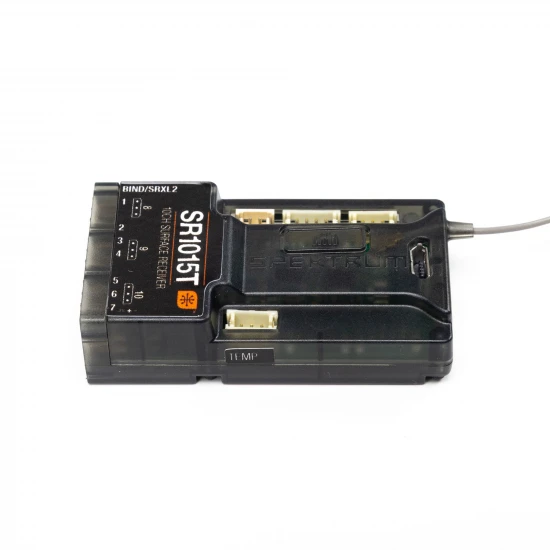

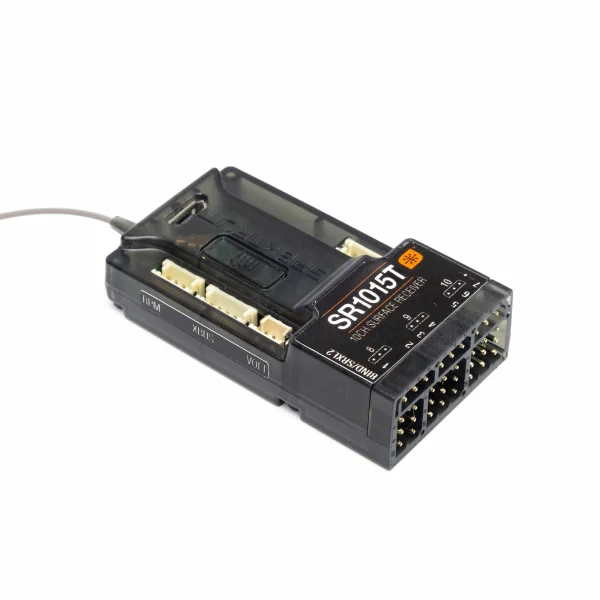

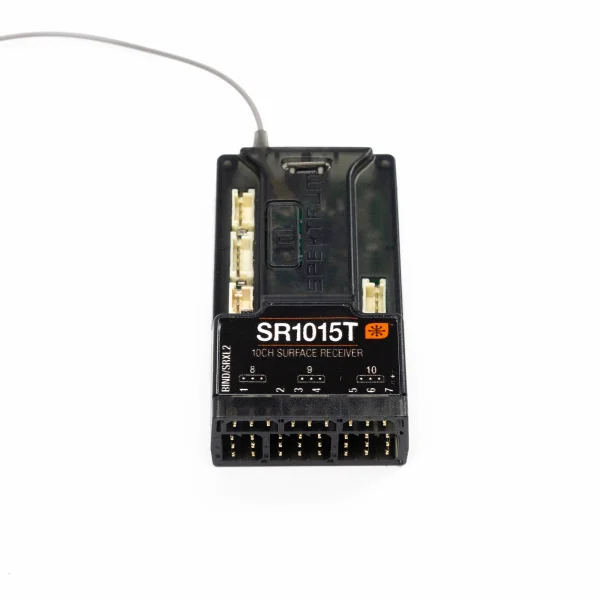

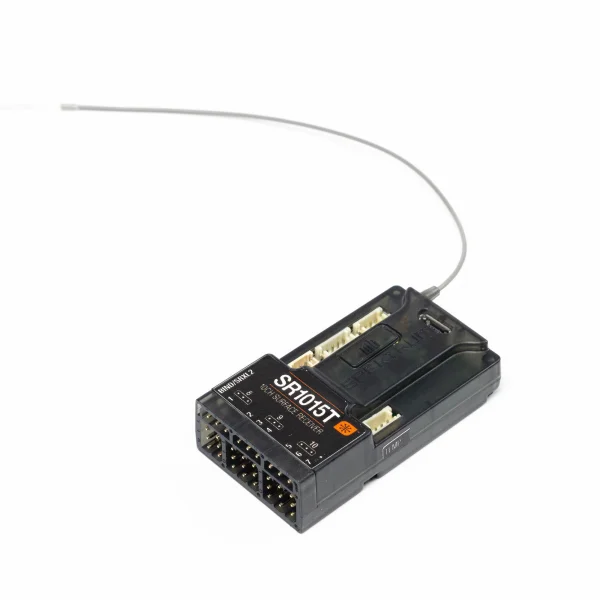

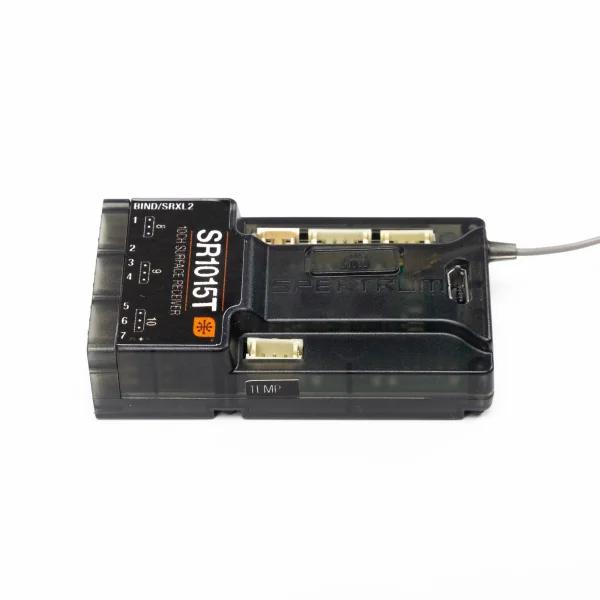

Spektrum SR1015T 10 Channel DSMR Receiver

The Spektrum SR1015T is a 10-channel DSMR/DSMR+ surface receiver designed to unlock extensive control for modern RC vehicles. When paired with a DSMR+ capable transmitter, it provides expanded channel options for crawlers and bashers, and is Smart technology ready for real-time telemetry with compatible systems. Suggested compatibility includes DSMR and DSMR+ surface transmitters.

Key Features

• 10-channel DSMR / DSMR+ surface receiver
• Water-resistant design
• Full-range telemetry capabilities with Spektrum Firma Smart ESC
• Long antenna suited for low-to-the-ground vehicles and similar applications
• Bind-button eliminates the need for a bind plug
• Lightweight hard case
• End-pin outputs for easy, compact installation
• Micro USB port for firmware updates via the Spektrum PC Programmer application

Smart Telemetry

The SR1015T integrates Smart Throttle on the throttle port. It can automatically detect a Smart throttle ESC and operate in Smart mode, and when used with Spektrum Smart LiPo batteries featuring IC series connectors, battery data can be passed through. If a standard ESC or servo is used on the throttle port, the receiver operates in a conventional manner.

10 Channels For Expanded Control

With 10 channels available, you can assign auxiliary functions such as winches, lights, overdrive, ESC auxiliary, and dig for more refined vehicle control.

Convenient Binding And Setup

A top-located bind button simplifies binding, with two bind-sequence options letting you bind while powering up or after power is connected. The long antenna aids placement in low-slung chassis, while the end-pin layout and hard case help streamline installation and durability.
