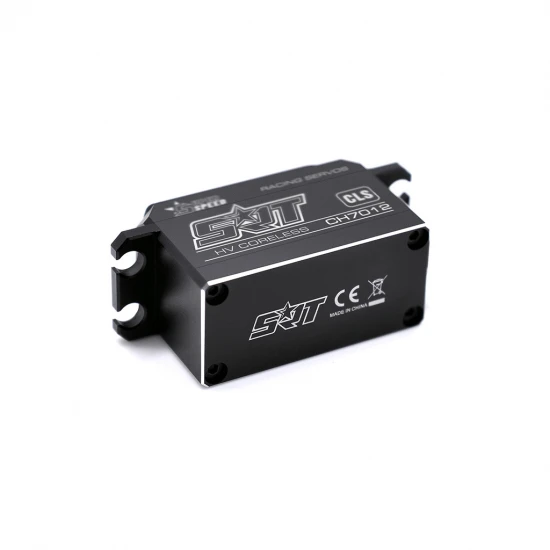

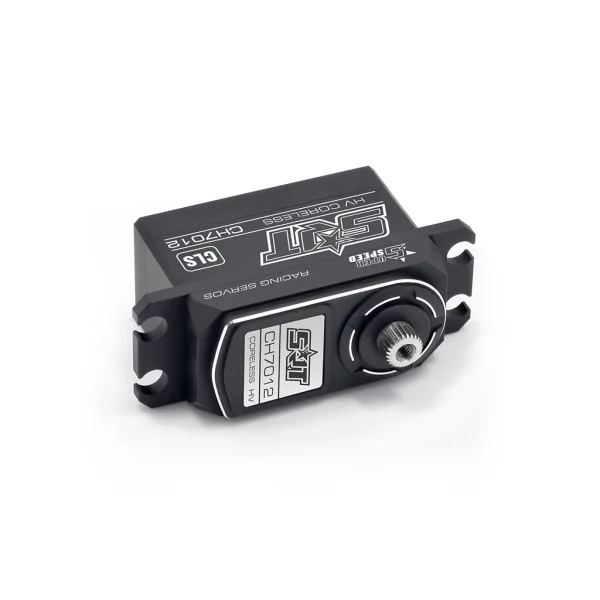

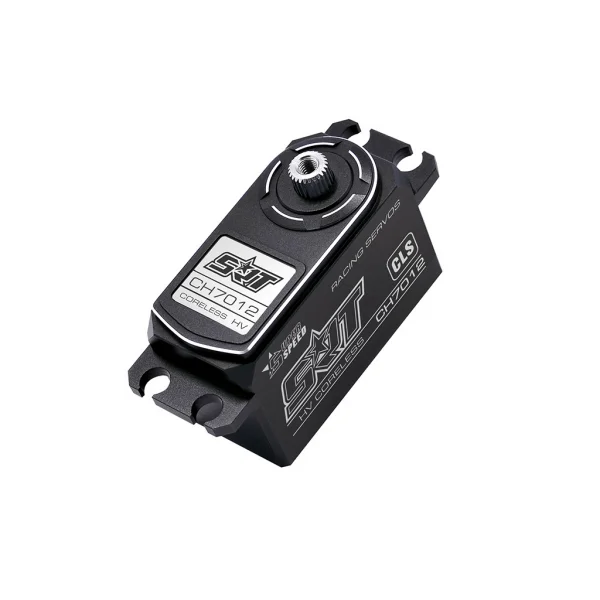

SRT CH7012 1:10 Scale On-Road HV Servo

The SRT CH7012 is a high-voltage, standard-size digital servo engineered for precise on-road control. Combining a coreless motor with titanium and aluminium gears and a CNC-machined aluminium case, it delivers fast response, strong holding power and excellent thermal performance in a compact 1/10 footprint. Part number: SCH-SRTCH7012.

Suggested Compatibility

• 1/10 electric touring
• 1/10 Formula One

Key Features

• Incredible efficiency with low power consumption
• Titanium & aluminium metal gears for precision and durability
• Standard-size footprint for on-road installations
• CNC-machined aluminium case for exceptional cooling
• HD 4096 resolution for fine control
• 2 μs dead band
• Superior holding torque
• Digital control with coreless motor and dual bearings
• 1-year limited warranty

Specifications

• Type: Digital
• Motor: Coreless
• Bearings: Dual
• Gear type/material: Metal (Titanium & Aluminium)
• Control system: Pulse width control
• Working frequency: 1520 μs / 330 Hz
• Operating voltage: DC 6.0–8.4 V
• Operating temperature: -10 to +60 °C
• Speed (6.0 V): 0.07 s/60° (no load)
• Speed (7.4 V): 0.06 s/60° (no load)
• Speed (8.4 V): 0.057 s/60° (no load)
• Stall torque (6.0 V): 9.0 kg·cm (124.9 oz·in)
• Stall torque (7.4 V): 11.0 kg·cm (152.8 oz·in)
• Stall torque (8.4 V): 12.0 kg·cm (166.6 oz·in)
• Potentiometer drive: Direct drive
• Dimensions: 41.0 × 20.0 × 26.4 mm (1.61 × 0.79 × 1.04 in)
• Weight: 52.0 g (1.83 oz)
• Connector/wire length: JR, 180 mm
