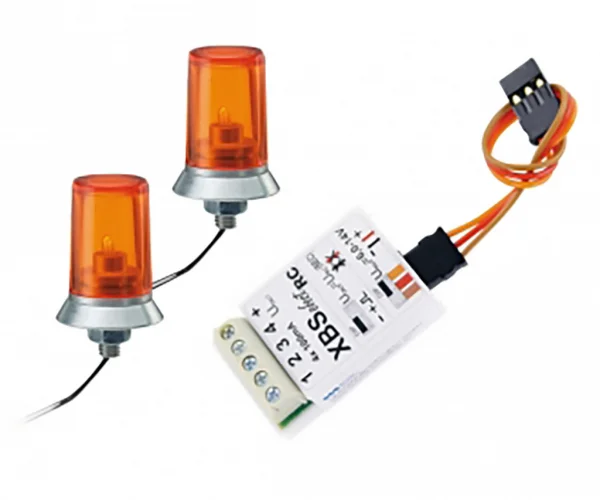

Carson Tamiya Orange Flashing Light 15X10mm (2)-HC-C907125

The Carson Tamiya Orange Flashing Light 15X10mm (2) (HC-C907125) is a pair of roof-mount beacons with integrated SMD flashing electronics. Four LEDs flash in sequence to create a realistic rotating beacon effect. Each unit can be angled by up to 5° using the supplied base, helping alignment on curved or sloped cabs. Control is via the included electronics board and a free switching channel on the receiver.

Designed for compact installation, the set arrives ready-wired and includes a Graupner-J/R connection cable for straightforward hookup.

Key Features

• SMD flashing electronics with four LEDs creating a rotating beacon effect
• Base allows up to 5° mounting angle for flexible positioning
• Controlled via SMD electronics and a free switching channel on the receiver
• Ready-wired circuit board with heat-shrink sleeve
• Graupner-J/R connection cable included

What’s Included

• 2 beacons (base Ø 14.5 mm, height with socket 15 mm)
• Circuit board wired ready for connection with heat-shrinkable sleeve
• Graupner-J/R connection cable

Dimensions

• Beacon base diameter: 14.5 mm
• Beacon height with socket: 15 mm
• Electronics board: 37 × 30 × 5 mm

Suggested Compatibility

• Driver’s cabs on construction vehicles
• Heavy-duty tractors
• Superstructures
• Trailers
