Tamiya VW Split Screen Type 2 T1 Bus (M-06)
Brand: Tamiya
Part No: HC-58668
Out Of Stock
Request Stock NotificationAdd a radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
ET1060
SCH-EP3000S
HD-1812MG
ORI30198DNS
Saves £29.19 over RRP
Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.
HPI-101939
ET1060
VZ0025
ET0208
SAV-SW0231MG+
Saves £34.97 over RRP
The Tamiya VW Split Screen Type 2 T1 Bus (M-06), part number HC-58668, recreates the iconic first-generation Volkswagen Bus in detailed 1/10 scale. Its accurately moulded polycarbonate "23-window" body captures the classic lines and charm, mounted on Tamiya’s well-regarded rear-wheel drive M-06 chassis for authentic, enjoyable road performance.
With a rear-mounted motor and a low centre of gravity, the M-06 layout delivers predictable traction and poised handling. R/C gear is positioned for balanced weight distribution, while independent double wishbone suspension and a 3-piece steering linkage provide responsive control on tarmac and other smooth surfaces.
Key Features
- Detailed 1/10 polycarbonate VW Type 2 T1 23-window body
- Rear-mounted motor, rear-wheel drive M-06 chassis for balanced handling
- Independent double wishbone suspension with friction dampers
- Classic dish wheels with plated components; rim sections can be painted with TS-26 Pure White
- 60D radial front tyres and 60D super grip rear tyres
- Light buckets accept separately sold LEDs for front and rear lights; separate turn signal parts
- Separate parts depict distinctive round side mirrors with slim stalks; separate rear bumper part
- 3-piece steering linkage for nimble response
- Adjustable platform with three wheelbase options (239 mm for this body)
- Includes Tamiya TBLE-02S ESC supporting brushed and sensored brushless motors (21.5T BL / 23T brushed limits)
- Type 540 motor
Specifications
- Length: 426 mm | Width: 195 mm | Height: 177 mm
- Wheelbase: 239 mm
- Tread (F/R): 138 mm
- Drive: Rear-motor, rear-wheel drive
- Differential: 3-bevel gear
- Steering: 3-piece tie-rod linkage
- Suspension: 4-wheel independent double wishbone
- Dampers: Front/rear friction
- Gear ratio: 5.8:1
- Tyre width/diameter (F/R): 25 mm / 59 mm
- Motor: Type 540
- ESC: Tamiya TBLE-02S
Separately Required Items
- 2-channel R/C system
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
Secured by Stripe
A True Legend

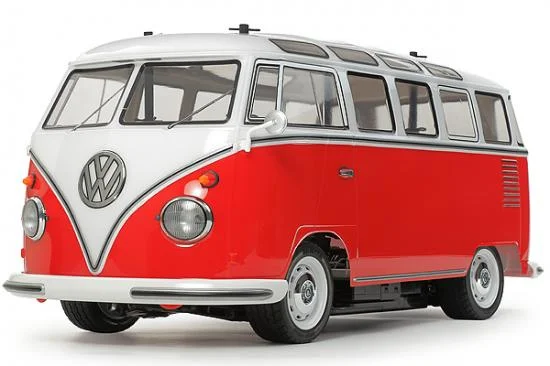

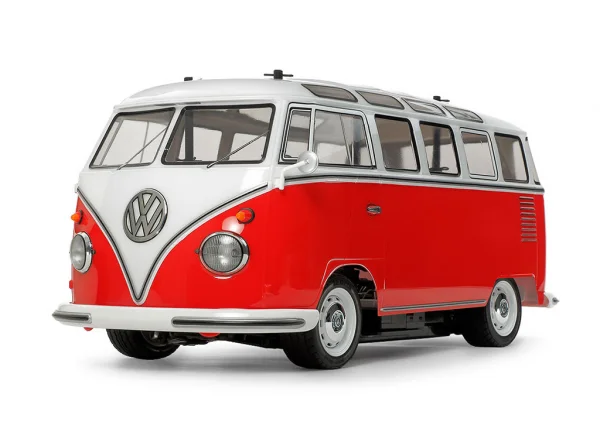

This R/C model assembly kit recreates the “23-window” type of the much-loved first generation (T1) Volkswagen Type 2, known as the Volkswagen Bus to many of its legions of fans, with an accurate polycarbonate body in detailed 1/10 scale. Combined with classic style wheels and tread patterned tires, it is mounted on the rear-wheel drive M-06 chassis.
Great RR Performance from the M-06
The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included.

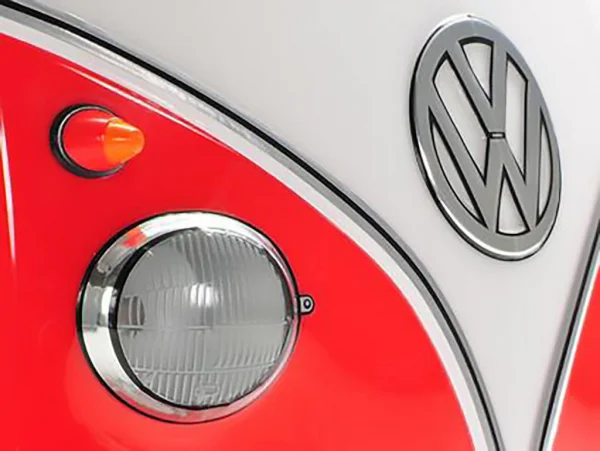

- Intall separately sold LEDs in the front and rear lights for super realism! Turn signals are separate parts.

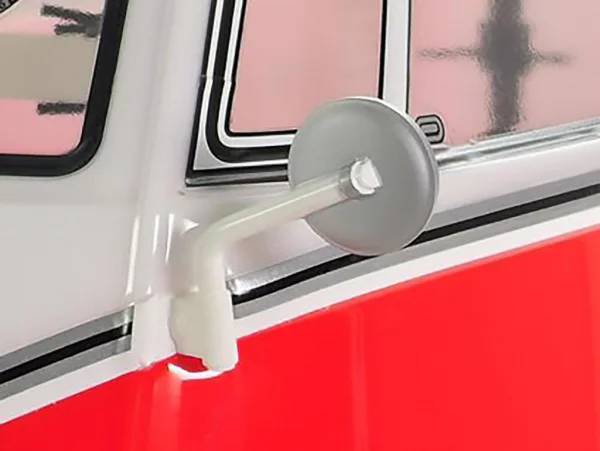

- Separate parts are also employed to depict the distinctive round side mirrors and their slimline stalks.

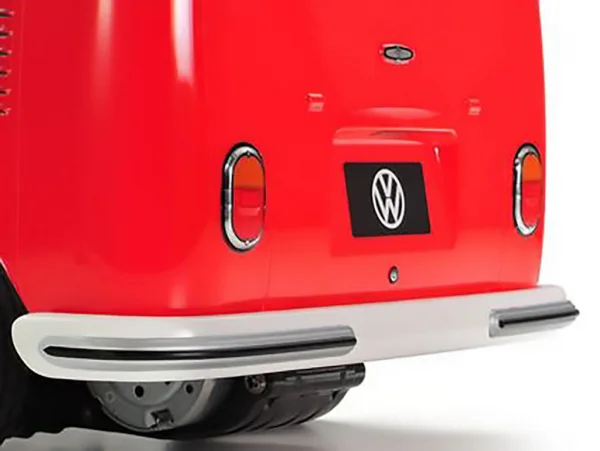

- The rear of the model also shows off excellent attention to detail, including a separate bumper part.

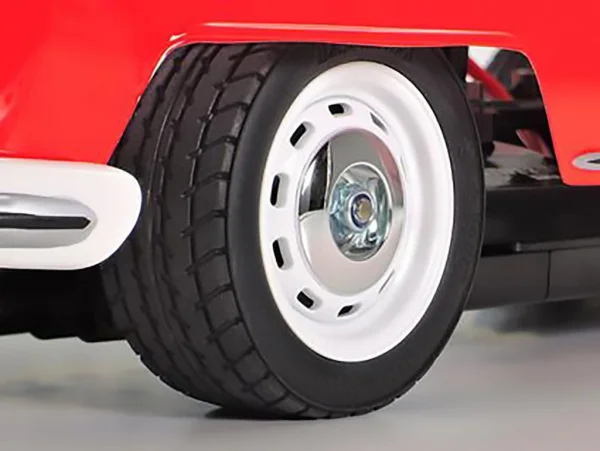

- Dish wheels feature gleaming plated components. Paint the rim sections with TS-26 Pure white to finish.
- The rear-mounted motor, rear-wheel drive setup provides the model with excellent traction at the rear.
- Three different wheelbase lengths are accessible by switching the position of rear section parts.
Specifications
- Length: 426mm, Width: 195mm, Height: 177mm
- Wheelbase: 239mm
- Tread (F/R): 138mm
- Rear-Motor, Rear-Wheel Drive
- 3-Bevel Differential Gear
- 3-Piece Steering Tie-Rod
- 4-Wheel Independent Double Wishbone Suspension
- F/R Friction Dampers
- Gear Ratio = 5.8:1
- Tire Width/Diameter (F/R): 25mm/59mm
- Type 540 Motor
- Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
Separately Required Items
- 2-Channel R/C System
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
Key Info:
- Brand: Tamiya
- Part No: HC-58668
- Barcode: 4950344065905
- Scale: 1:10
- Power Source: Electric - Brushed
- Surface Type: On Road
- Vehicle Type: Touring / Rally Car
- Build Level: Unassembled (Kit)
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
Tamiya Camper t1 bus. Great build. add the killer body light set and the thing looks great. You would never believe the stickers take so long, must be around 100 of them and you cannot see more than 5. Its all in the details.
